Disassembly And Assembly: Halfshaft: Material
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Specification |
| Constant Velocity Joint Grease (High Temperature) XG-5 |
WSS-M1C258-A1 |
Courtesy of FORD MOTOR CO.

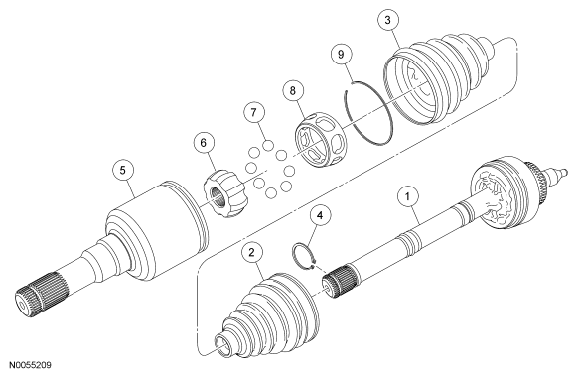

| Item |
Part Number |
Description |
| 1 |
3B436B |
Outboard CV joint and interconnecting shaft assembly |
| 2 |
3A331A |
Outboard CV boot |
| 3 |
3A331B |
Inboard CV boot |
| 4 |
4B422 |
Snap ring |
| 5 |
3B414 |
Inboard CV joint housing |
| 6 |
- |
Inner race (part of 3B436 RH/3B437 LH) |
| 7 |
- |
Ball (8 required) (part of 3B436 RH/3B437 LH) |
| 8 |
- |
Ball cage (part of 3B436 RH/3B437 LH) |
| 9 |
3B426 |
Retaining ring (part of 3B436 RH/3B437 LH) |
