Tie Rod - Inner: Notes
SPECIAL TOOLS
| Tie-Rod End Remover 211-105 (T85M-3395-A) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |
| Threadlock 262 TA-26 |
WSK-M2G351-A6 |

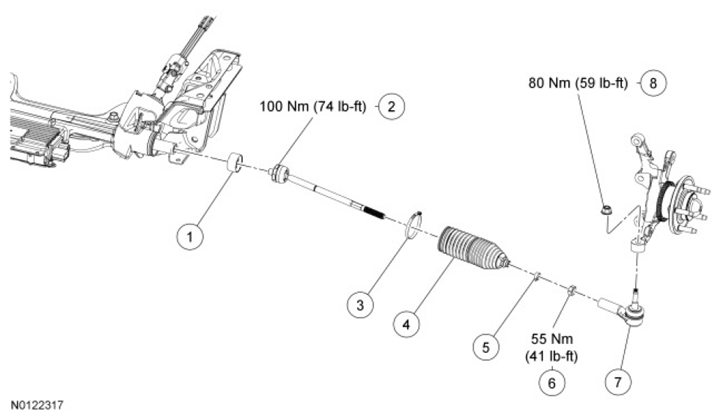

NOTE:
LH side shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Steering stop (part of 3280 tie rod kit) |
| 2 | - | Inner tie rod (part of 3280 tie rod kit) |
| 3 | - | Inner bellows boot clamp (part of 3280 tie rod kit or 3K661 boot kit) |
| 4 | - | Steering gear bellows boot (part of 3280 tie rod kit or 3K661 boot kit) |
| 5 | - | Outer bellows boot clamp (part of 3280 tie rod kit or 3K661 boot kit) |
| 6 | W713882 | Tie-rod jam nut |
| 7 | 3A130 | Outer tie-rod end |
| 8 | W705606 | Outer tie-rod end nut |
