Steering Column Shroud: Notes

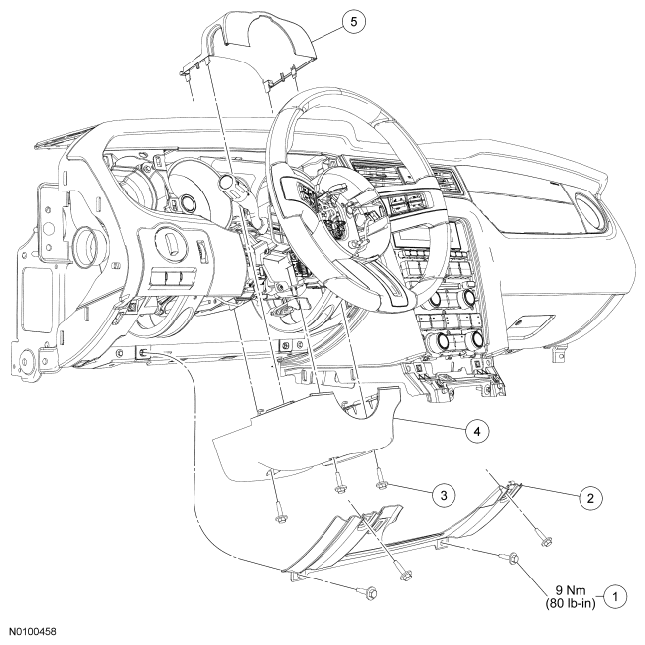

Fig 1: Steering Column Shroud Replacement Components With Torque Specifications
G06382253Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W505424 Steering column opening trim panel reinforcement bolt (4 required)
2 04502 Steering column opening trim panel reinforcement
3 W707281 Lower steering column shroud screw (3 required)
4 3530B Lower steering column shroud
5 3530A Upper steering column shroud
