Selector Lever: Installation

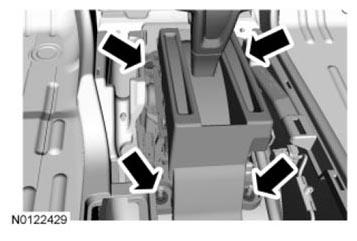

Position the selector lever assembly in the vehicle and install the 2 selector lever assembly nuts and the 2 selector lever assembly bolts.
- Tighten to 9 Nm (80 lb-in).

  Fig 1: Locating Selector Lever Assembly Nuts And Bolts
  Courtesy of FORD MOTOR CO.

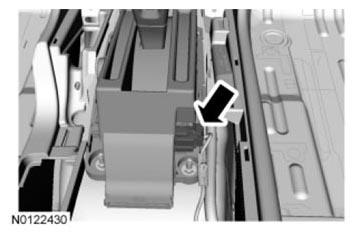

Connect the selector lever electrical connector.

Fig 2: Locating Selector Lever Electrical Connector
Courtesy of FORD MOTOR CO.

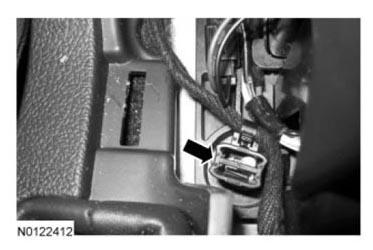

Attach the wiring harness retainer to the selector lever stud.

Fig 3: Locating Wiring Harness Retainer Of Selector Lever Stud
Courtesy of FORD MOTOR CO.

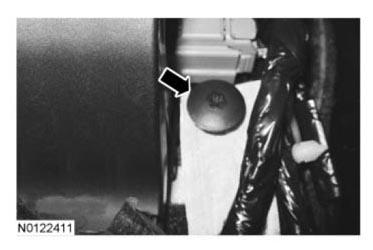

Position the carpet and install the carpet retainer to the selector lever stud.

Fig 4: Locating Carpet Retainer
Courtesy of FORD MOTOR CO.
Install the floor console finish panel.
- Connect the 2 ambient light electrical connectors, if equipped.
- Connect the traction/hazard/trunk switch electrical connector.

  Fig 5: Locating Floor Console Finish Panel
  Courtesy of FORD MOTOR CO.

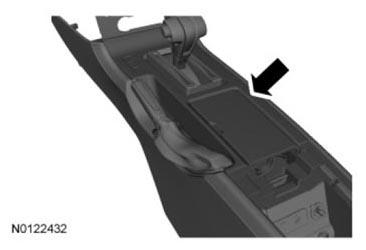

Close the storage compartment door.

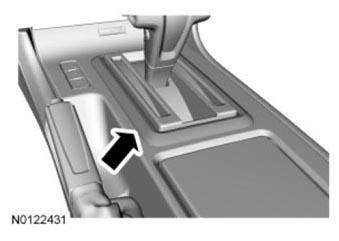

Install the selector lever bezel.

Fig 6: Locating Selector Lever Bezel
Courtesy of FORD MOTOR CO.

NOTE: It is necessary to install a new plastic selector lever cable retaining clip prior to installation.

Fig 7: Locating Selector Lever Cable Retaining Clip

Courtesy of FORD MOTOR CO.

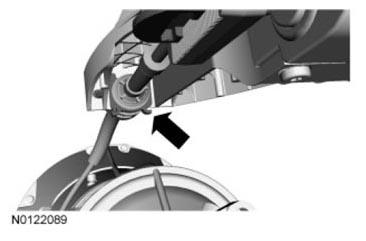

Install the selector lever cable into the selector lever cable bracket.
Connect the selector lever cable to the selector lever.

Fig 8: Locating Selector Lever Cable
Courtesy of FORD MOTOR CO.
Adjust the selector lever cable. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT .
