Wiper and Washer Systems




Wiper and Washer System - Exploded View

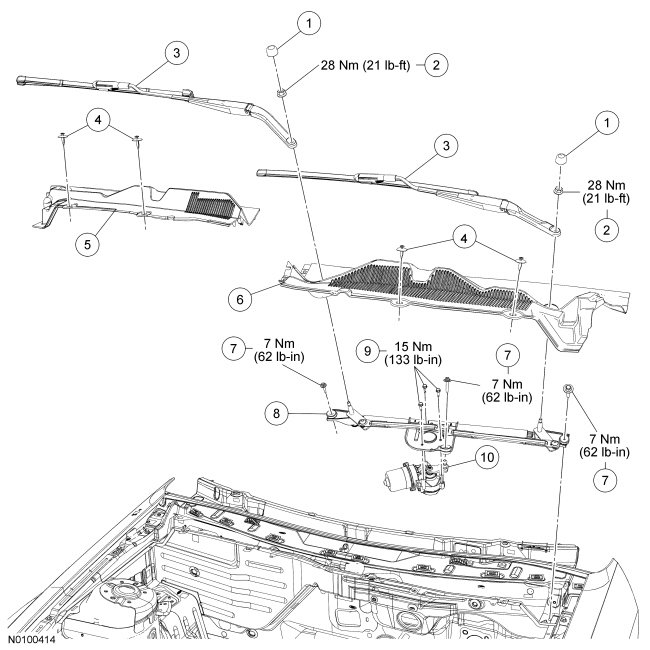

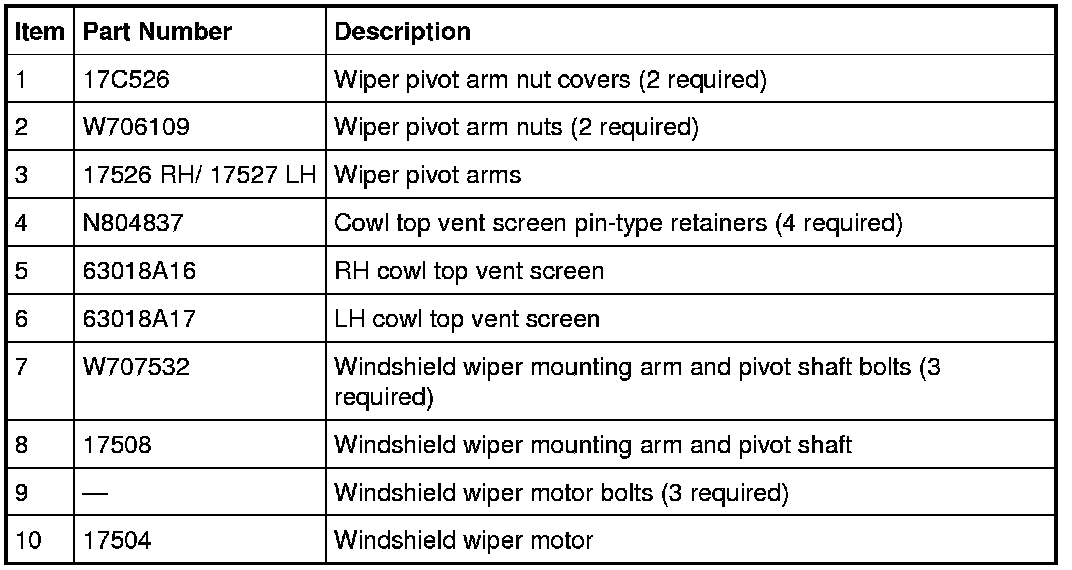

Windshield Wiper System

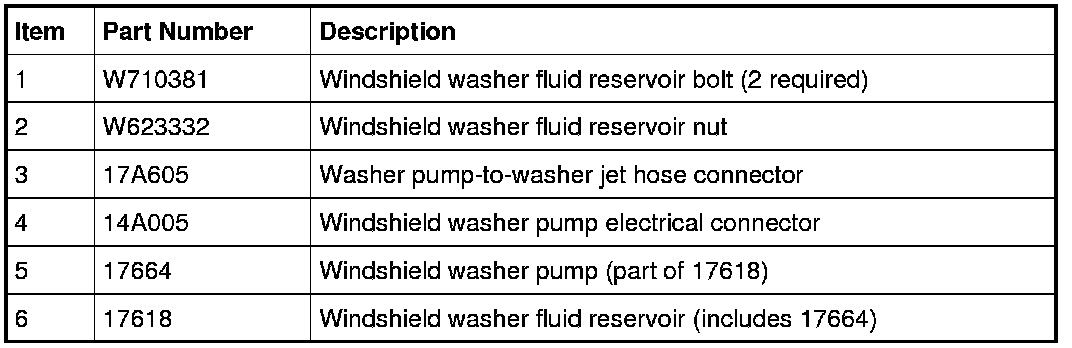

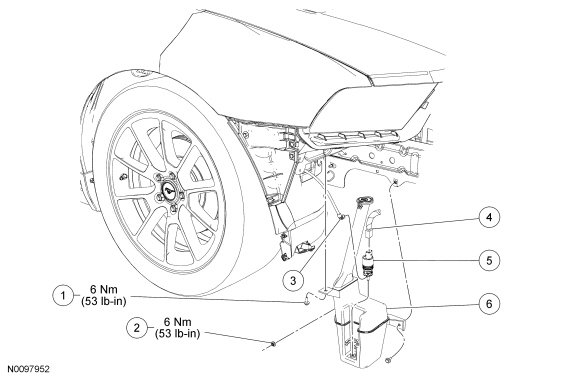

Windshield Washer Pump and Fluid Reservoir

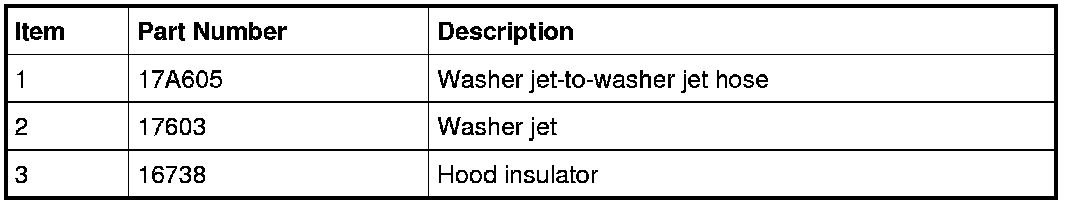

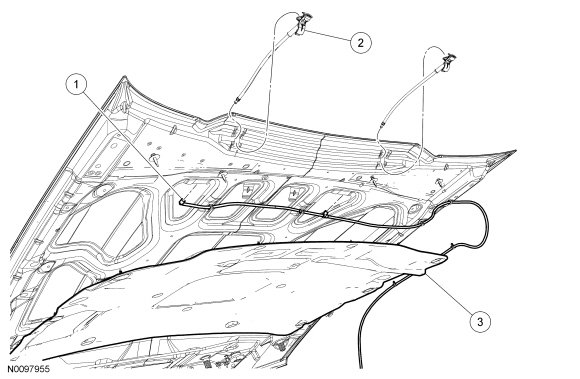

Washer Jet
