Connector Locations

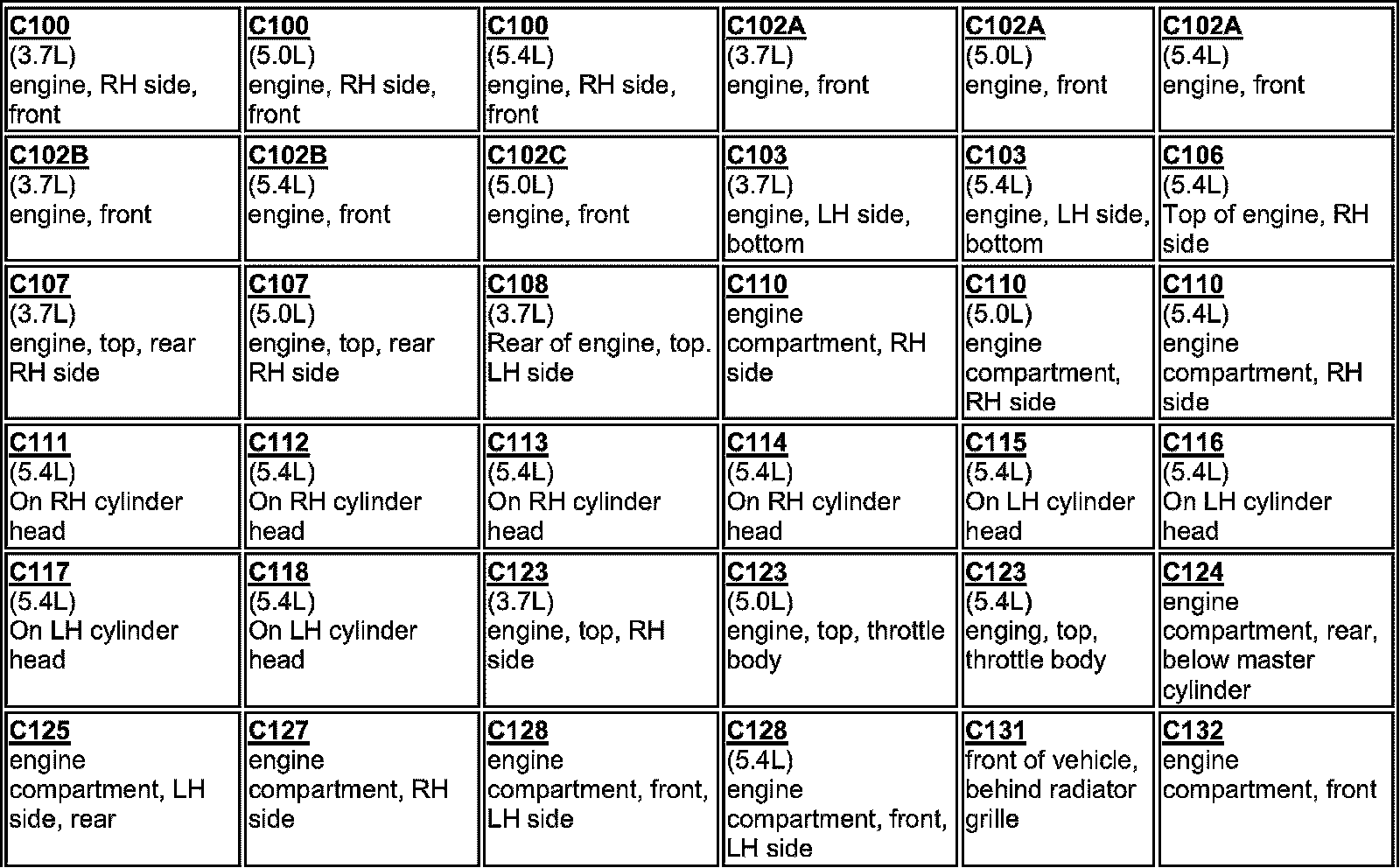

C100-C132:

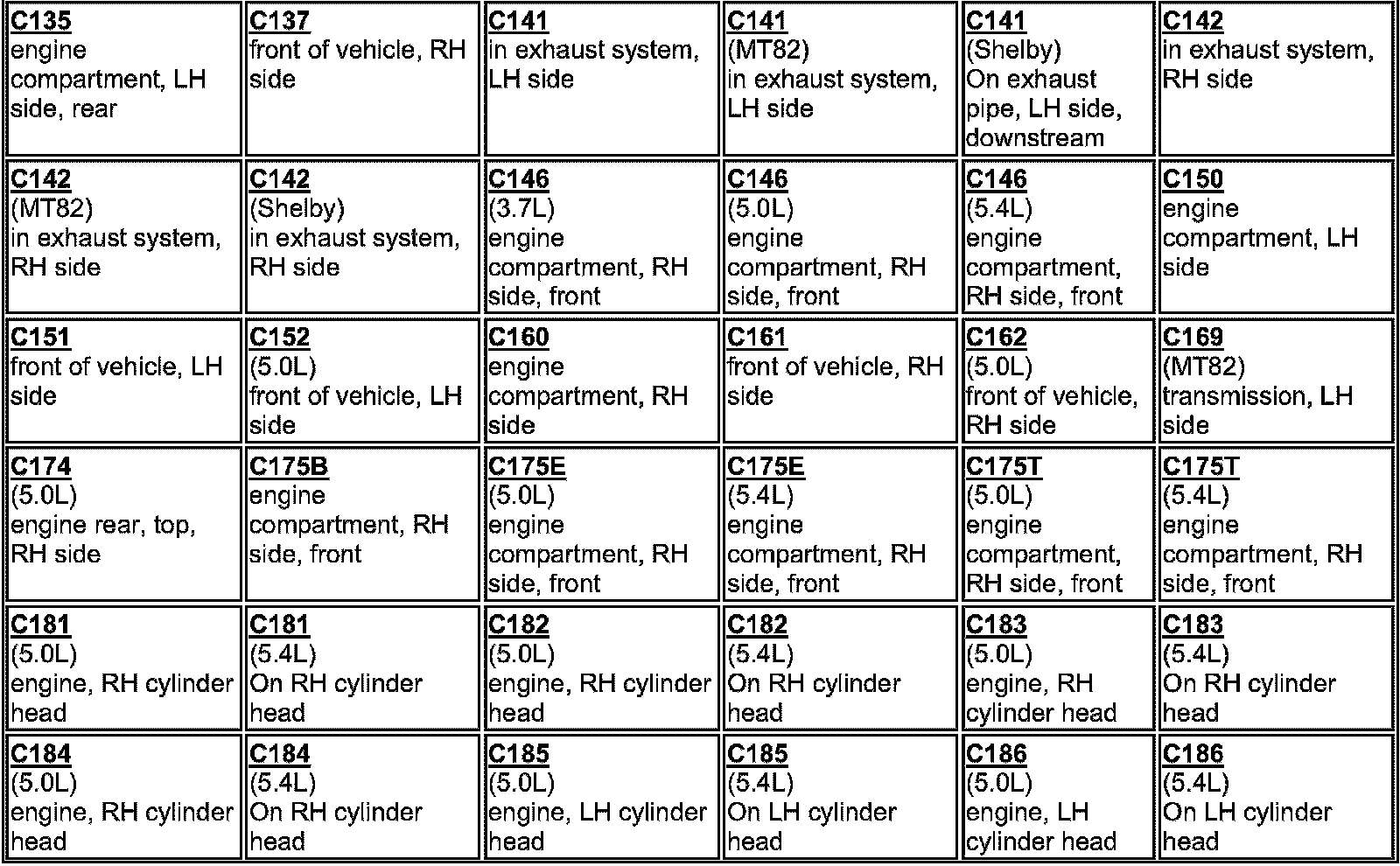

C135-C186:

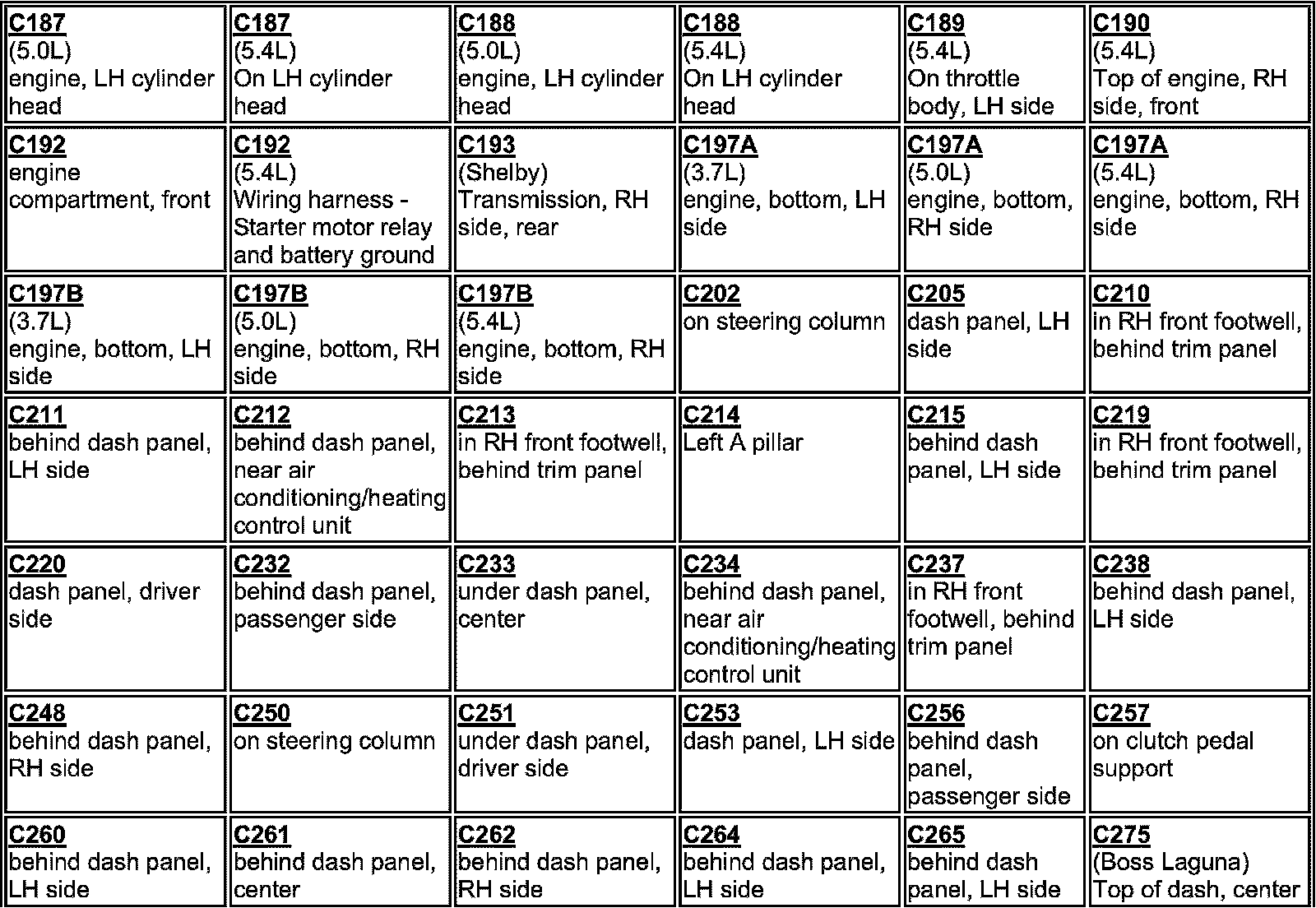

C187-C275:

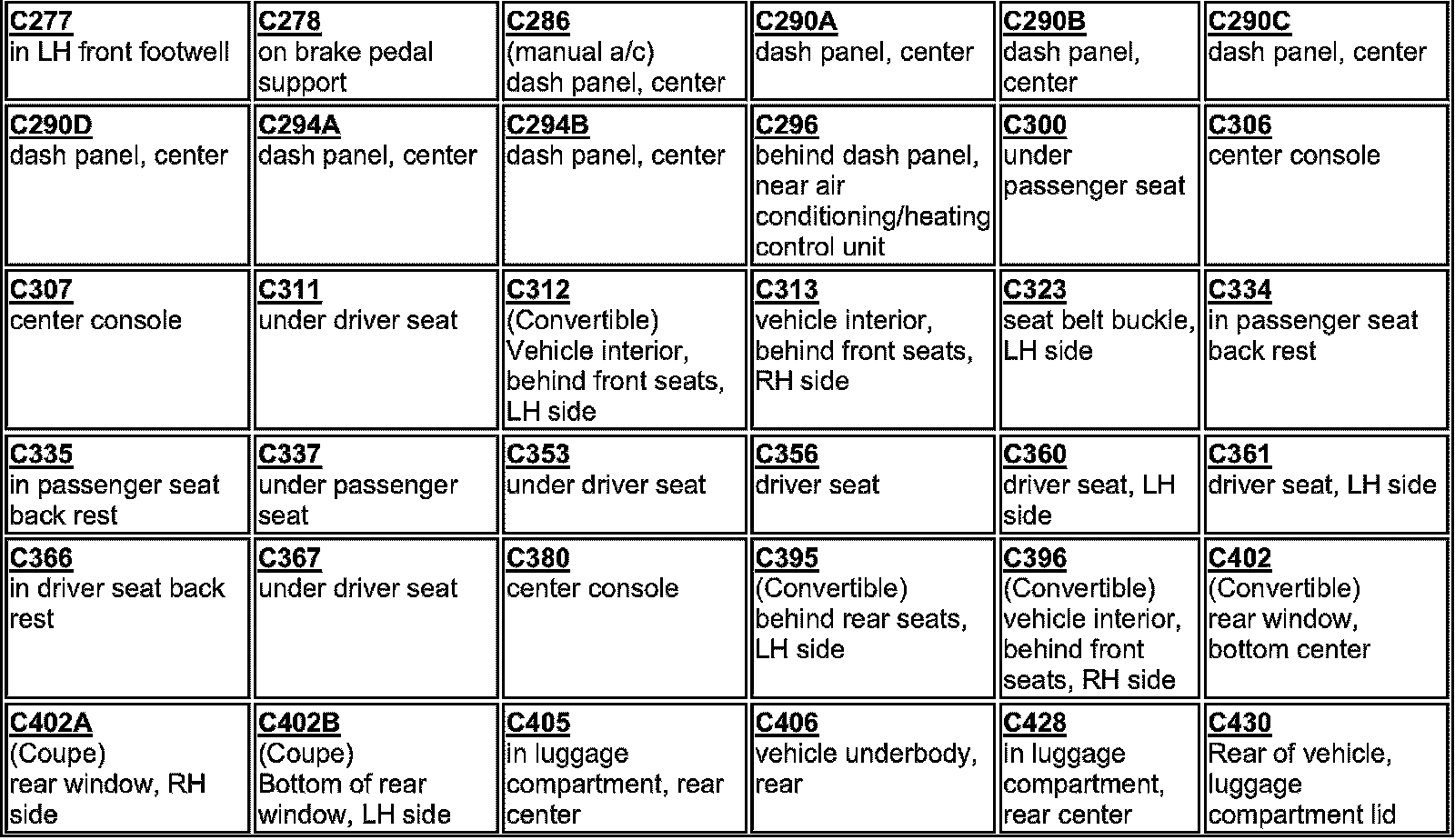

C277-C430:

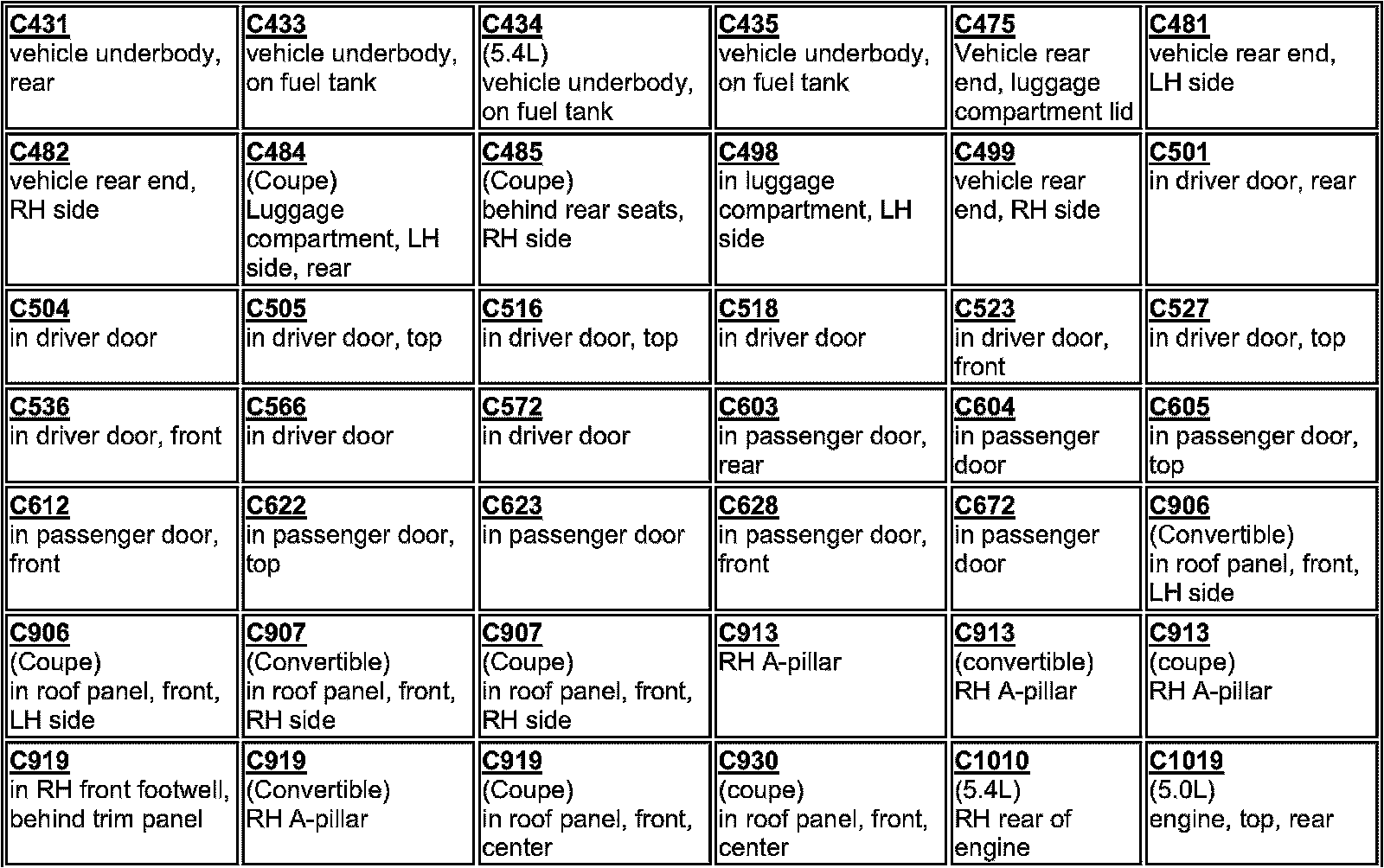

C431-C913:

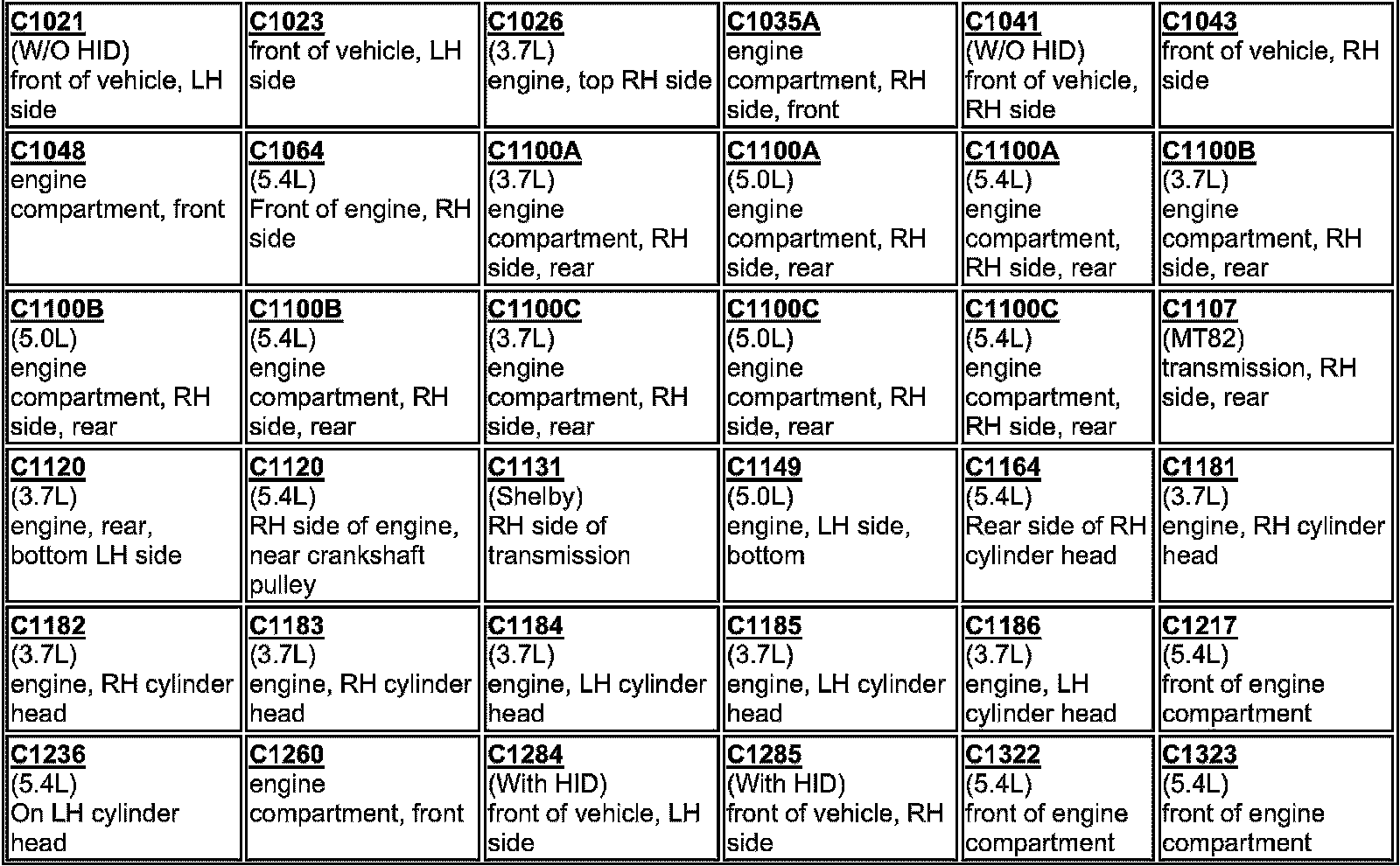

C1021-C1323:

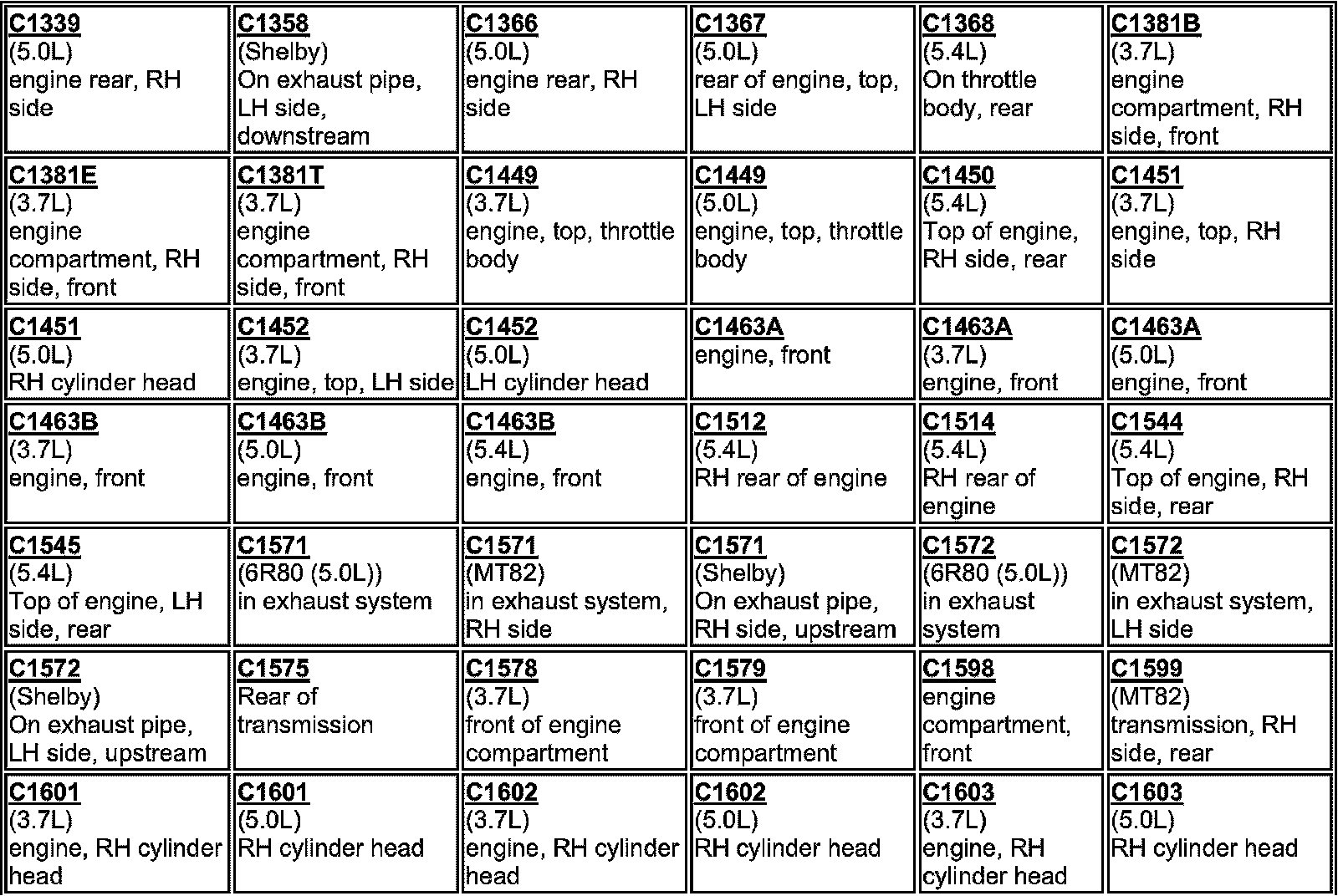

C1339-C1603:

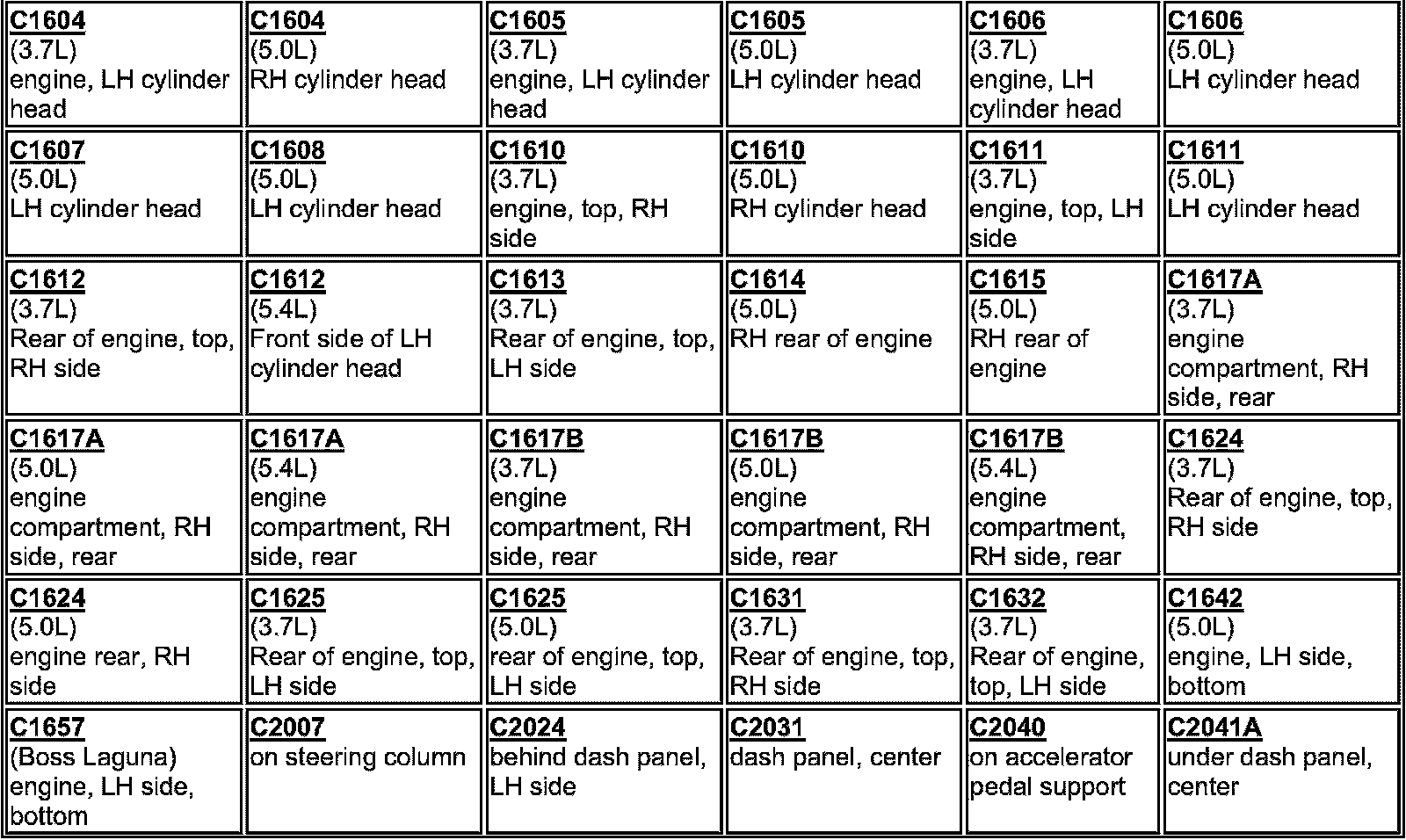

C1604-C2041A:

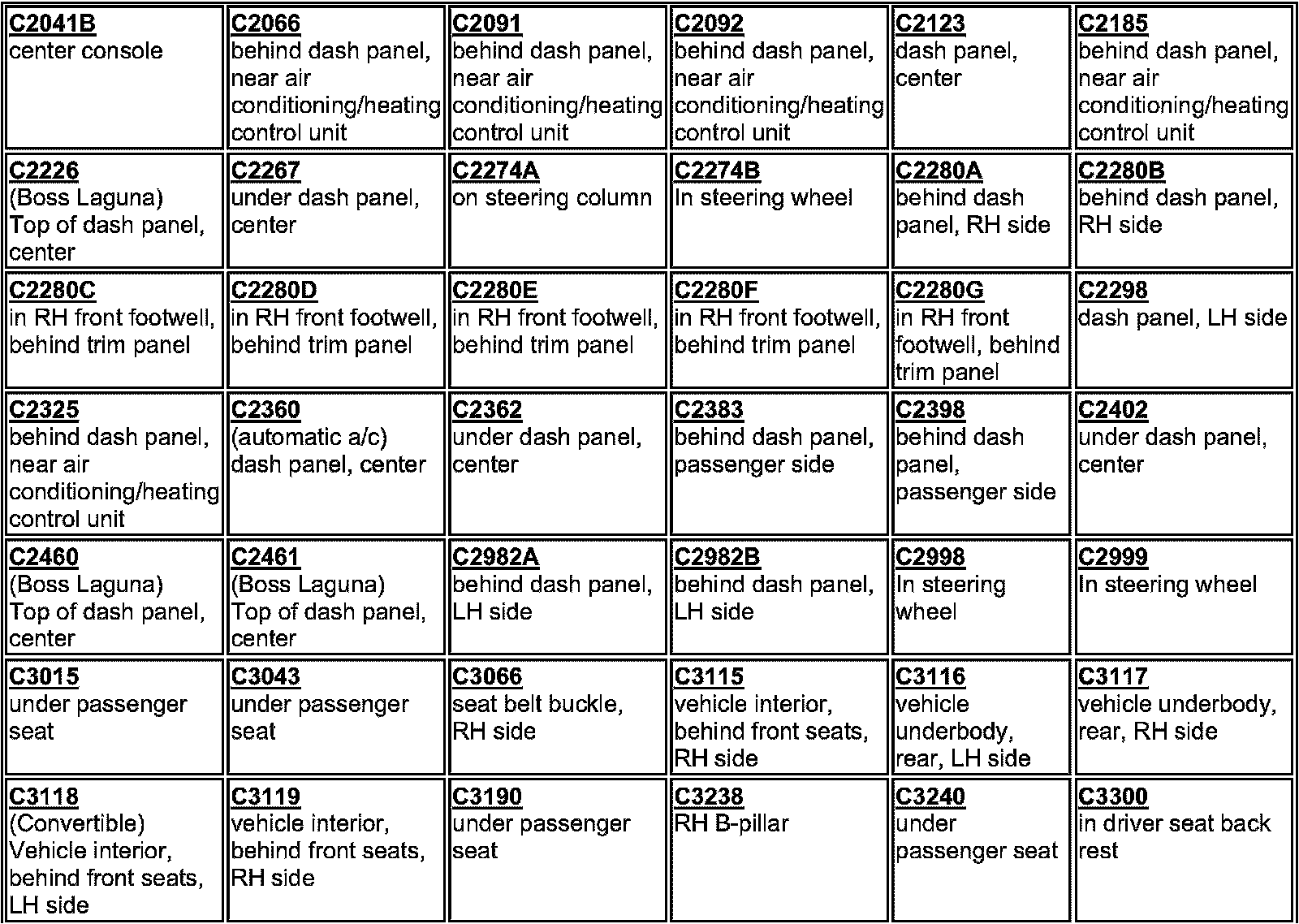

C2041B-C3300:

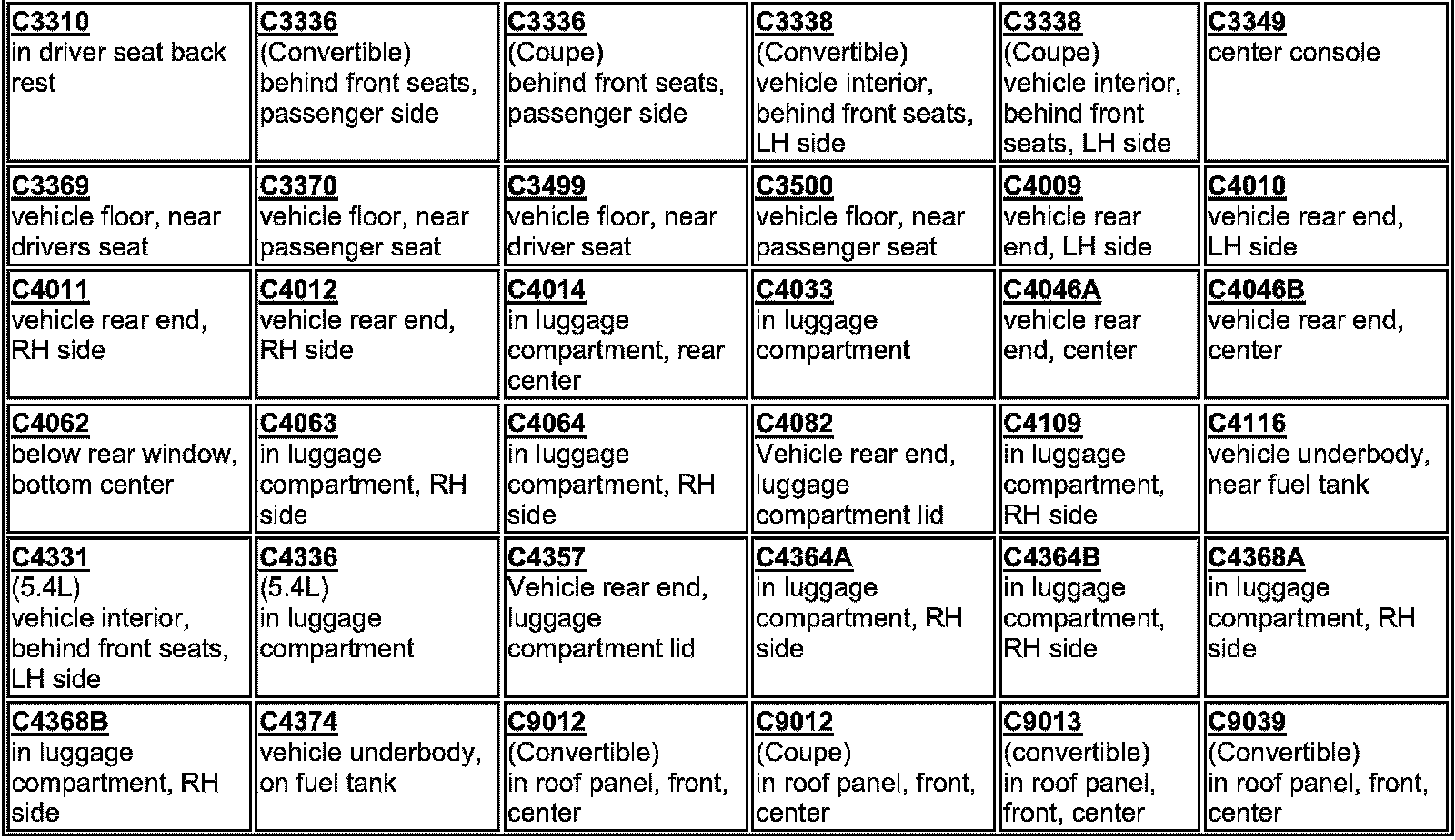

C3310-C9039:

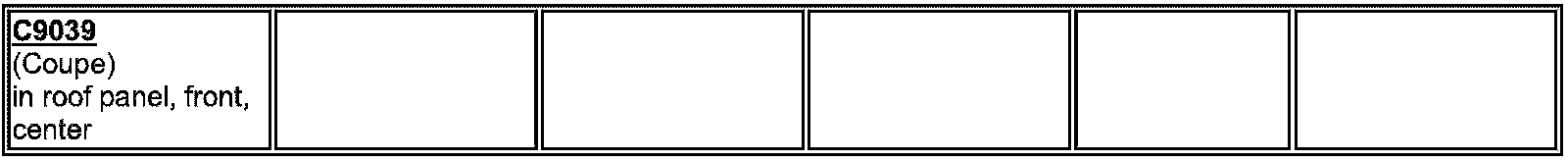

C9039:
