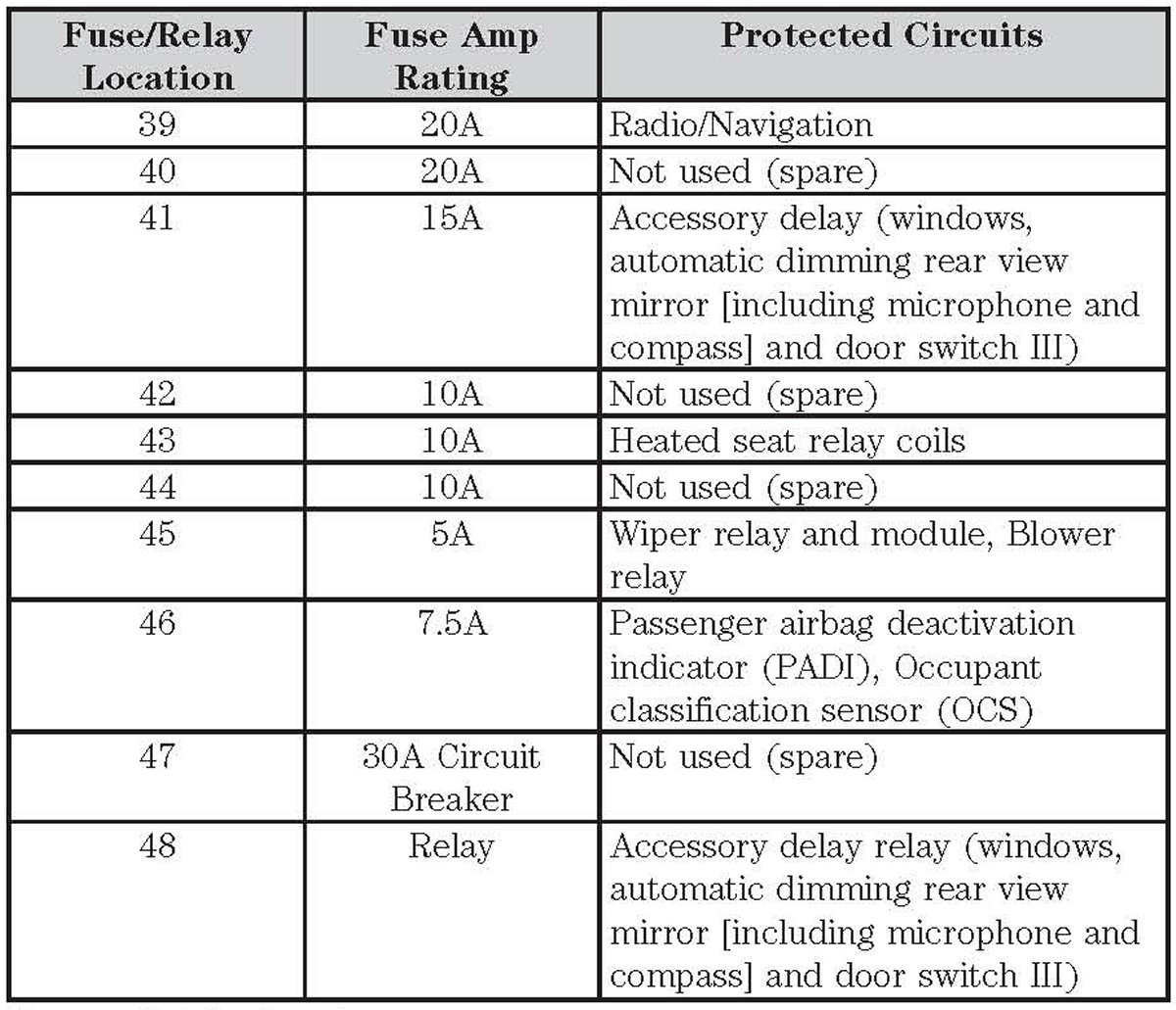

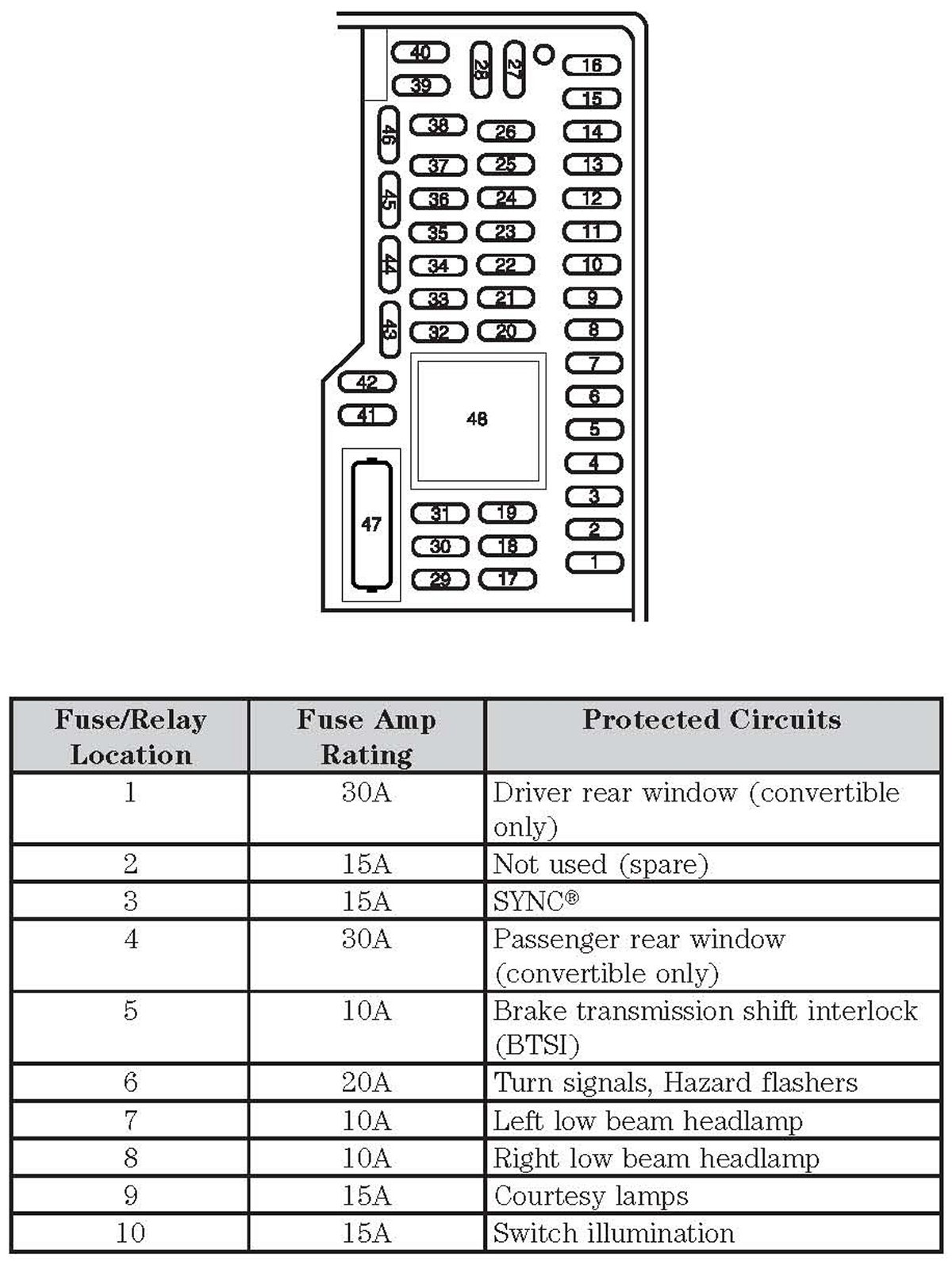

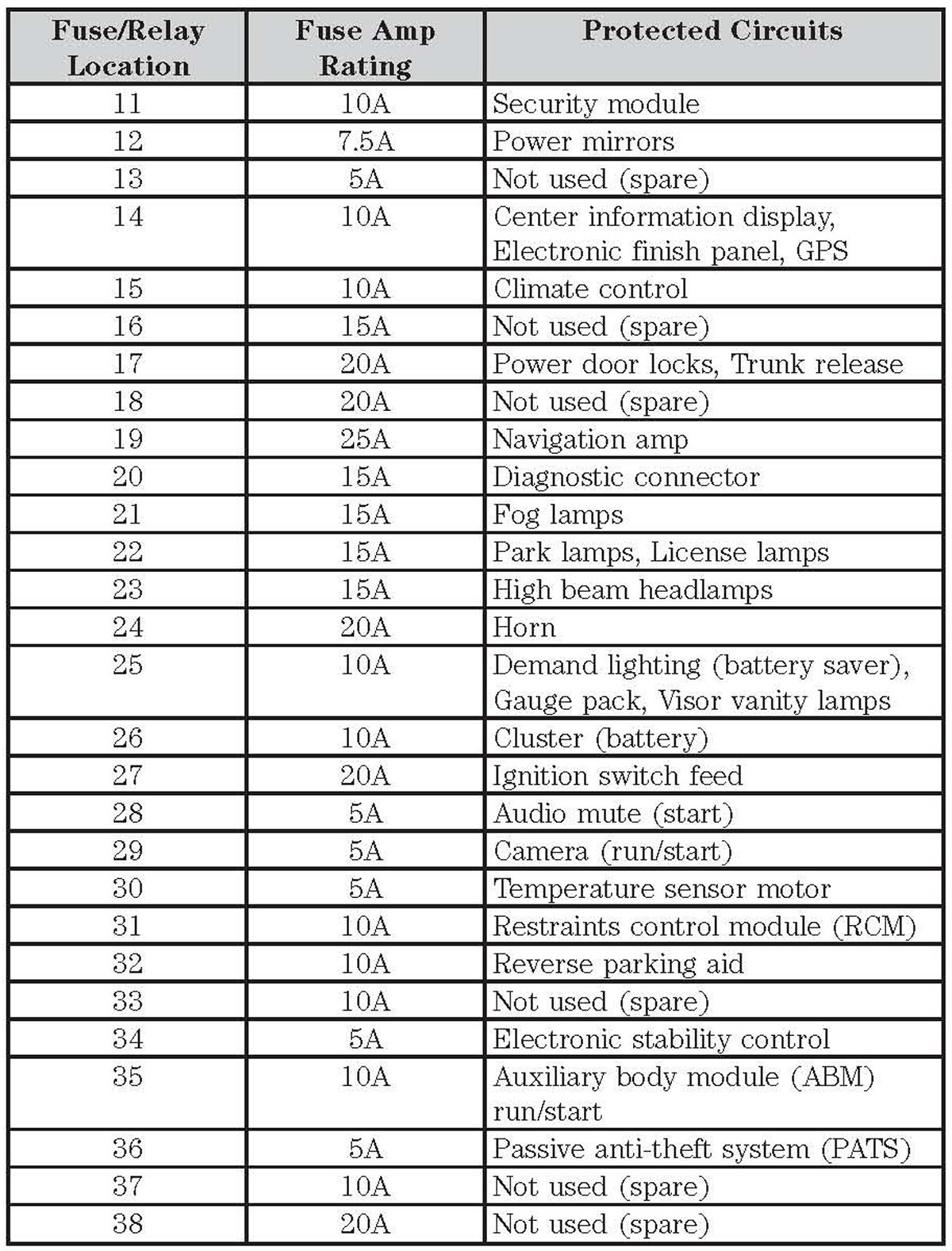

Passenger Compartment Fuse Panel



The Passenger Compartment Fuse Panel is located in the lower passenger side area behind the kick panel.
