Vehicles That Do Not Start

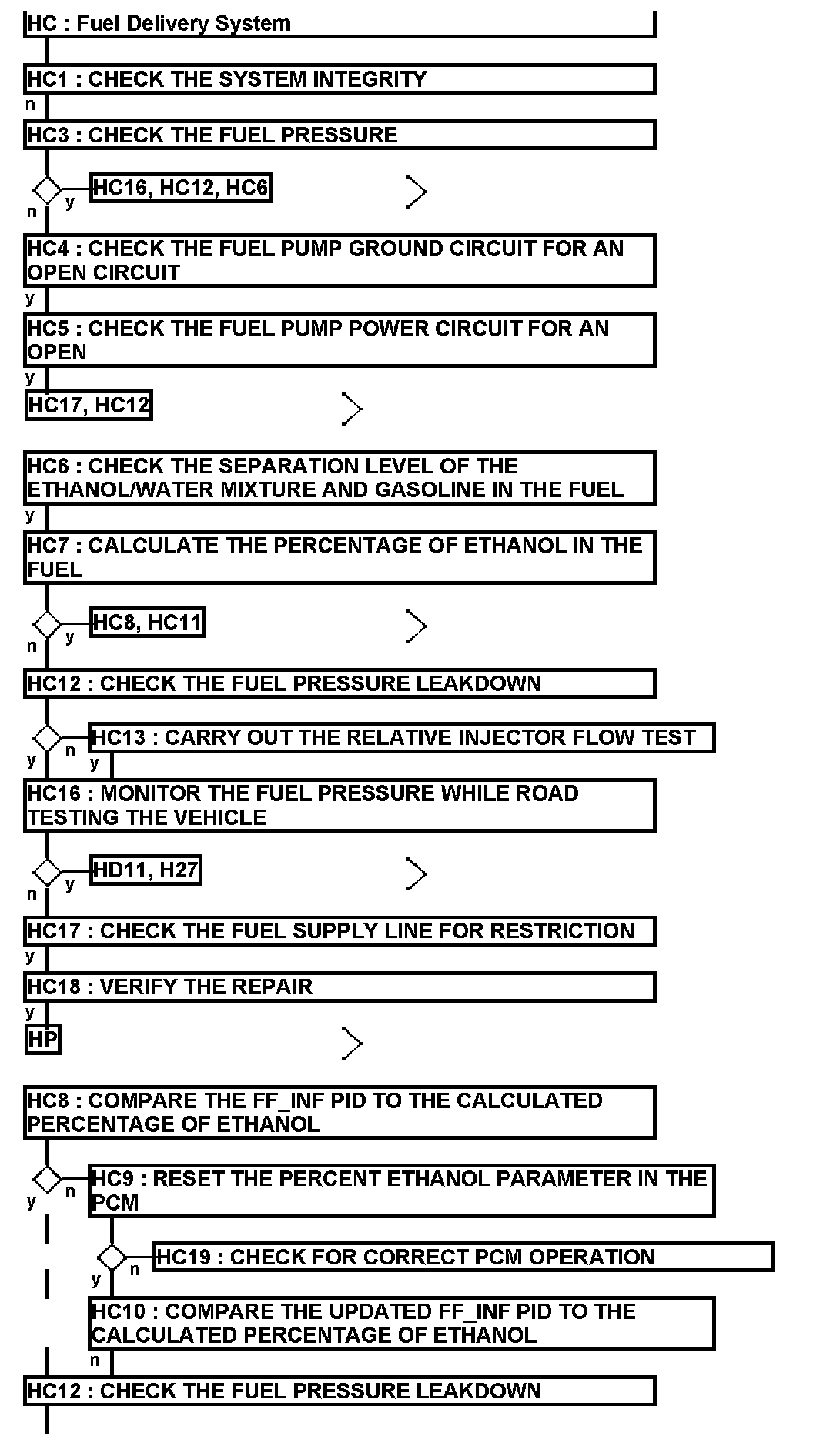

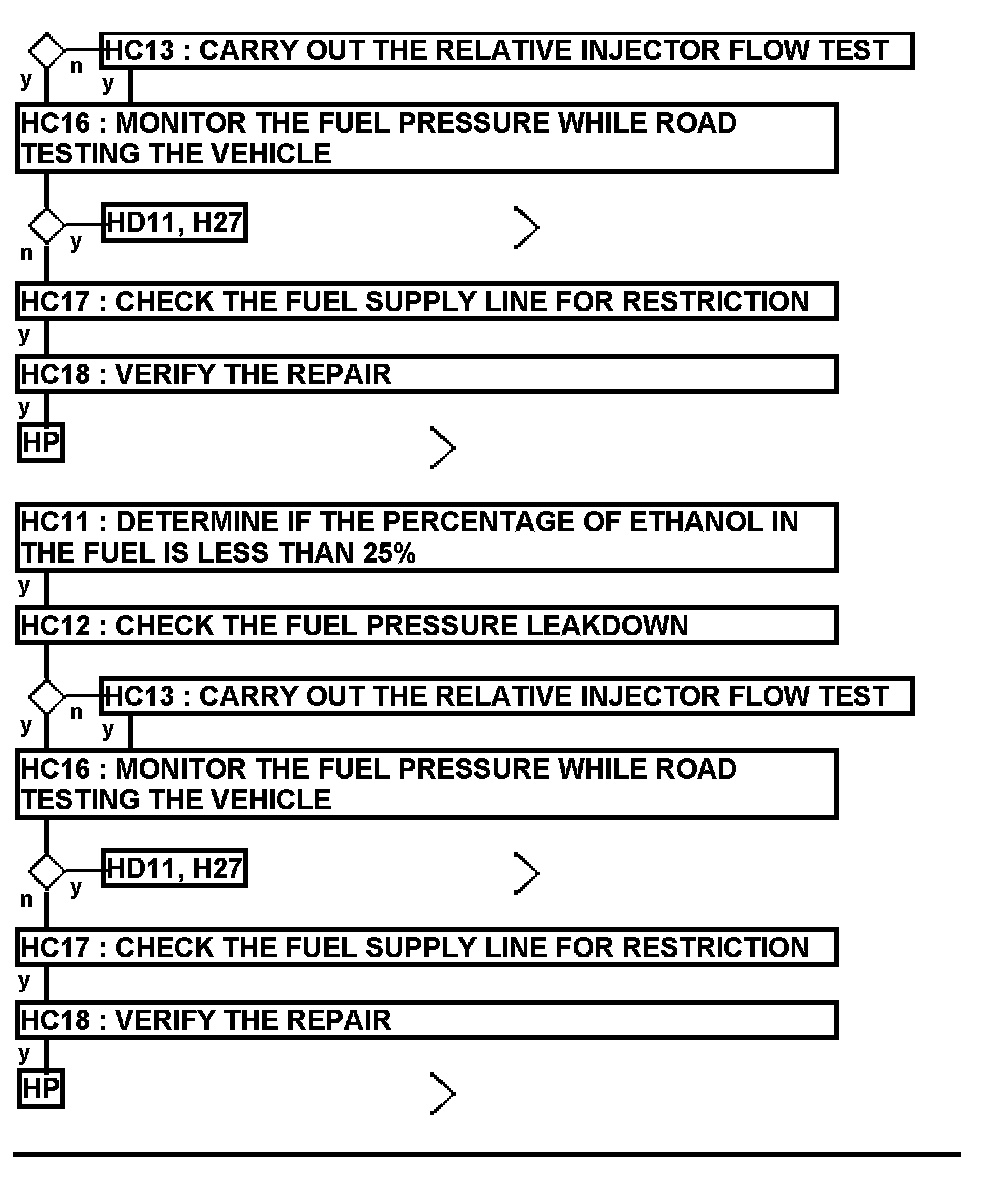

Fuel Delivery System - Vehicles that don't start

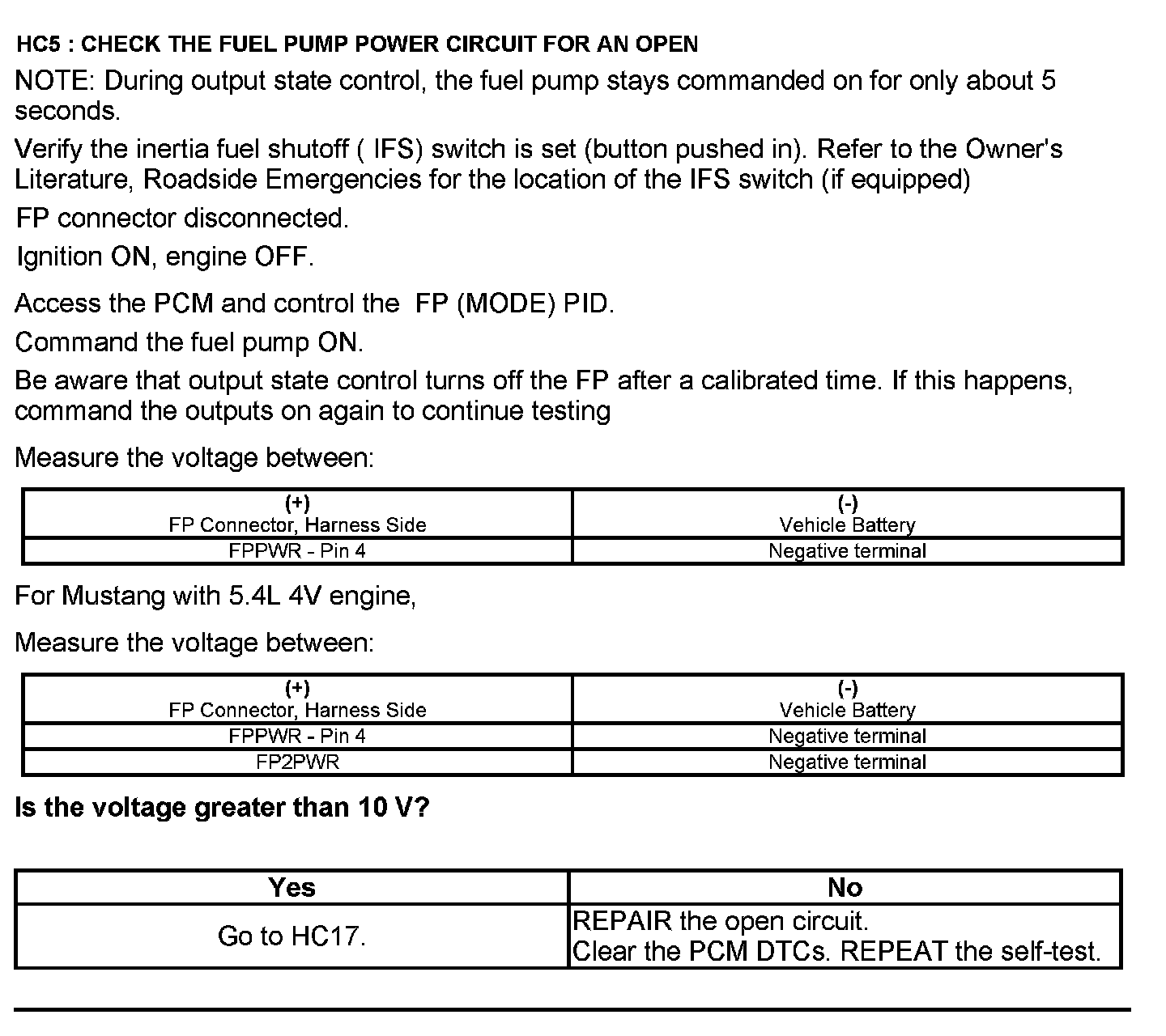

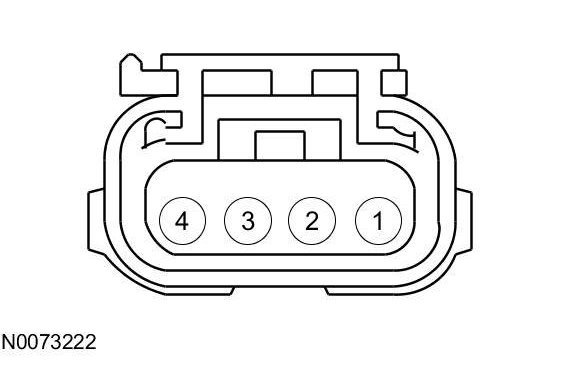

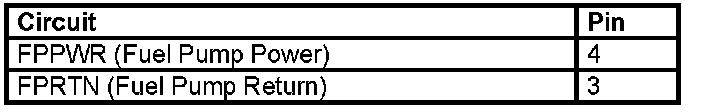

Fuel Pump (FP) Connector





Harness Side
