Home >> Ford >> 2012 >> Taurus AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Driver/Vehicle Information Display >> C253 Message Center Switch
April 5, 2026: LEMON Manuals is launched! Read the announcement.

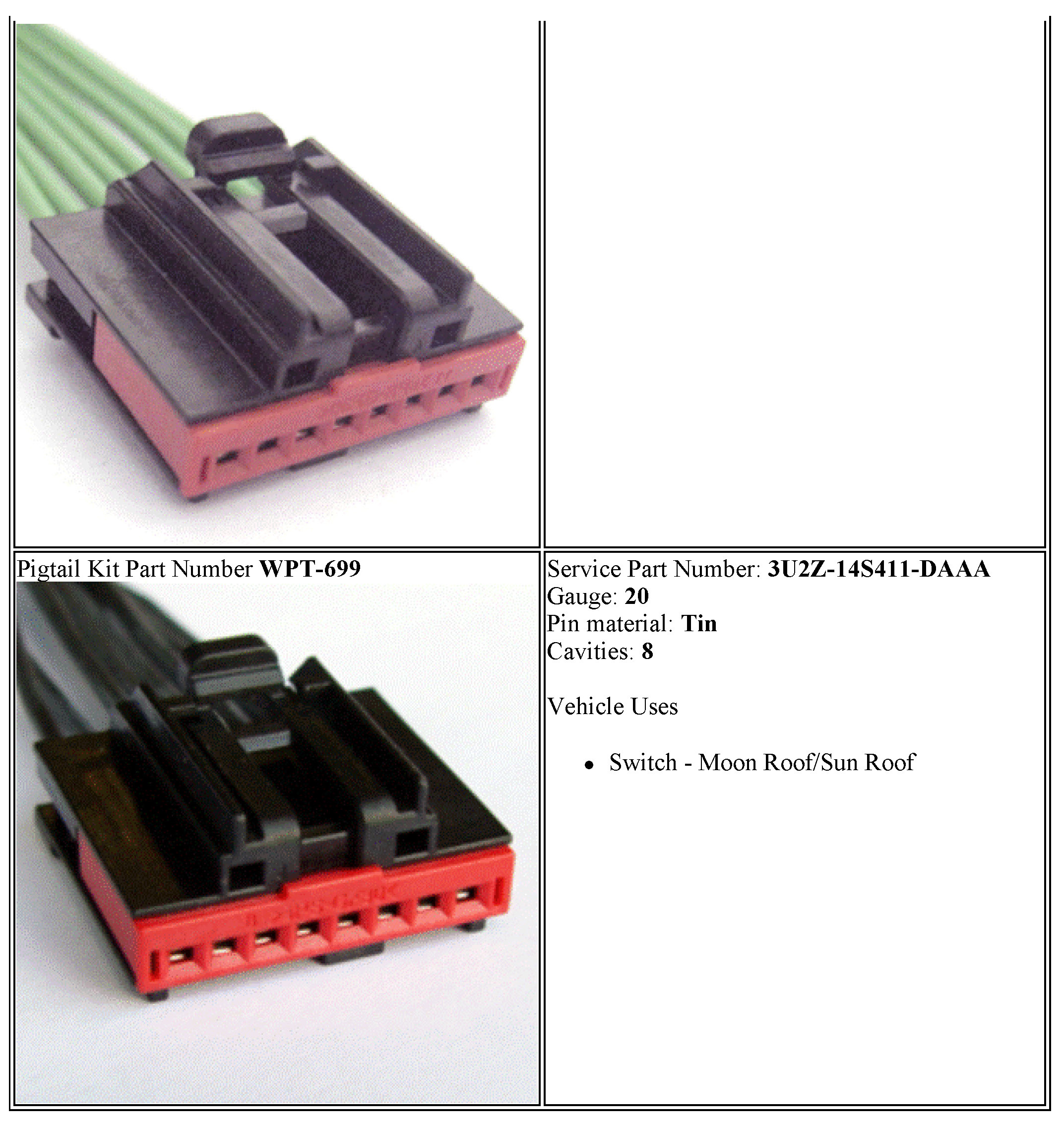

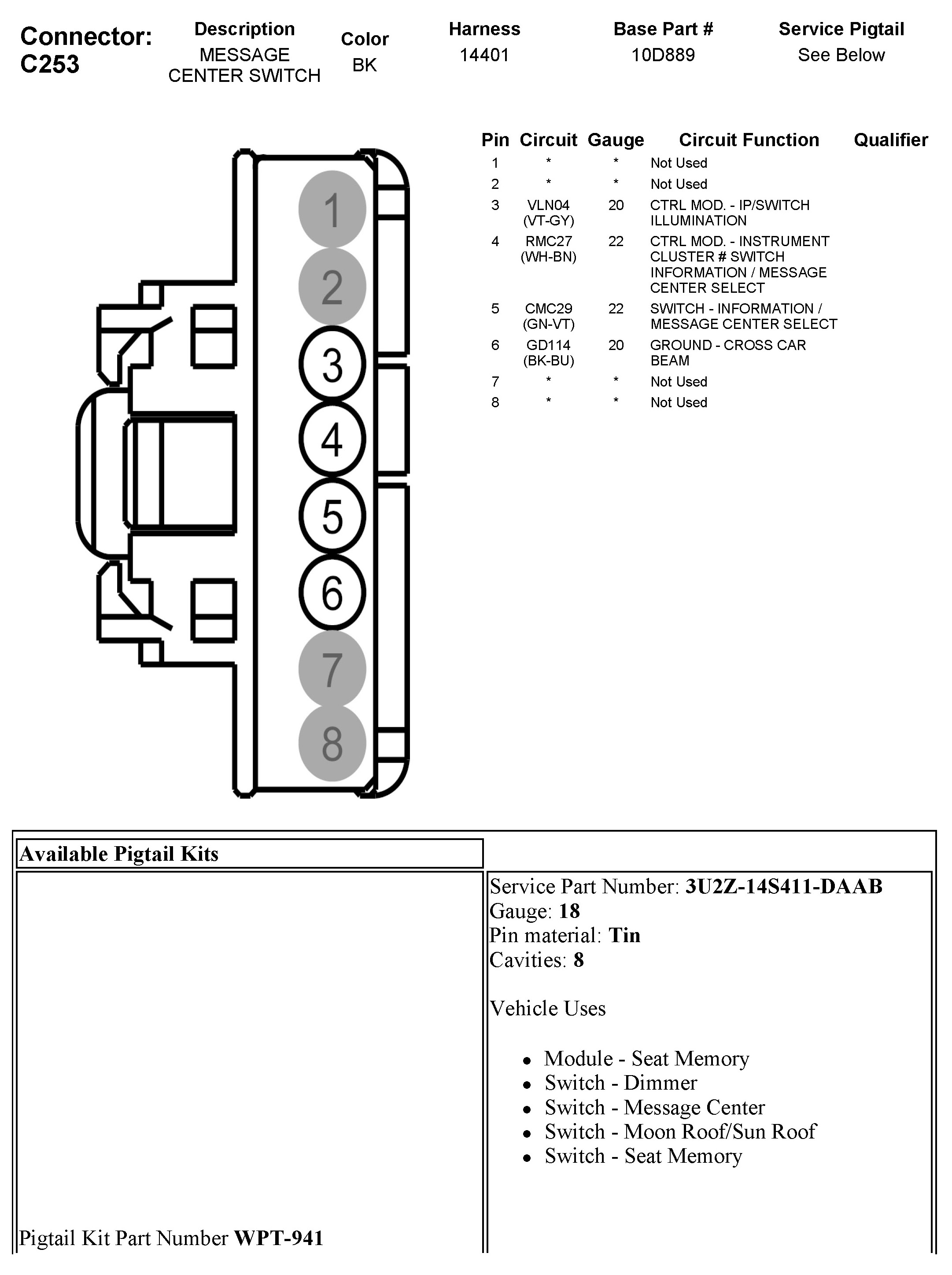

C253 Message Center Switch
