Brake Lamp: Service and Repair

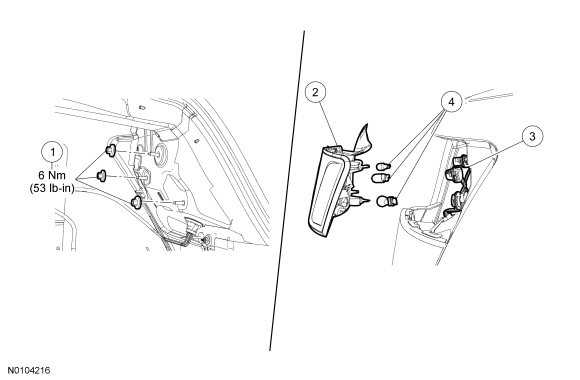

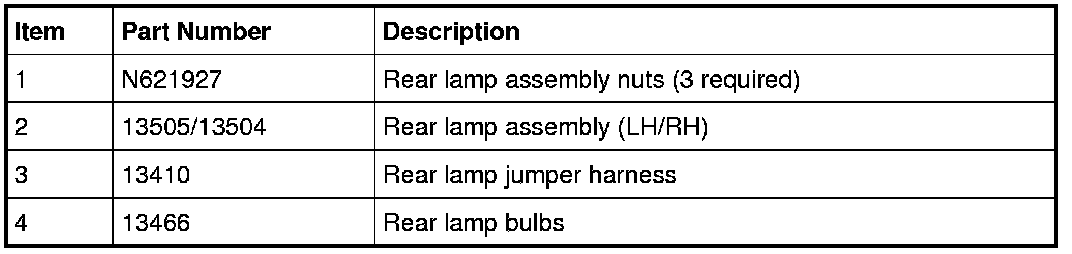

Rear Lamp Assembly









Removal and Installation

1. Position the luggage compartment side trim panel aside.

2. Remove the 3 nuts and the rear lamp assembly.
- Separate the bulb holders from the rear lamp assembly.

- If necessary, remove the bulb from the bulb holder.

- To install, tighten to 6 Nm (53 lb-in).


3. To install, reverse the removal procedure.
