Courtesy Lamp: Service and Repair

Puddle Lamp









Removal and Installation

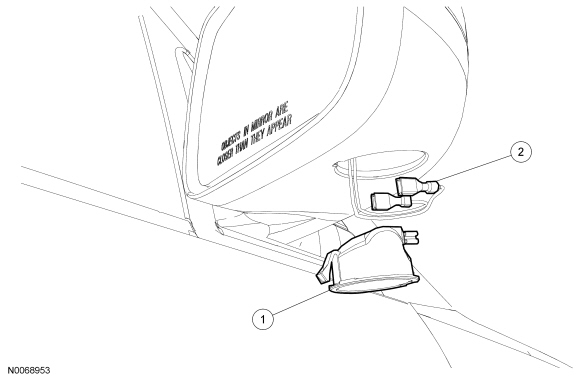

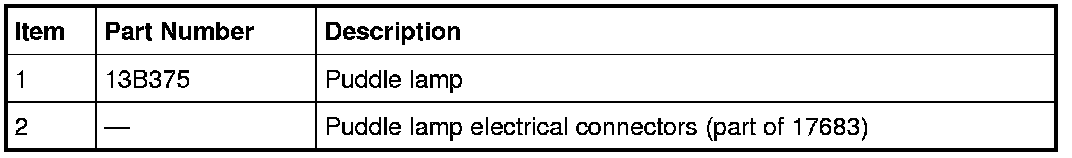

1. NOTE: Use a plastic thin flat-bladed tool (such as a pocket screwdriver) to release the tab.
Release the tab from the underside of the mirror and remove the puddle lamp.

- Disconnect the electrical connectors.


2. To install, reverse the removal procedure.
