Front Disc Brake: Removal

WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

2 Piston Caliper equipped vehicles

NOTE: Do not allow the brake caliper, brake pads and anchor plate assembly to hang from the brake hose or damage to the hose may occur.

Remove and discard the 2 brake caliper anchor plate bolts and position the brake caliper, brake pads and anchor plate aside as an assembly.
- Support the brake caliper, brake pads and anchor plate assembly using mechanic's wire.
4 Piston Caliper equipped vehicles

NOTE: Do not allow the brake caliper assembly to hang from the brake hose or damage to the hose may occur.

Remove and discard the 2 brake caliper bolts and position the caliper assembly aside.
- Support the caliper assembly using mechanic's wire.
All vehicles
If equipped, remove and discard the retaining nuts.

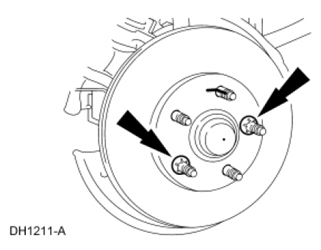

Fig 1: Locating Brake Disc Retaining Nuts
Courtesy of FORD MOTOR CO.
Remove the brake disc.
