Accelerator Pedal: Removal

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: To prevent setting Diagnostic Trouble Codes (DTCs), make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connector.

NOTE: Vehicles with adjustable pedals, position the drivers seat to the full rearward position and if possible adjust the pedals to the full forward position.

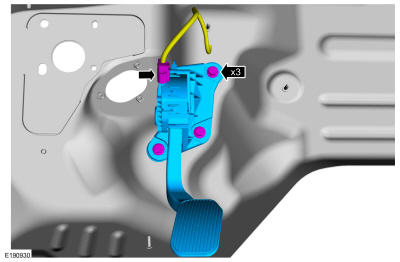

Accelerator Pedal - Fixed

1.

Disconnect the accelerator pedal sensor electrical connector. Remove the 3 bolts and the accelerator pedal assembly.
Torque: 155 lb.in (17.5 Nm)

Courtesy of FORD MOTOR COMPANY

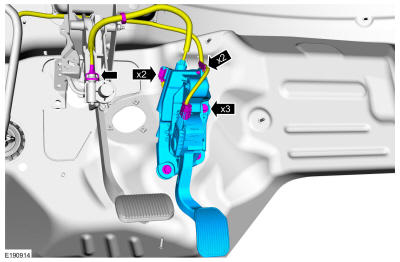

Accelerator Pedal - Adjustable

2.
- Disconnect the 2 accelerator pedal electrical connectors.
- Disconnect the wire harness and accelerator pedal to brake pedal cable pushpins.
- Disconnect the accelerator pedal to brake pedal cable from the brake pedal.
- Remove the 3 bolts and the accelerator pedal assembly.
  Torque: 155 lb.in (17.5 Nm)

Courtesy of FORD MOTOR COMPANY
