Seat Front: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

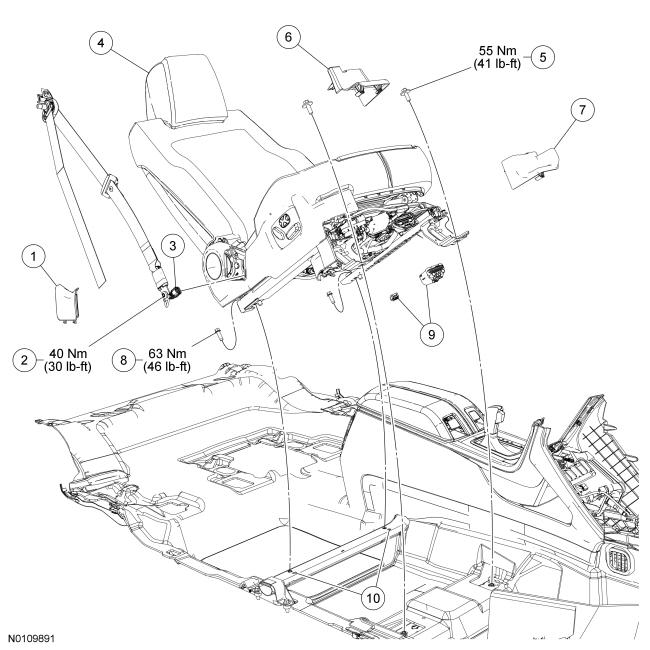

Seat - Front
NOTE:
Passenger seat shown, driver seat similar.
NOTE:
Non-limo or livery shown, limo or livery similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 61692 RH/ 61693 LH RH/ 61693 LH | Cushion side shield cover |
| 2 | - | Safety belt anchor bolt (part of 611B08 RH/ 611B09 LH) |
| 3 | - | Belt Tension Sensor(BTS) electrical connector (part of 611B08) (passenger seat only) |
| 4 | - | Passenger seat assembly |
| 5 | W709428 | Front mounting bolts (2 required) |
| 6 | 61748 RH/ 61749 LH RH/ 61749 LH | Outboard front cover |
| 7 | 61748 RH/ 61749 LH RH/ 61749 LH | Inboard front cover |
| 8 | W714018 | Rear mounting bolts (2 required) |
| 9 | - | Electrical connector (part of 14A005) |
| 10 | 10672 | Side Protection and Cabin Enhancement(SPACE®) tube locator pin holes |
