Restraints Control Module (RCM): Notes
SPECIAL TOOLS
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

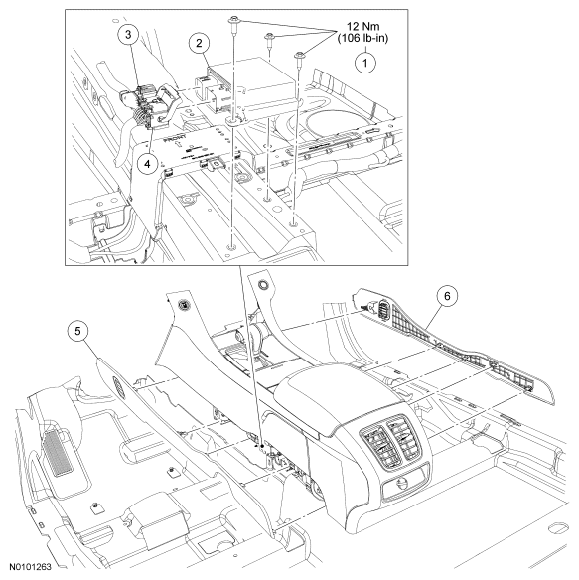

| Item | Part Number | Description |
|---|---|---|
| 1 | W707722 | Restraints Control Module (RCM) bolts (3 required) |
| 2 | 14B321 | RCM |
| 3 | - | Small RCM electrical connector (part of 14401) |
| 4 | - | Large RCM electrical connector (part of 14A005) |
| 5 | 04608 | LH floor console lower trim panel |
| 6 | 04609 | RH floor console lower trim panel |
