Exploded View: Notes

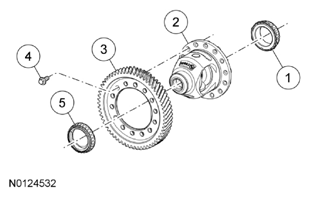

Fig 1: Exploded View Of Differential Gear Assembly
G08001304Courtesy of FORD MOTOR CO.
Item Part Number Description
1 4221 Bearing
2 7F465 Differential case assembly
3 7F343 Differential ring gear
4 7J286 Bolt - M10 x 25
5 4221 Bearing
