Cruise Control Switch: Notes

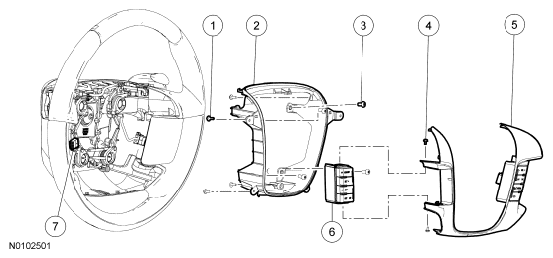

Fig 1: Exploded View Of Cruise Control Switch
G06254585Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W790212-S Steering wheel switch bezel screws (4 required)
2 3F910-A Steering wheel bezel box
3 W790212-S Steering wheel bezel box screws (4 required)
4 M3x6 Cruise control switch bezel screws (2 required)
5 3F910-B Cruise control switch bezel
6 9C888 Cruise control switch
7 - Cruise control switch electrical connector (part of the steering wheel harness)
