Steering Angle Sensor Module (SASM): Notes

SPECIAL TOOLS

G07482720
Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

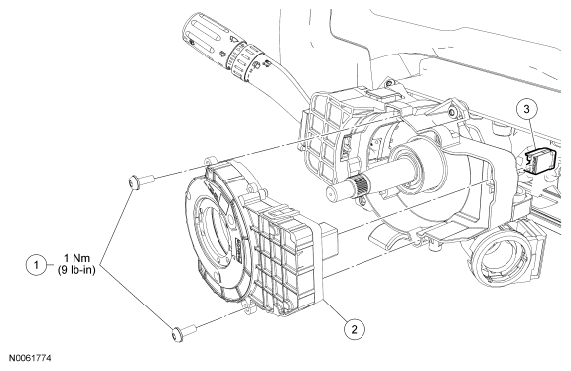

Fig 1: Exploded View Of Steering Angle Sensor Module (SASM) With Torque Specifications
G06254003Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Steering Angle Sensor Module (SASM) bolts (part of 13D774) (2 required)
2 3F818 SASM
3 - SASM electrical connector (part of 14401)
