Exterior rear view mirror switch: Schematic

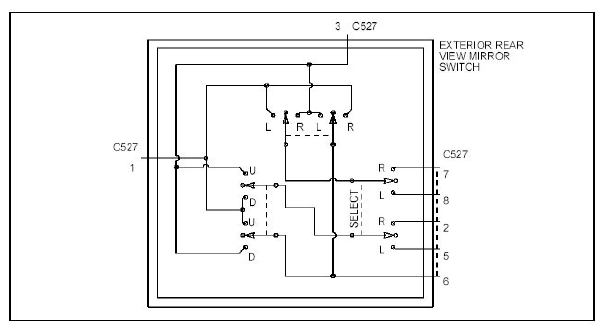

Fig 1: Exterior Rear View Mirror Switch - Component Testing
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
