Window adjust switch, passenger side (SHO, Limited): Schematic

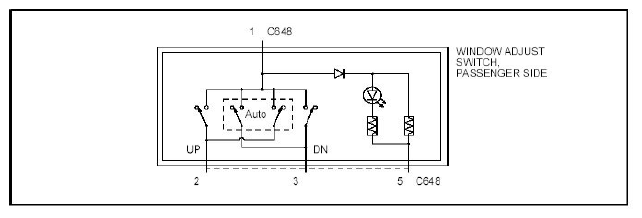

Fig 1: Window Adjust Switch, Passenger Side (SHO, Limited) - Component Testing
G07898311Courtesy of FORD MOTOR CO.
