Window adjust switch, passenger side (SHO, Limited): Terminals

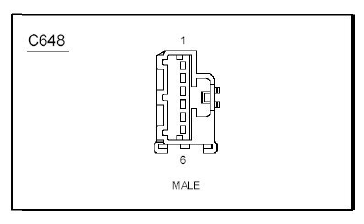

Fig 1: Identifying C648 Connector Terminals

G07898312

Courtesy of FORD MOTOR CO.
