Window adjust switches, left and right rear: Schematic

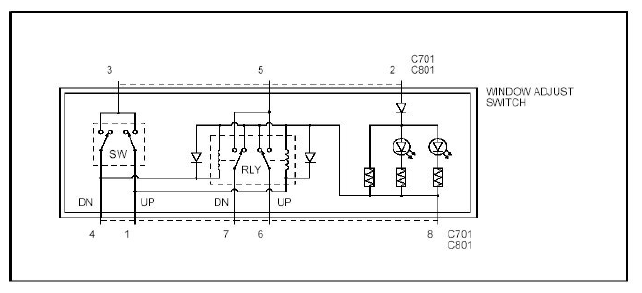

Fig 1: Window Adjust Switches, Left And Right Rear - Component Testing
G07898315Courtesy of FORD MOTOR CO.
