Component Location Views

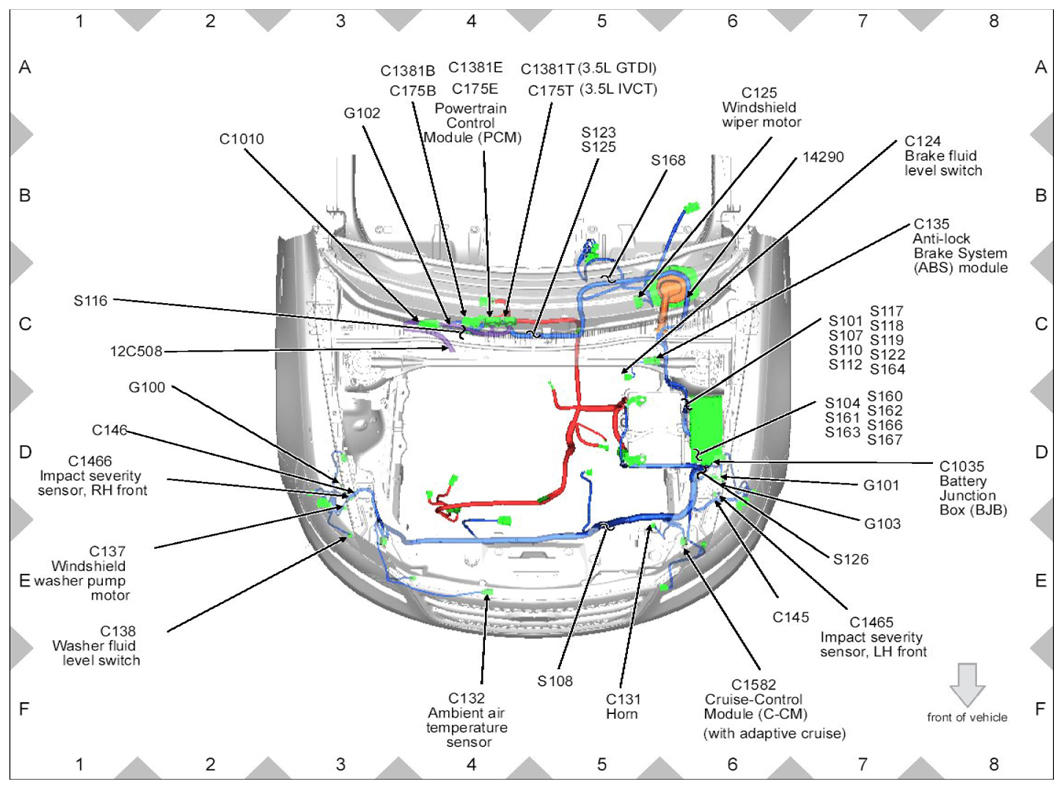

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 4)

G07905048

Courtesy of FORD MOTOR CO.

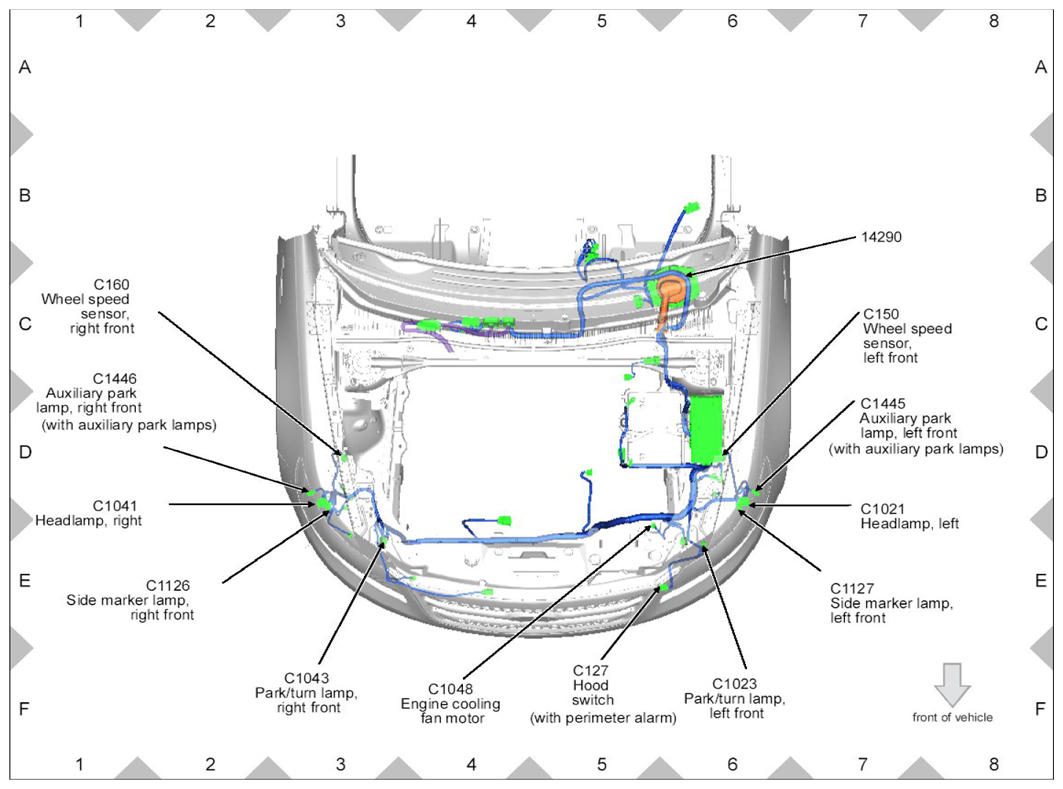

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 4)

G07905049

Courtesy of FORD MOTOR CO.

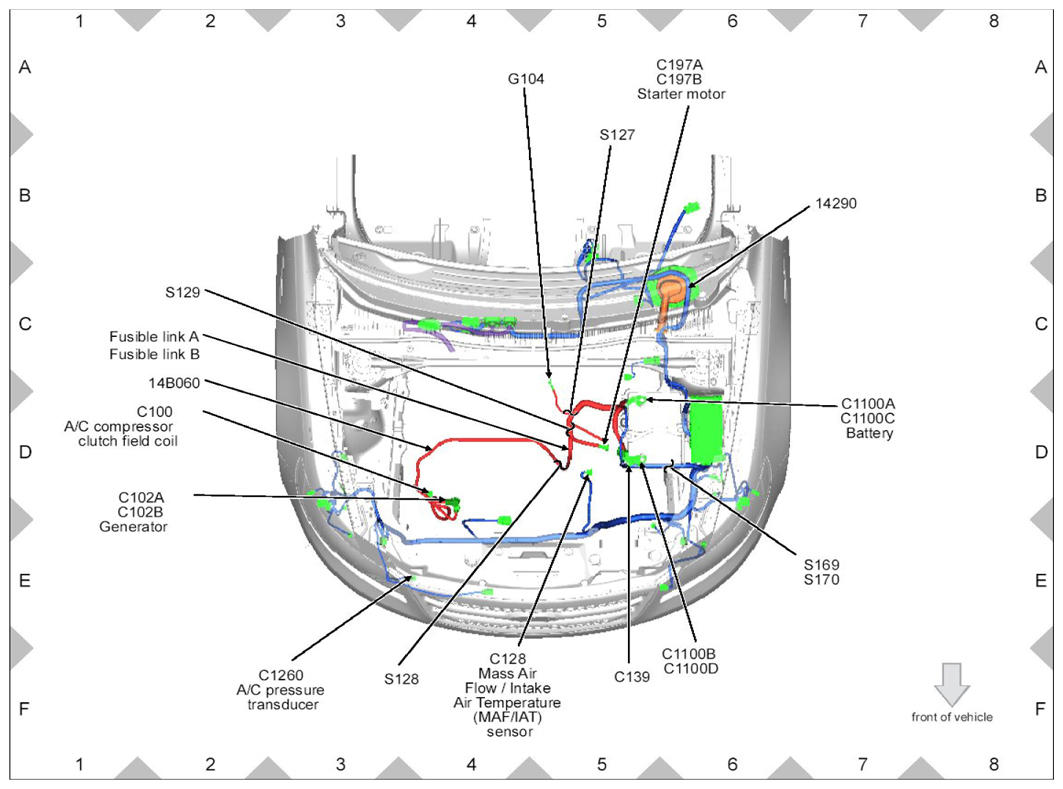

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 4)

G07905050

Courtesy of FORD MOTOR CO.

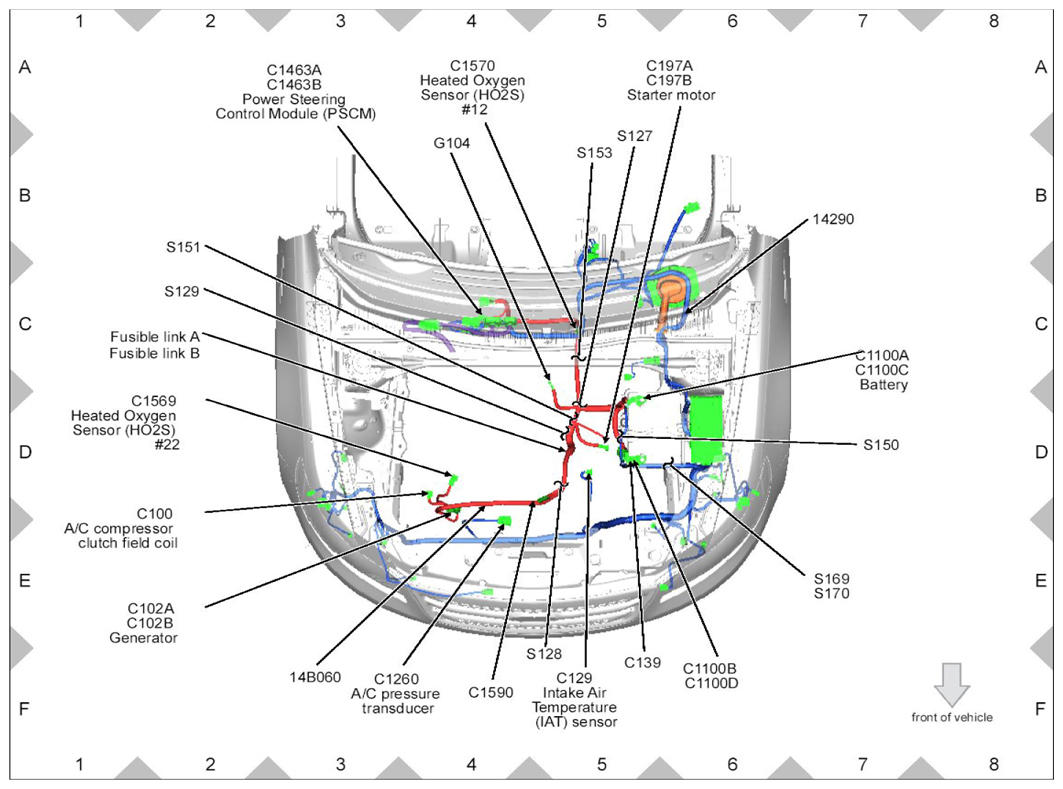

Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 4)

G07905051

Courtesy of FORD MOTOR CO.

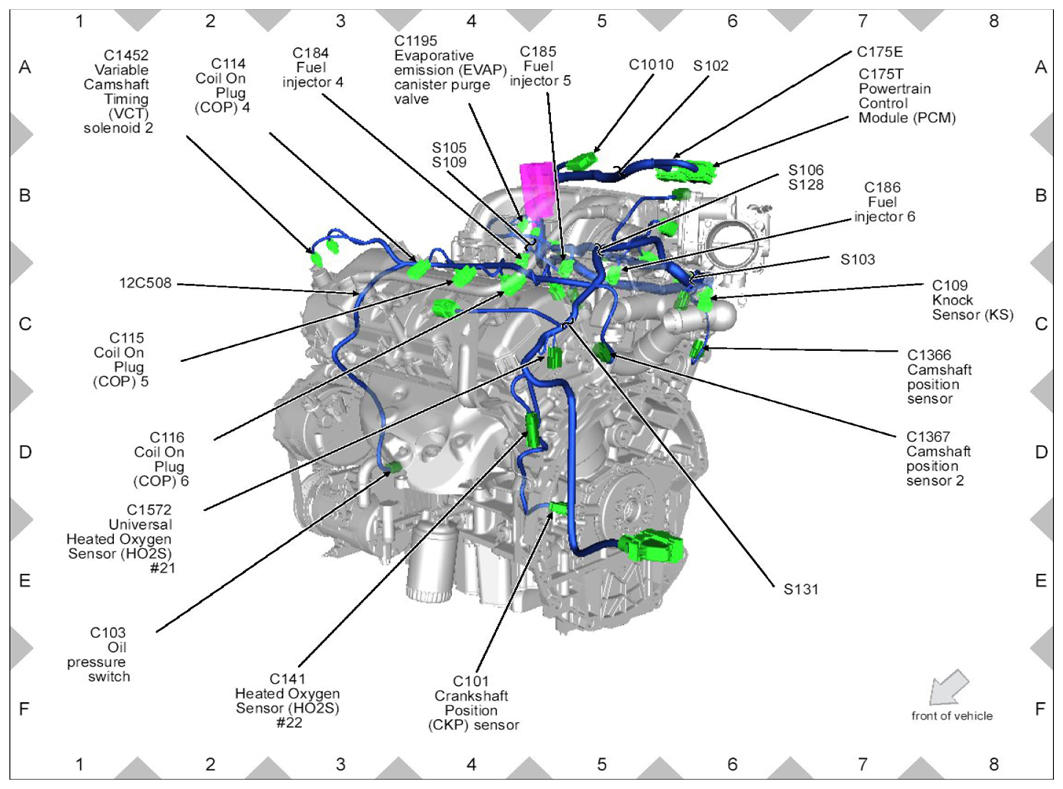

Fig 5: Engine Wiring Harness Connectors Location (1 Of 4)

G07905052

Courtesy of FORD MOTOR CO.

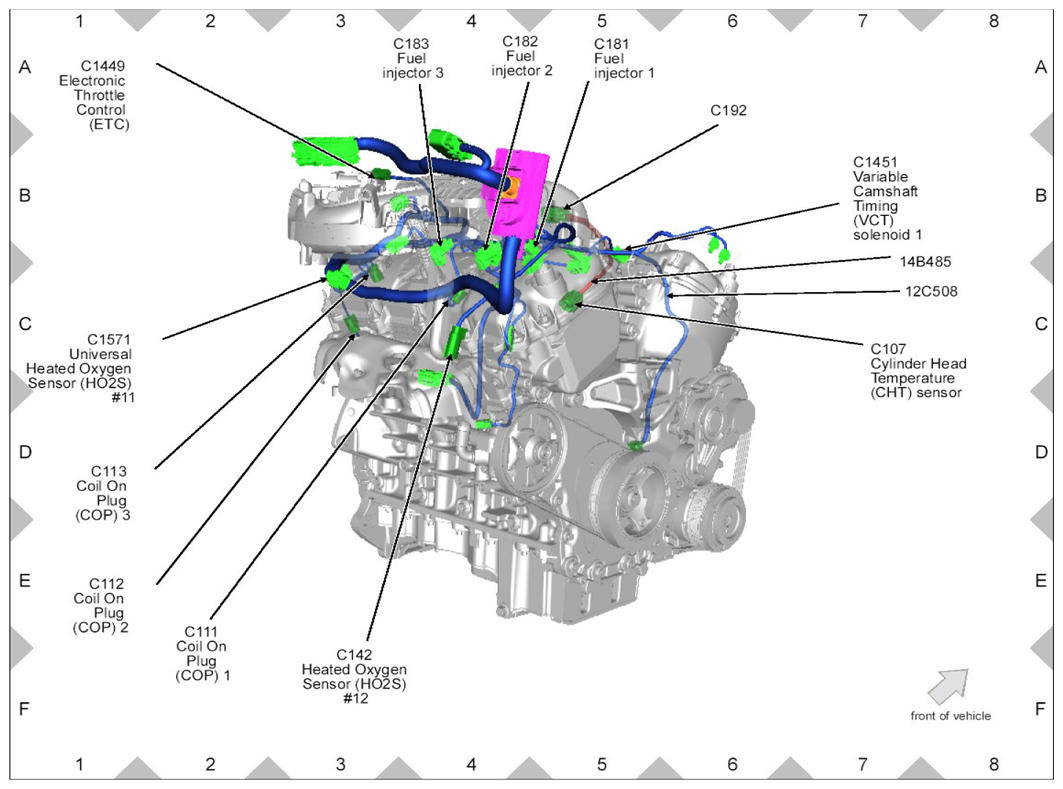

Fig 6: Engine Wiring Harness Connectors Location (2 Of 4)

G07905053

Courtesy of FORD MOTOR CO.

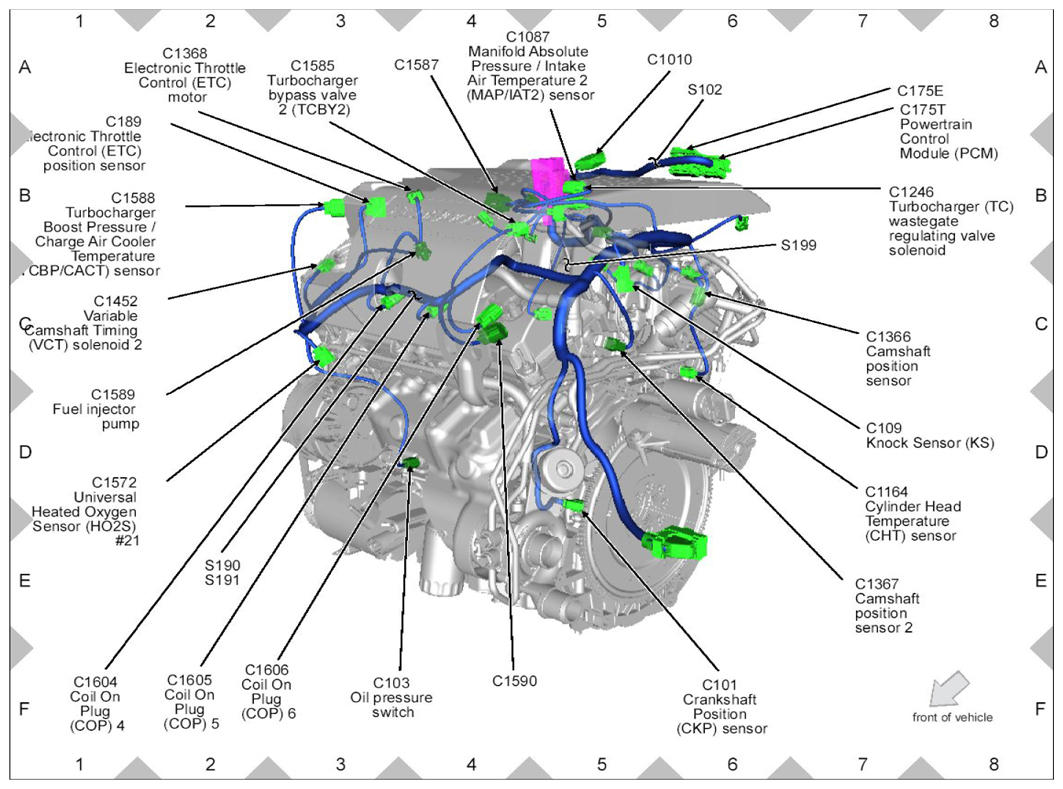

Fig 7: Engine Wiring Harness Connectors Location (3 Of 4)

G07905054

Courtesy of FORD MOTOR CO.

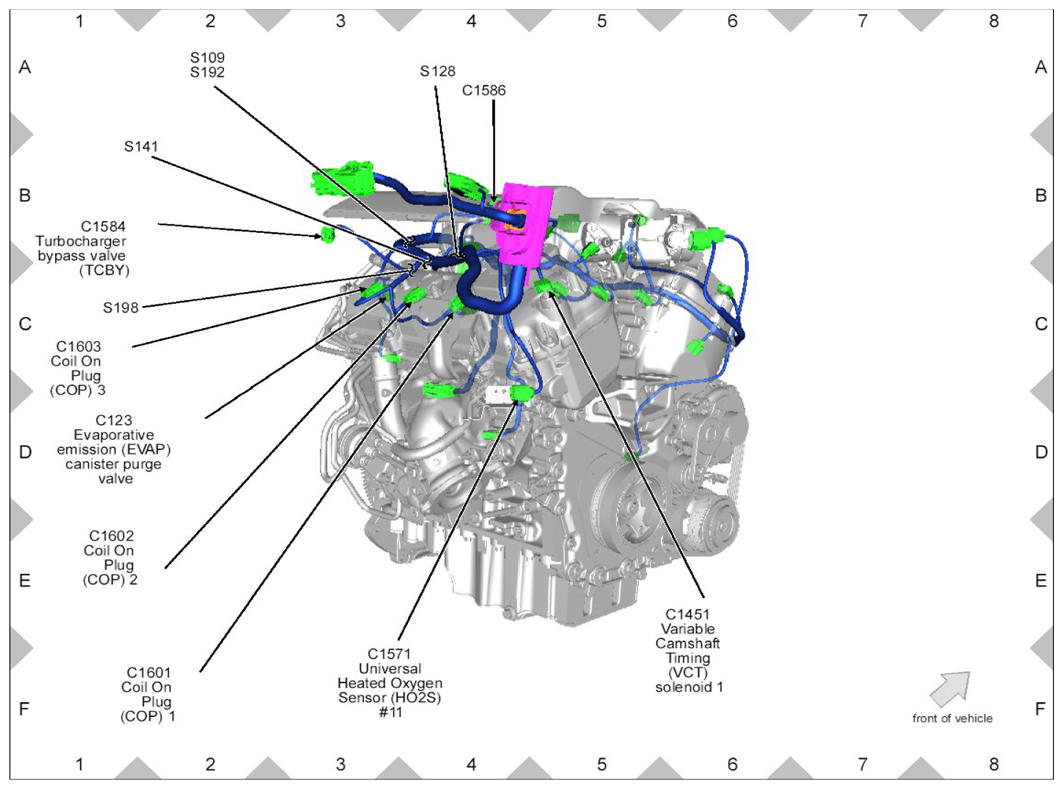

Fig 8: Engine Wiring Harness Connectors Location (4 Of 4)

G07905055

Courtesy of FORD MOTOR CO.

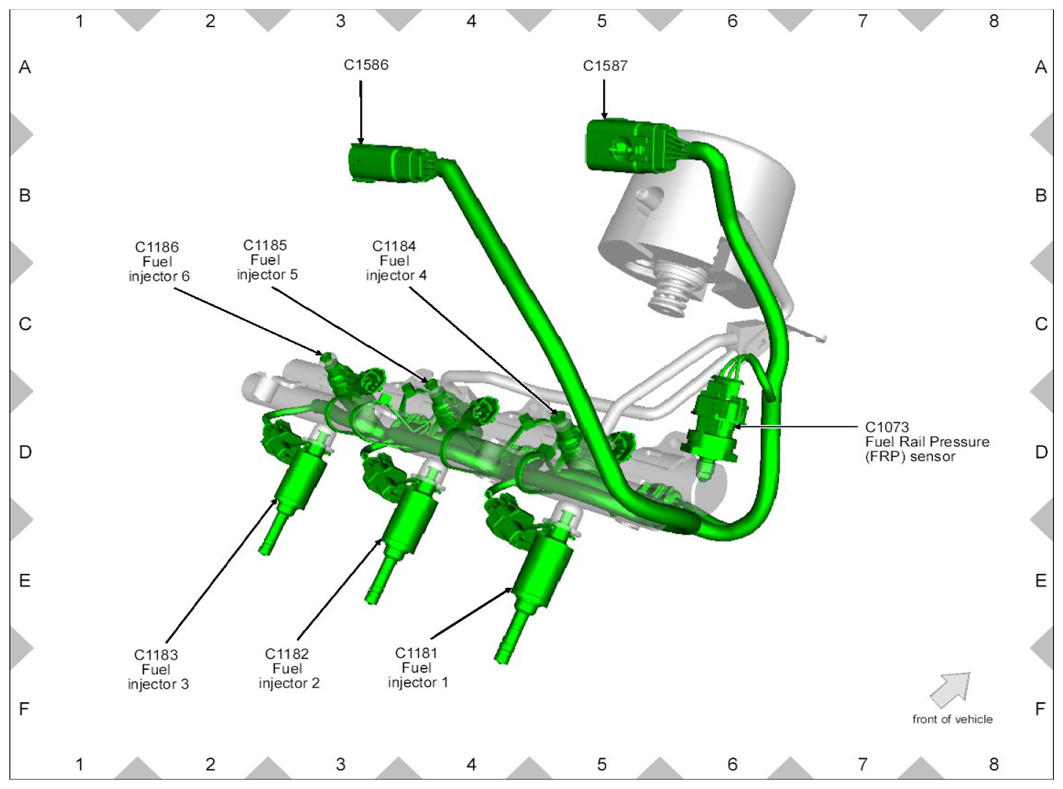

Fig 9: Fuel Rail Wiring Harness Connectors Location

G07905056

Courtesy of FORD MOTOR CO.

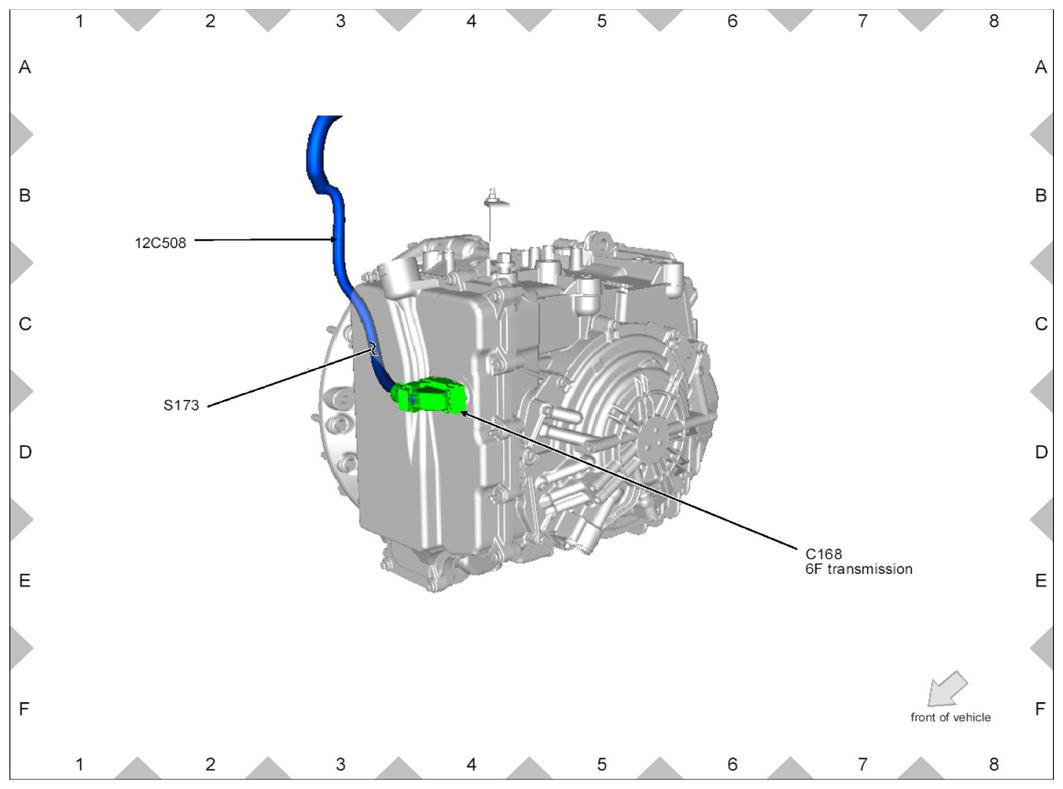

Fig 10: Transmission Wiring Harness Connectors Location

G07905057

Courtesy of FORD MOTOR CO.

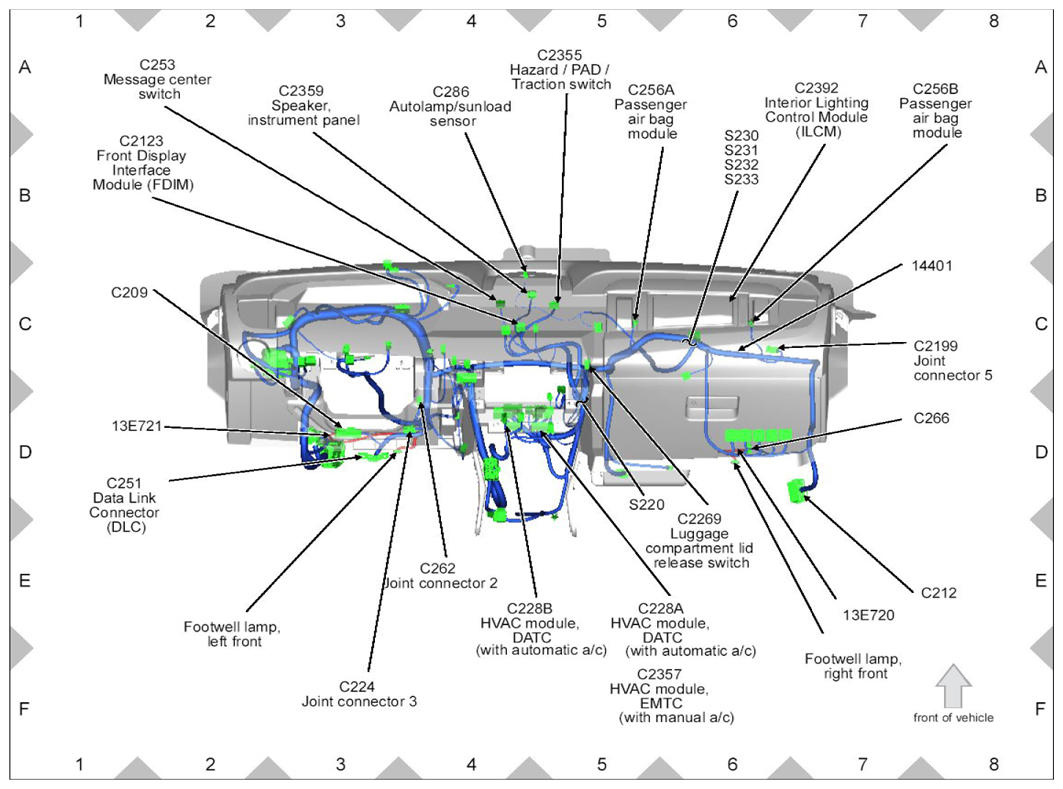

Fig 11: Front Dash Board Wiring Harness Connectors Location (1 Of 3)

G07905058

Courtesy of FORD MOTOR CO.

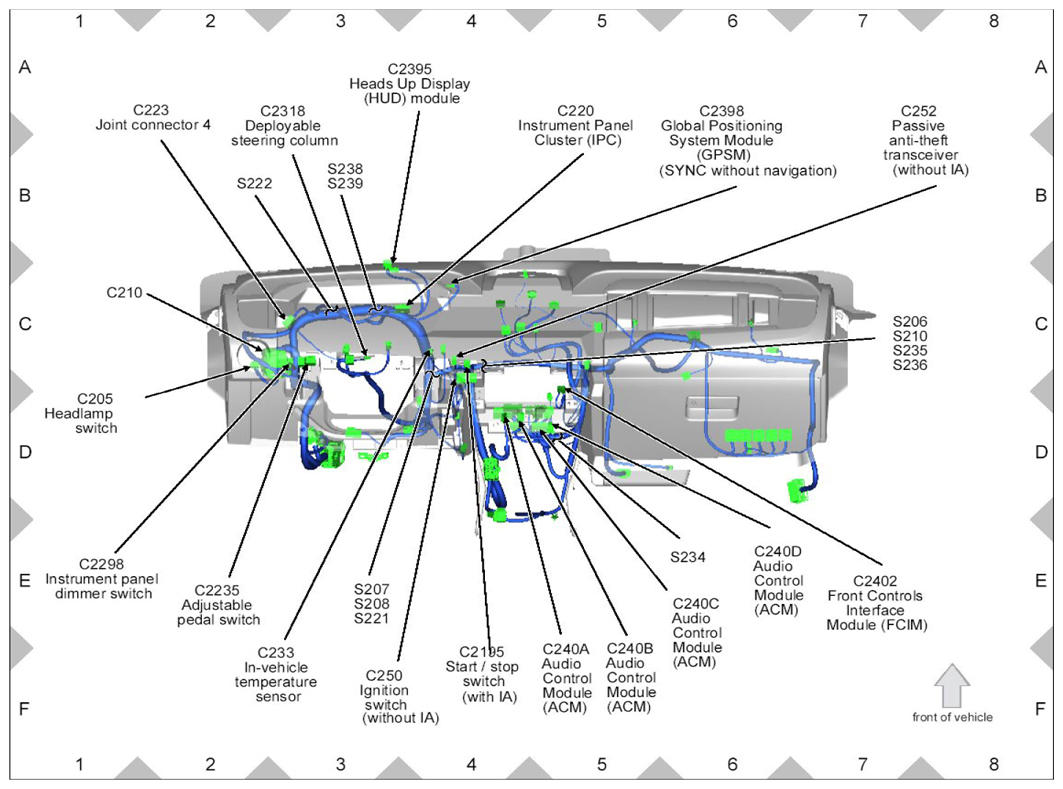

Fig 12: Front Dash Board Wiring Harness Connectors Location (2 Of 3)

G07905059

Courtesy of FORD MOTOR CO.

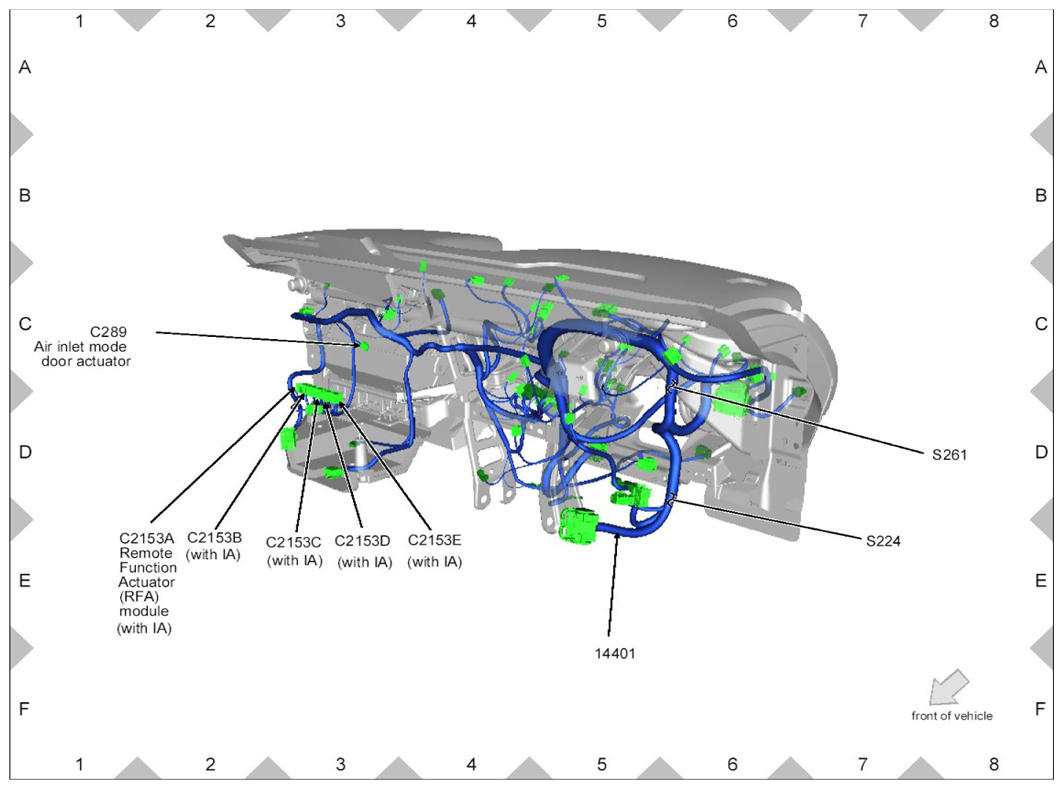

Fig 13: Front Dash Board Wiring Harness Connectors Location (3 Of 3)

G07905060

Courtesy of FORD MOTOR CO.

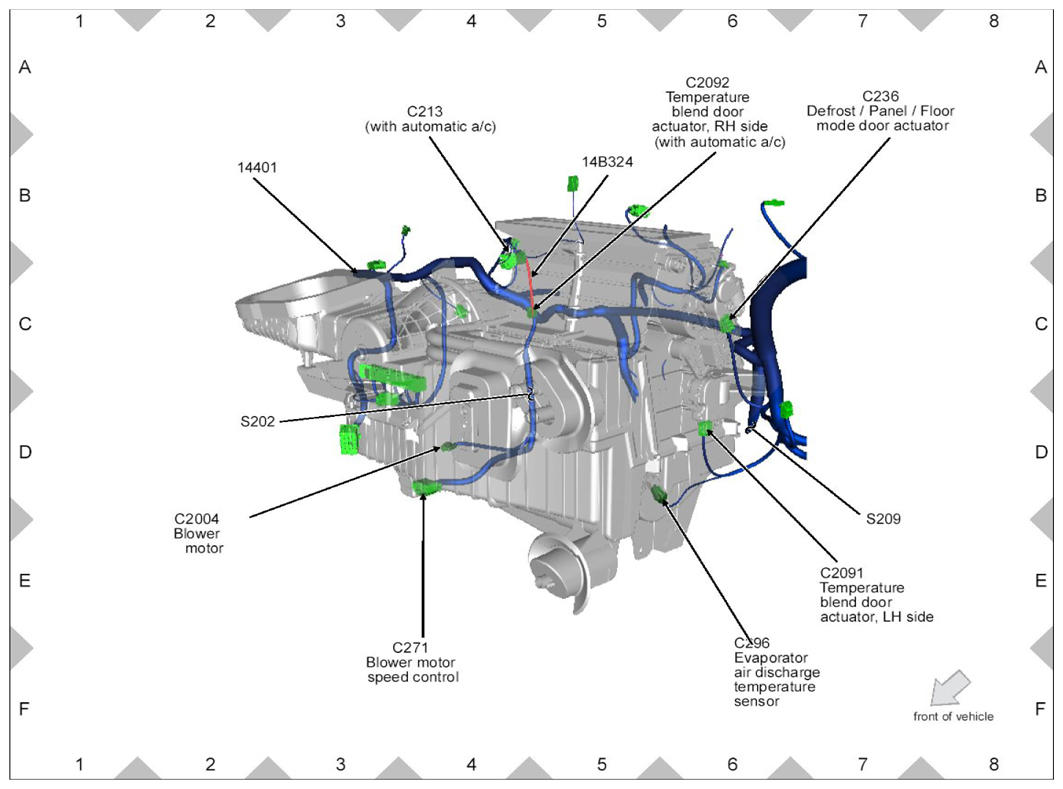

Fig 14: Blower Wiring Harness Connectors Location

G07905061

Courtesy of FORD MOTOR CO.

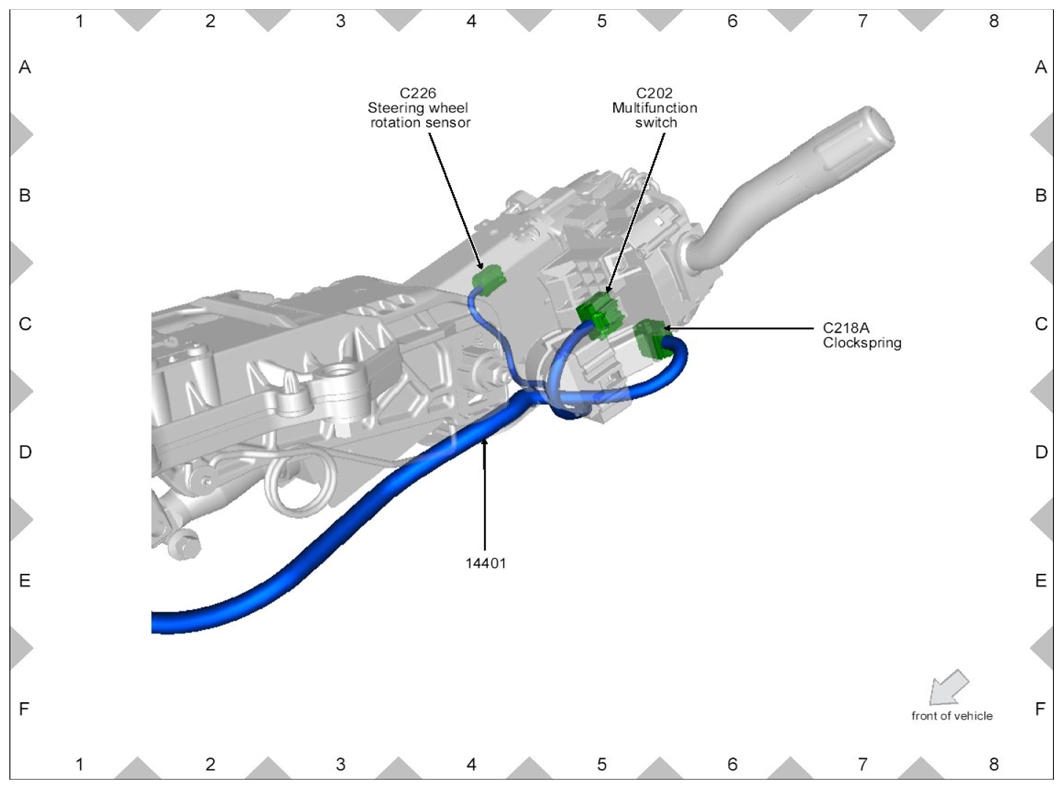

Fig 15: Steering Column Wiring Harness Connectors Location

G07905062

Courtesy of FORD MOTOR CO.

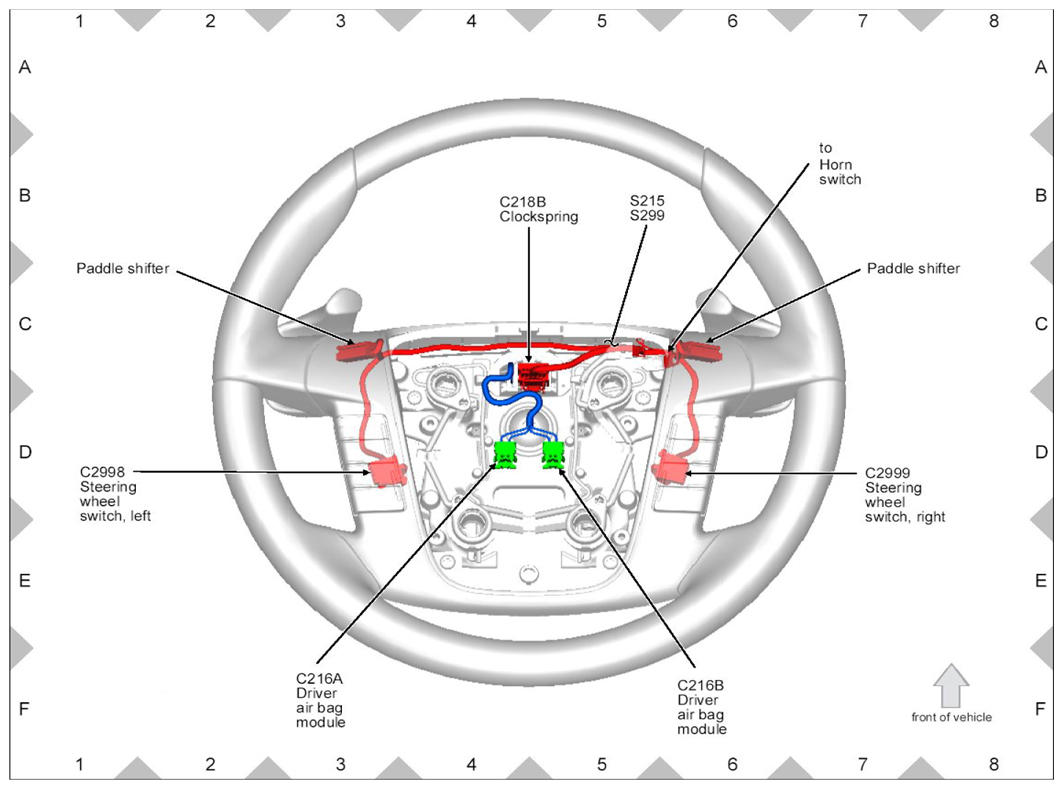

Fig 16: Steering Wheel Wiring Harness Connectors Location

G07905063

Courtesy of FORD MOTOR CO.

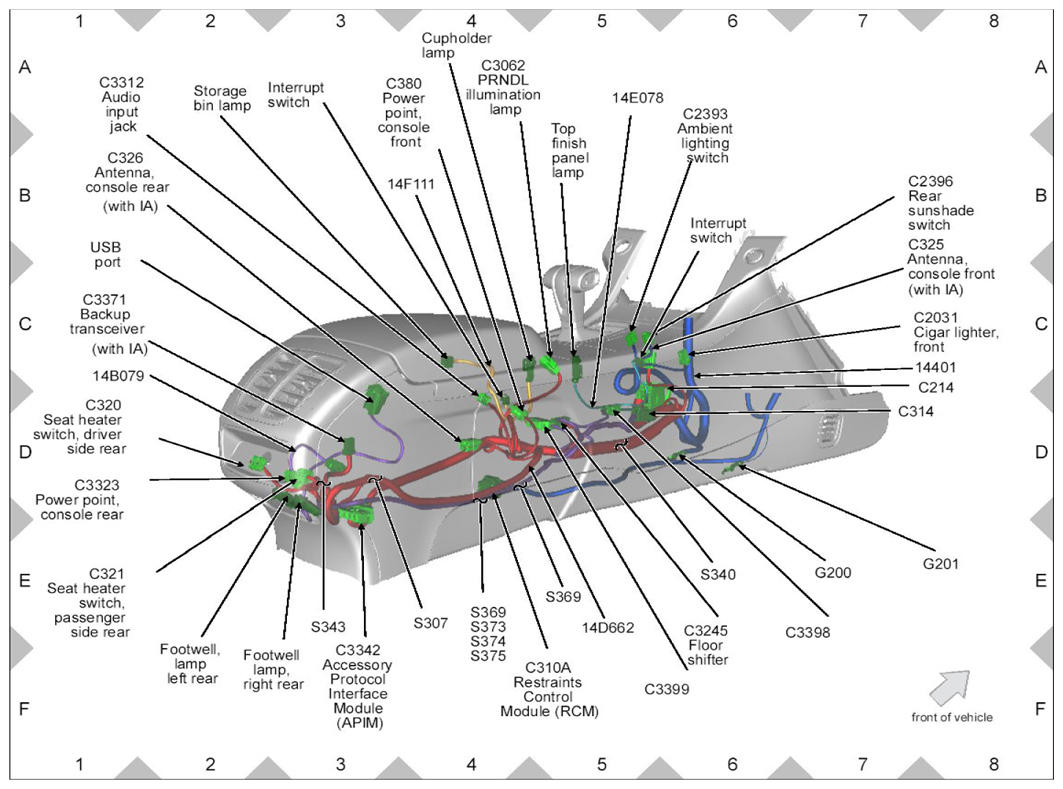

Fig 17: Center Console Wiring Harness Connectors Location

G07905064

Courtesy of FORD MOTOR CO.

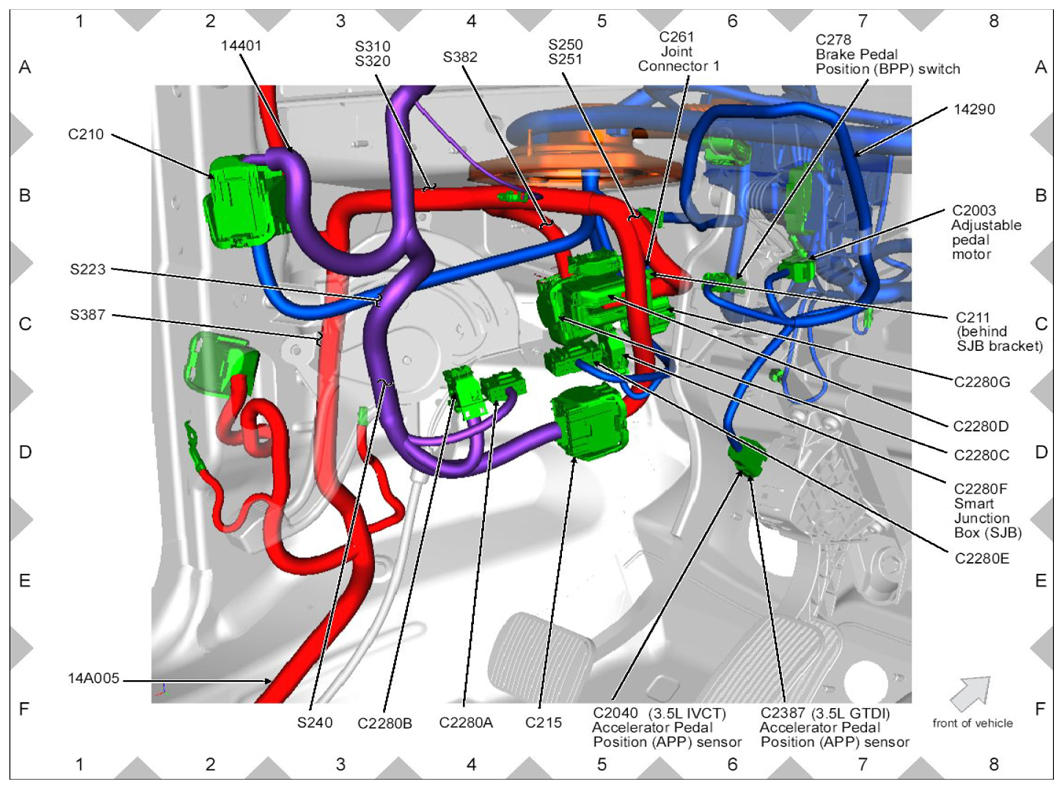

Fig 18: Front Compartment Wiring Harness Connectors Location - LH (1 Of 2)

G07905065

Courtesy of FORD MOTOR CO.

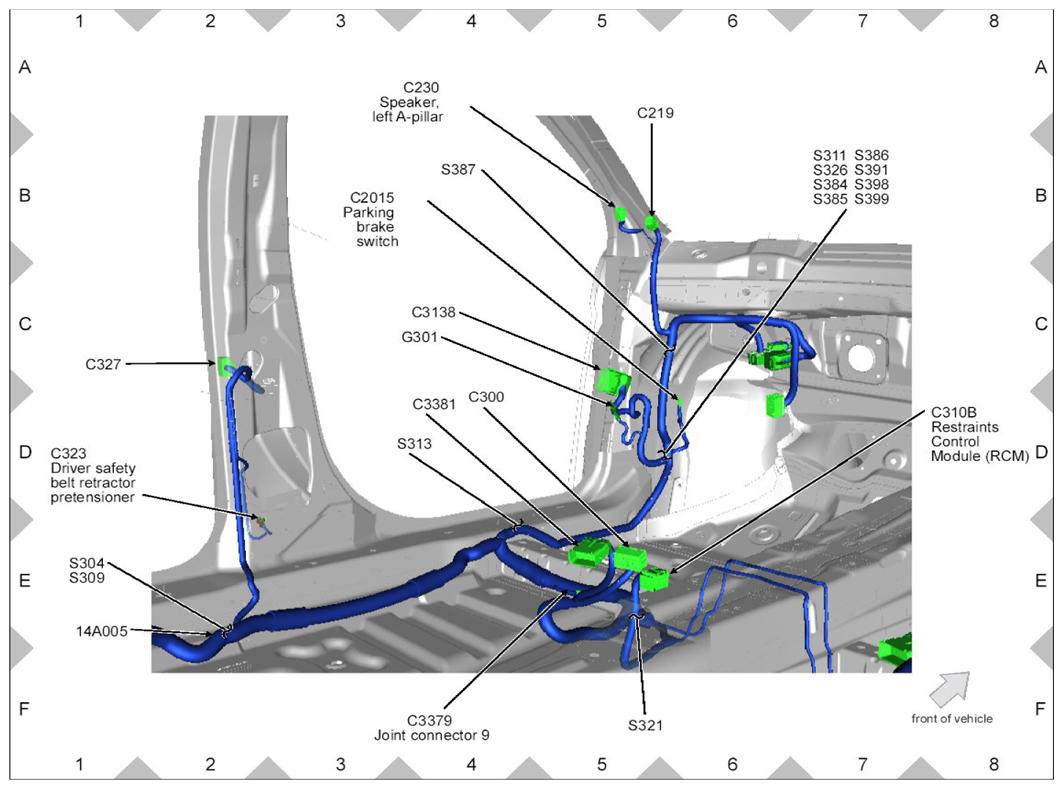

Fig 19: Front Compartment Wiring Harness Connectors Location - LH (2 Of 2)

G07905066

Courtesy of FORD MOTOR CO.

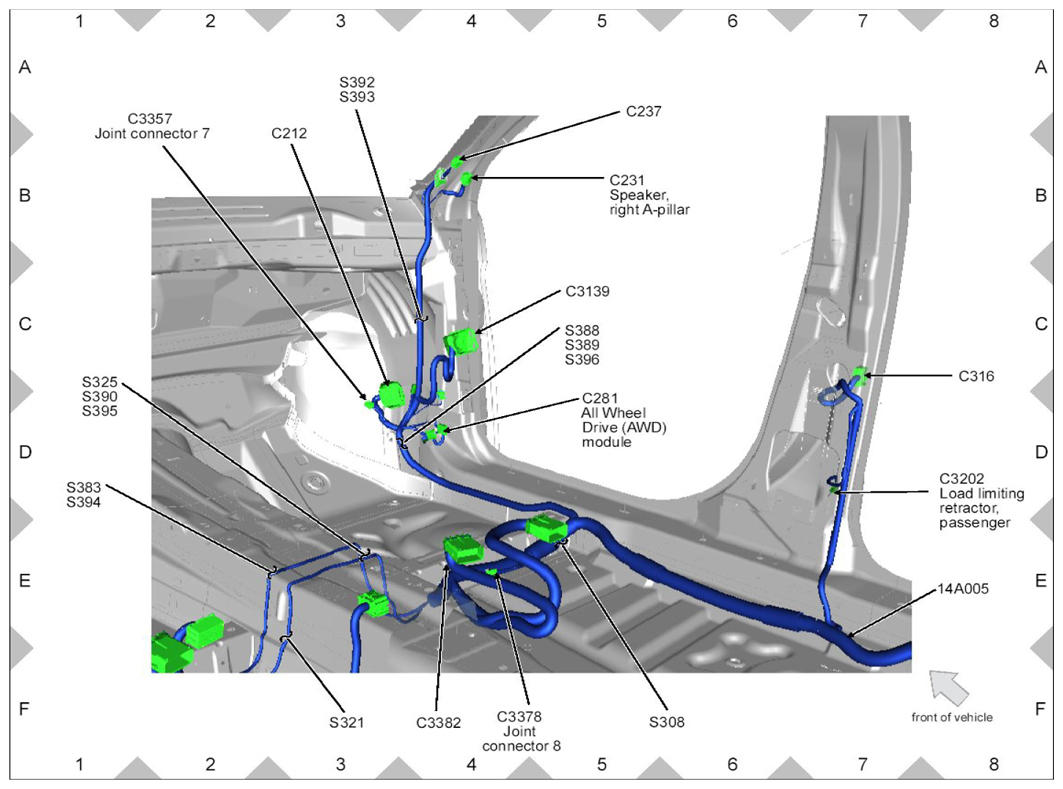

Fig 20: Front Compartment Wiring Harness Connectors Location - RH

G07905067

Courtesy of FORD MOTOR CO.

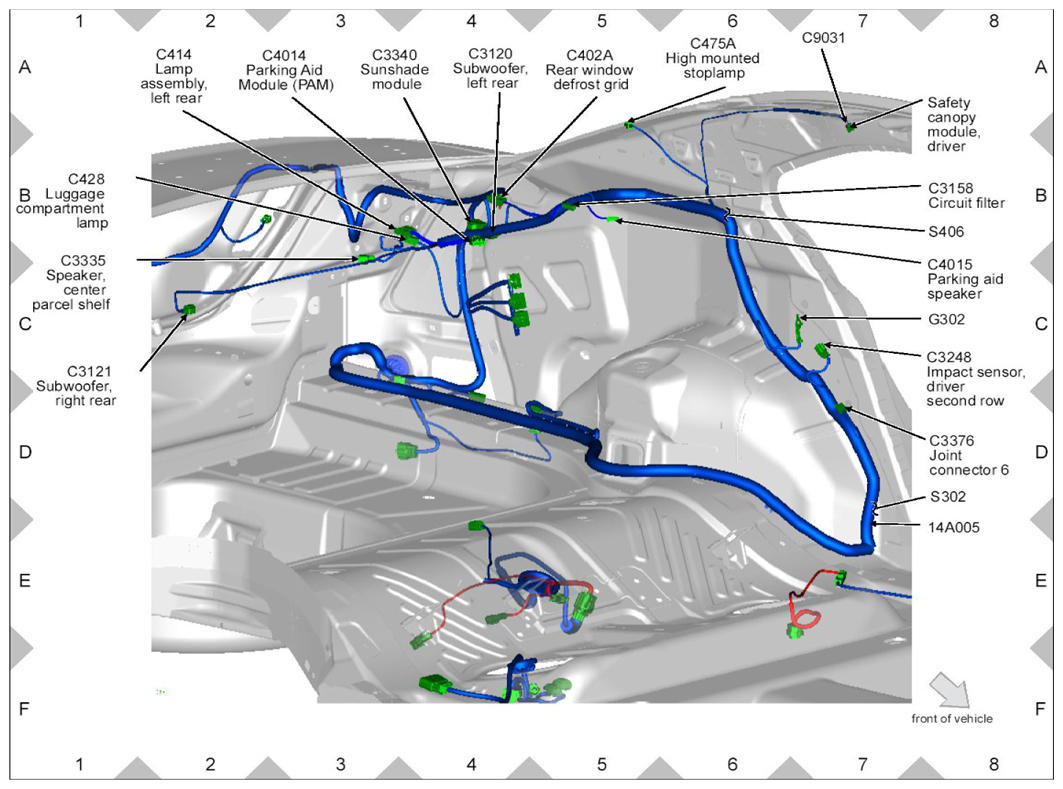

Fig 21: Rear Compartment Wiring Harness Connectors Location - LH (1 Of 2)

G07905068

Courtesy of FORD MOTOR CO.

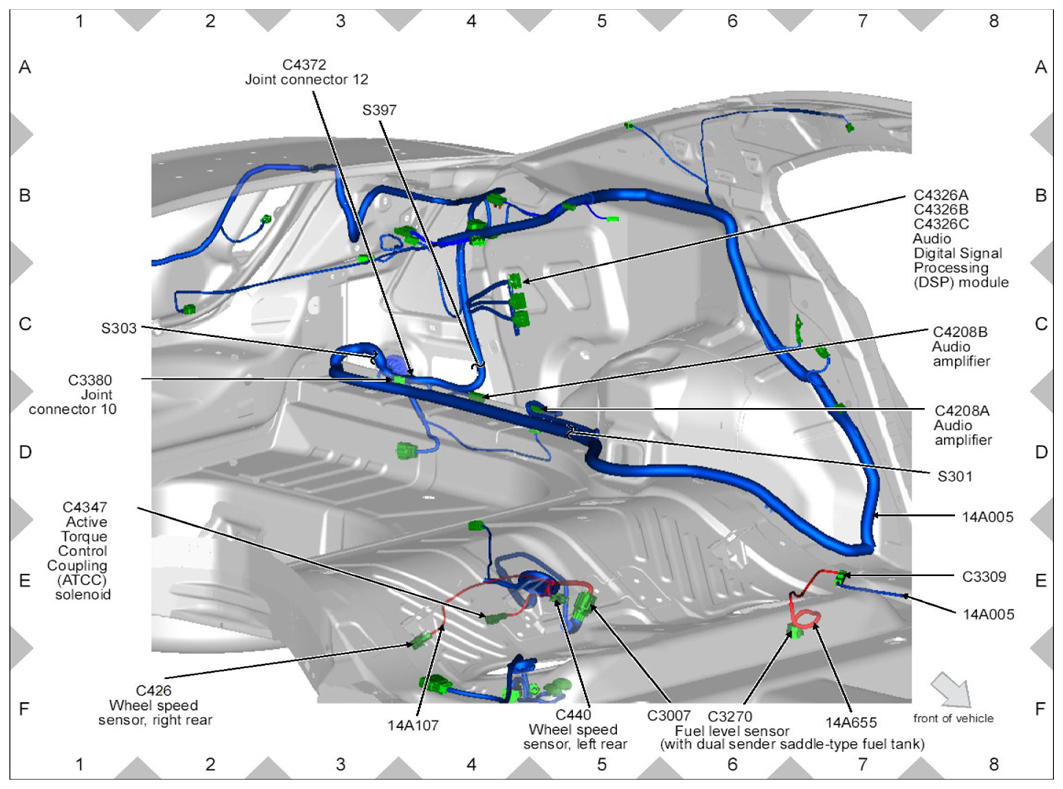

Fig 22: Rear Compartment Wiring Harness Connectors Location - LH (2 Of 2)

G07905069

Courtesy of FORD MOTOR CO.

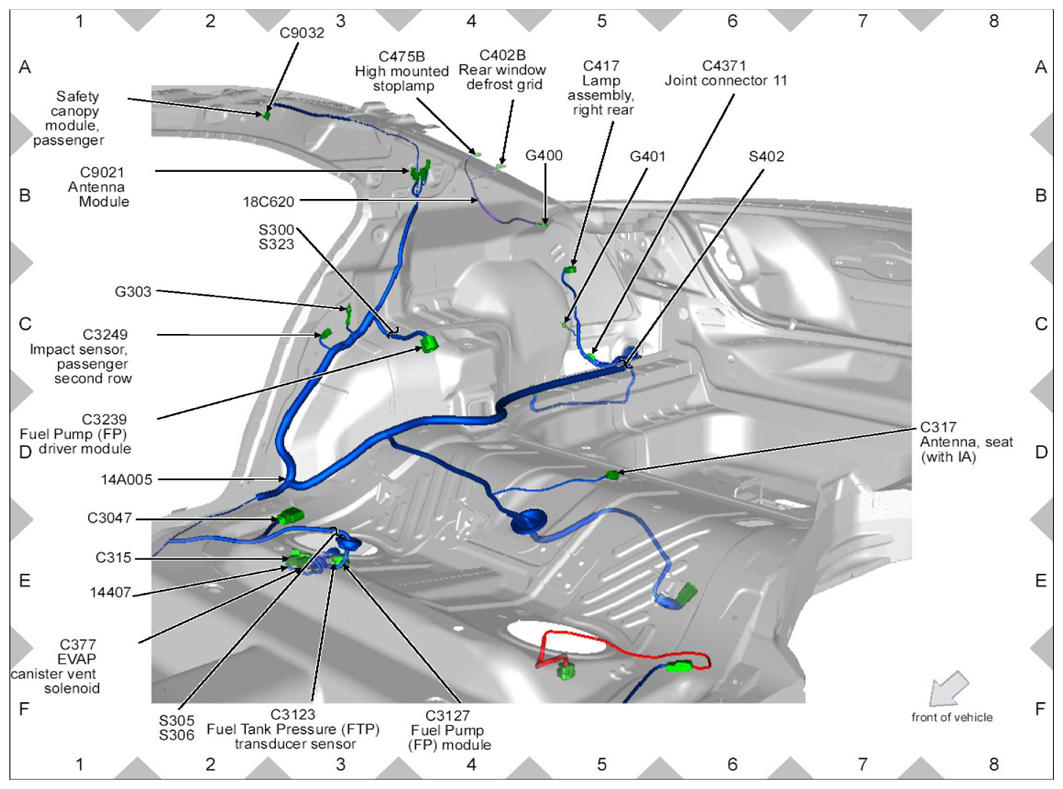

Fig 23: Rear Compartment Wiring Harness Connectors Location - RH

G07905070

Courtesy of FORD MOTOR CO.

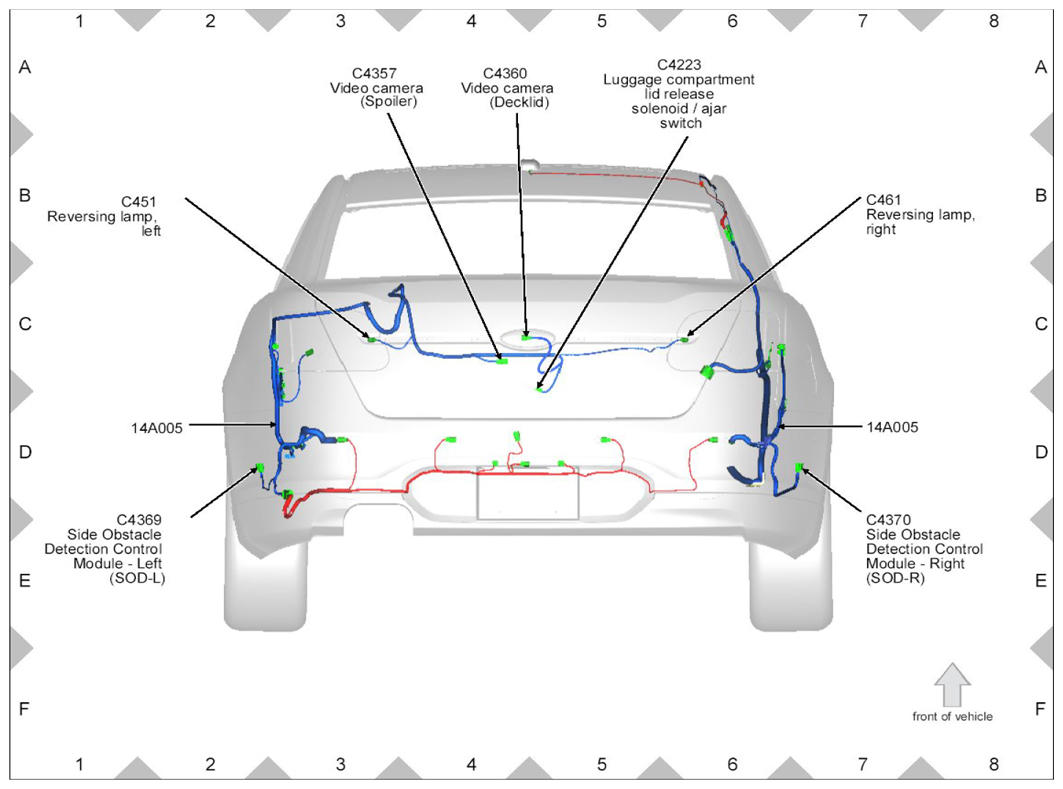

Fig 24: Luggage Compartment Wiring Harness Connectors Location (1 Of 2)

G07905071

Courtesy of FORD MOTOR CO.

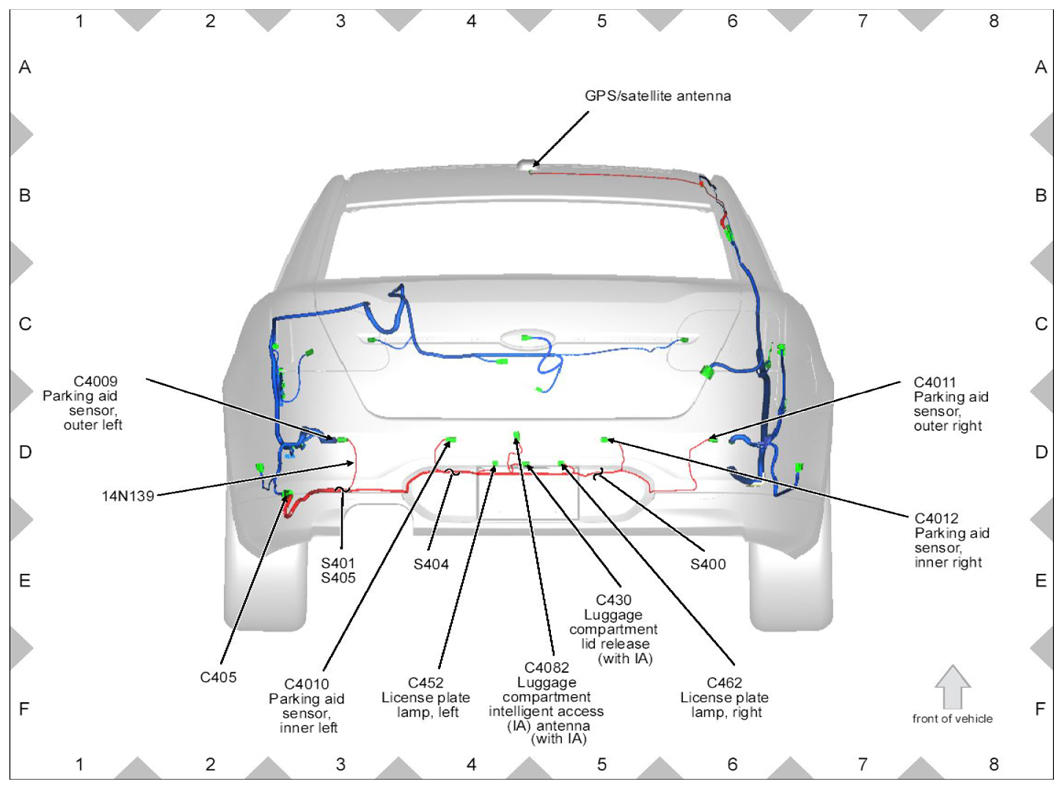

Fig 25: Luggage Compartment Wiring Harness Connectors Location (2 Of 2)

G07905072

Courtesy of FORD MOTOR CO.

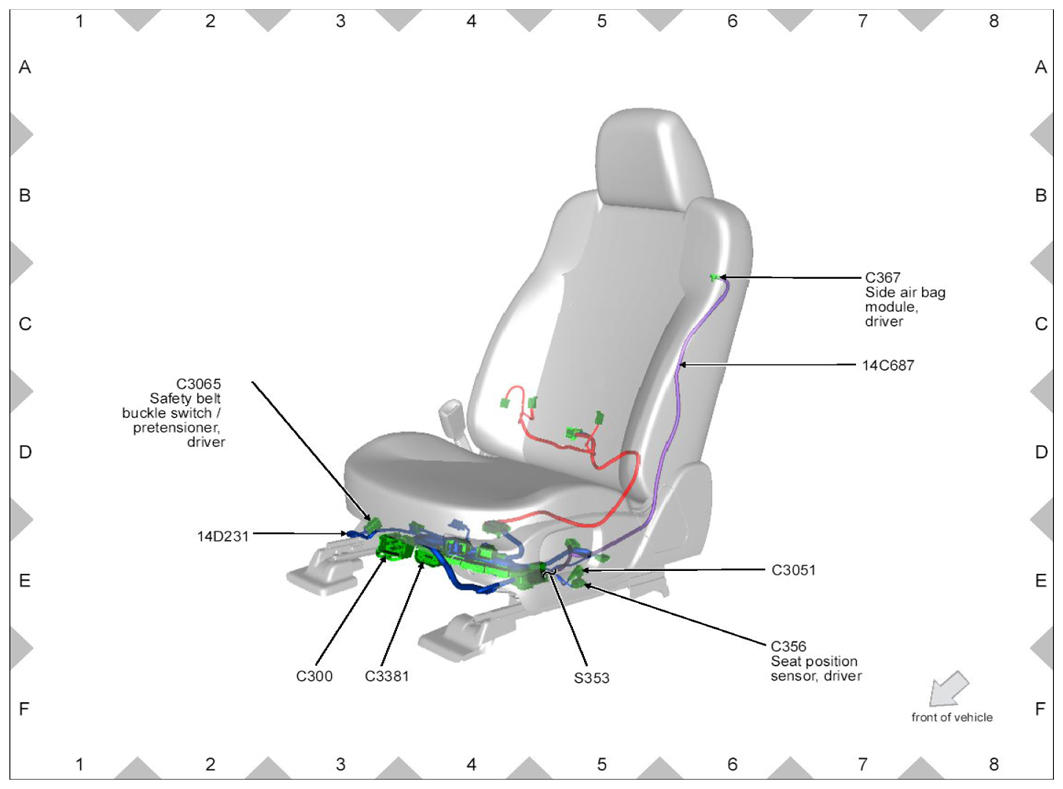

Fig 26: Driver Seat Wiring Harness Connectors Location (1 Of 2)

G07905073

Courtesy of FORD MOTOR CO.

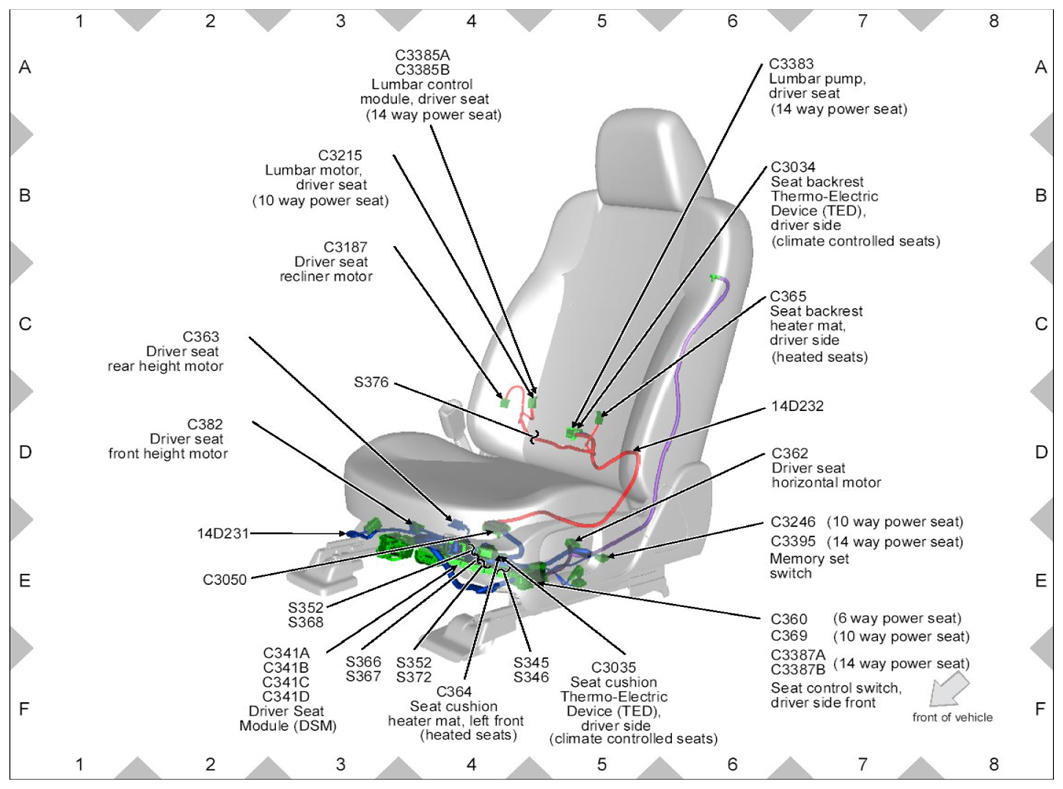

Fig 27: Driver Seat Wiring Harness Connectors Location (2 Of 2)

G07905074

Courtesy of FORD MOTOR CO.

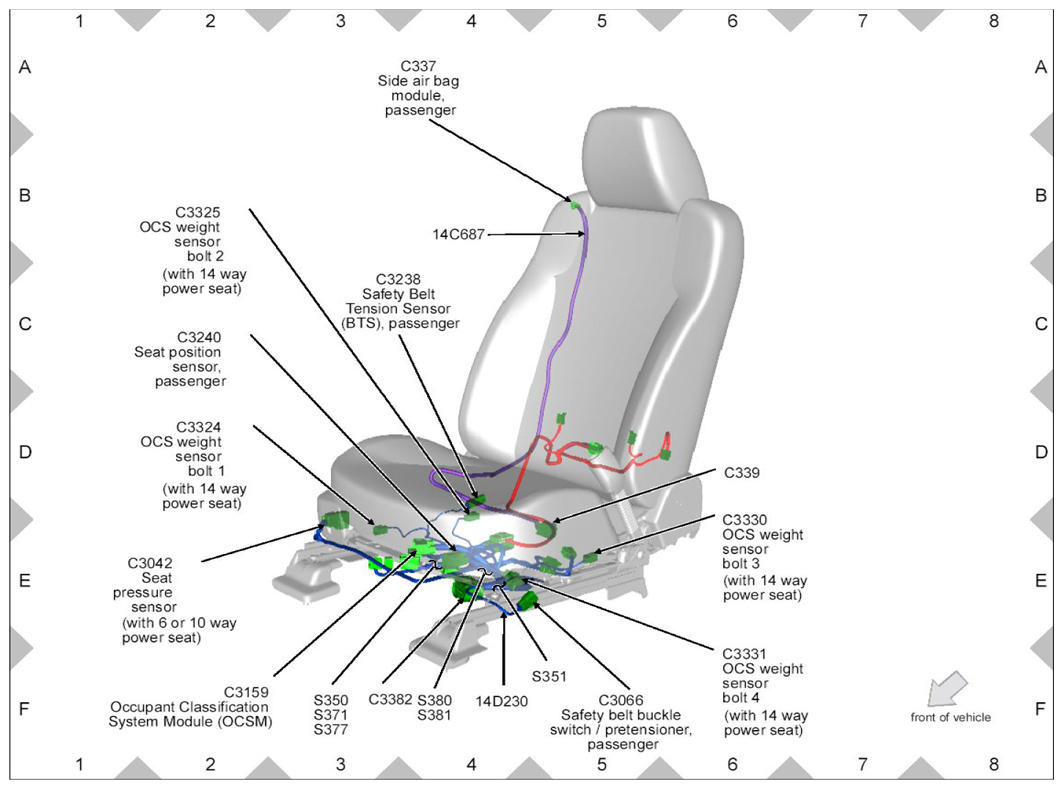

Fig 28: Passenger Seat Wiring Harness Connectors Location (1 Of 2)

G07905075

Courtesy of FORD MOTOR CO.

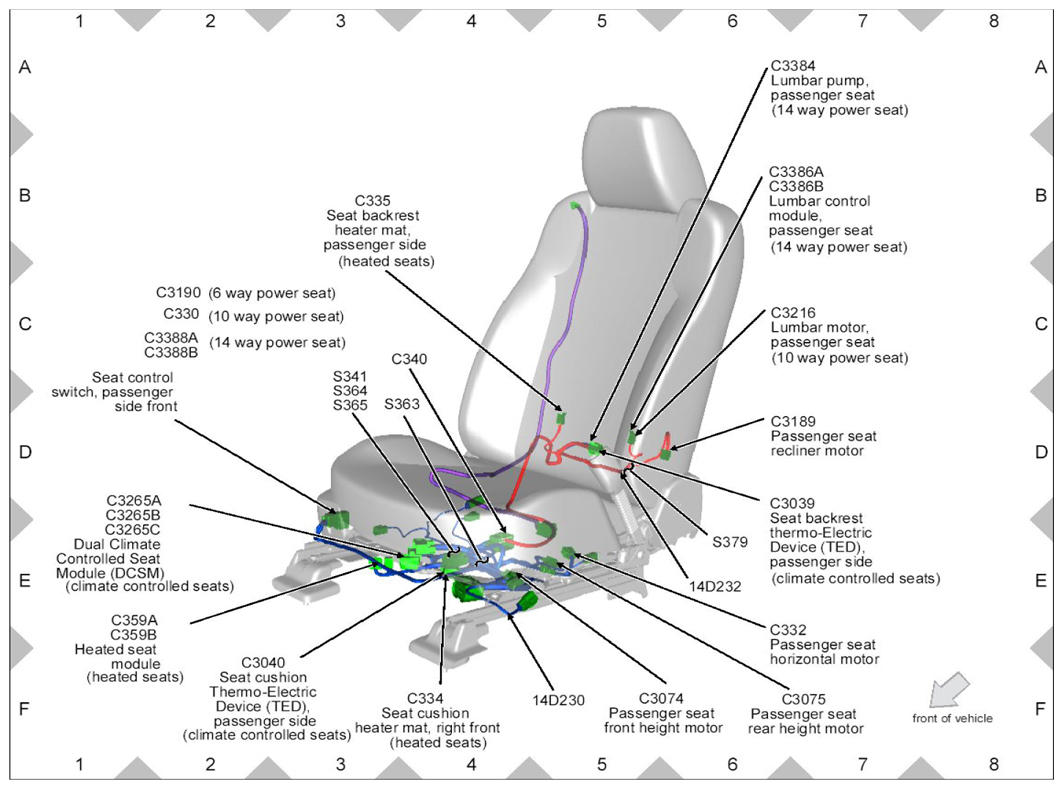

Fig 29: Passenger Seat Wiring Harness Connectors Location (2 Of 2)

G07905076

Courtesy of FORD MOTOR CO.

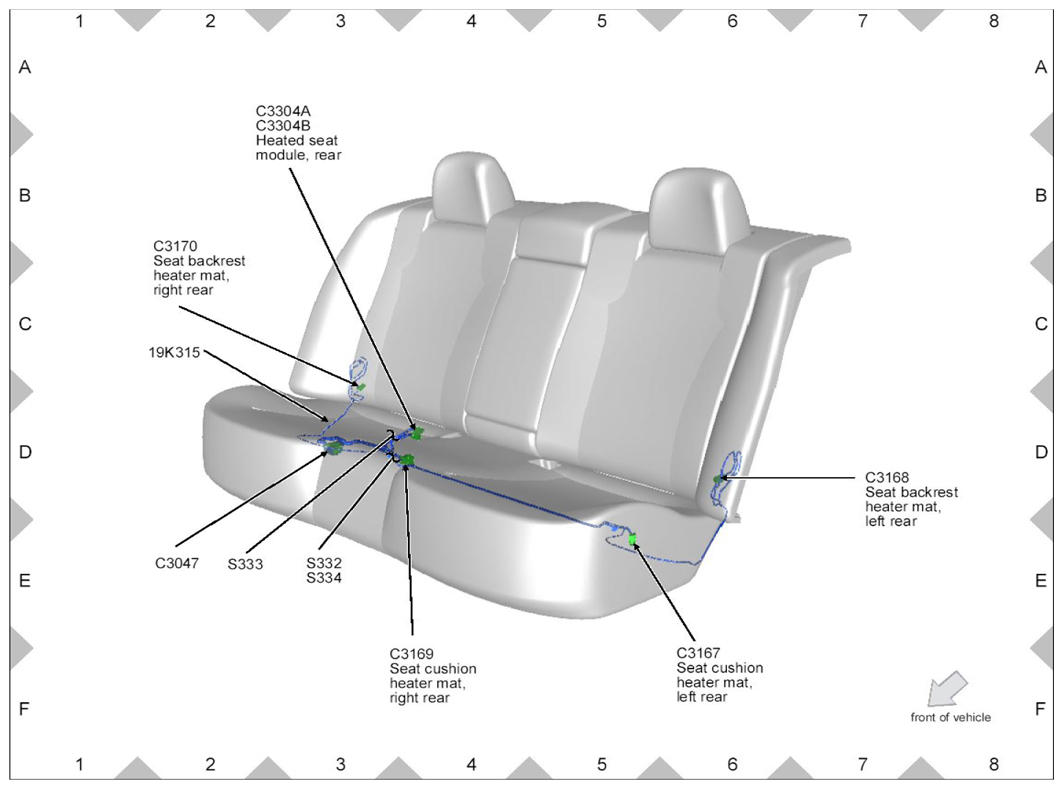

Fig 30: Rear Seat Wiring Harness Connectors Location

G07905077

Courtesy of FORD MOTOR CO.

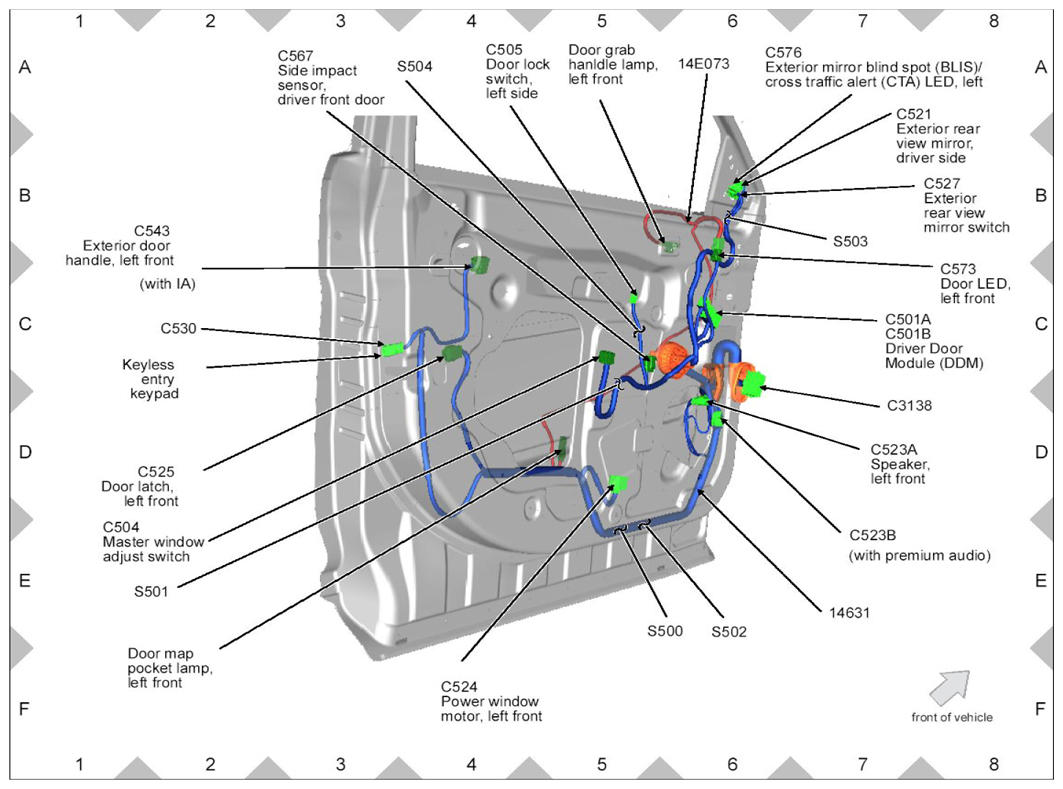

Fig 31: Front Door Wiring Harness Connectors Location - LH

G07905078

Courtesy of FORD MOTOR CO.

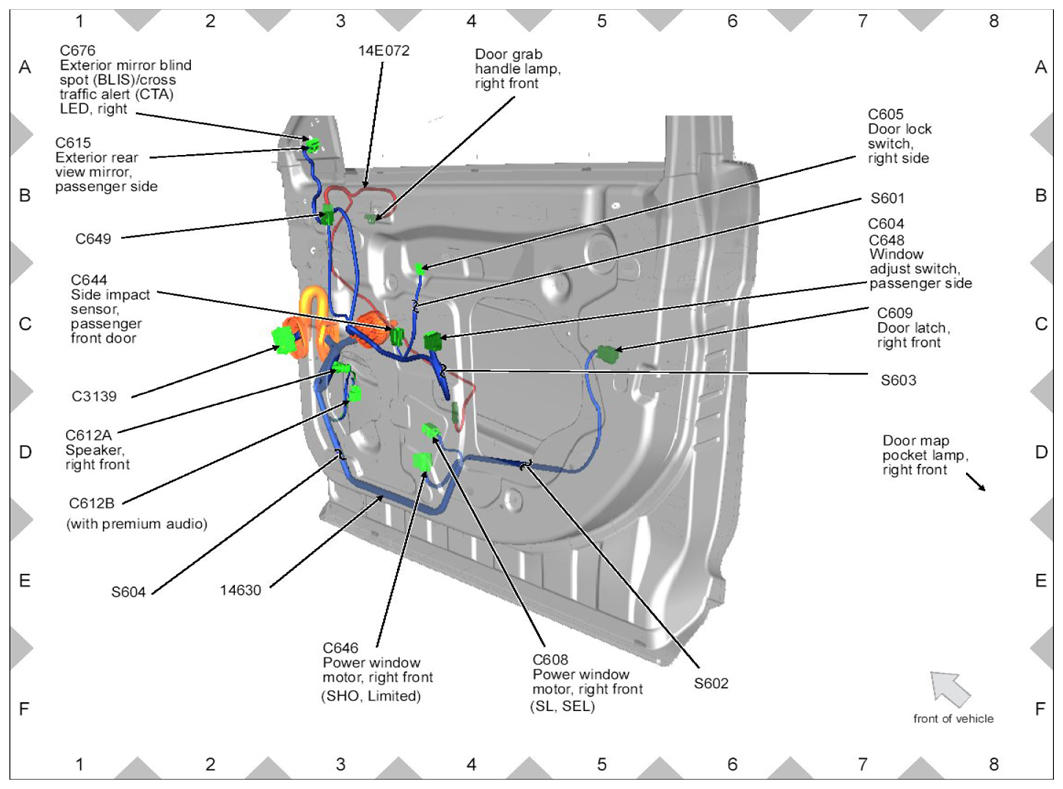

Fig 32: Front Door Wiring Harness Connectors Location - RH

G07905079

Courtesy of FORD MOTOR CO.

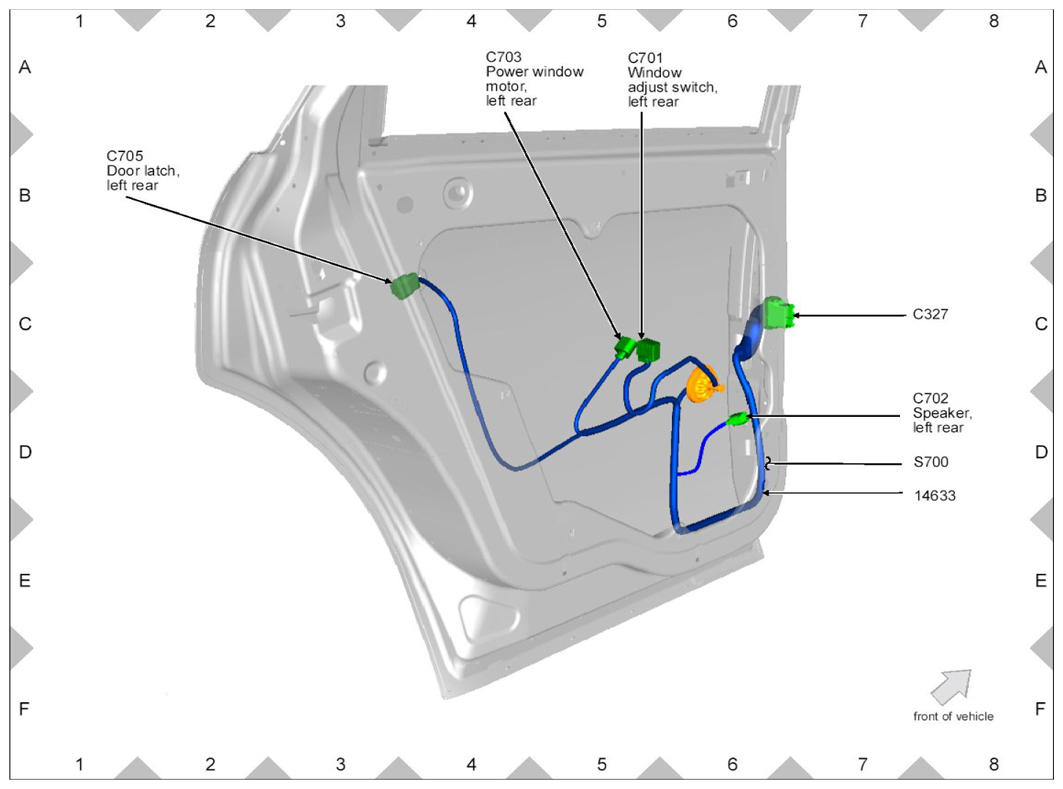

Fig 33: Rear Door Wiring Harness Connectors Location - LH

G07905080

Courtesy of FORD MOTOR CO.

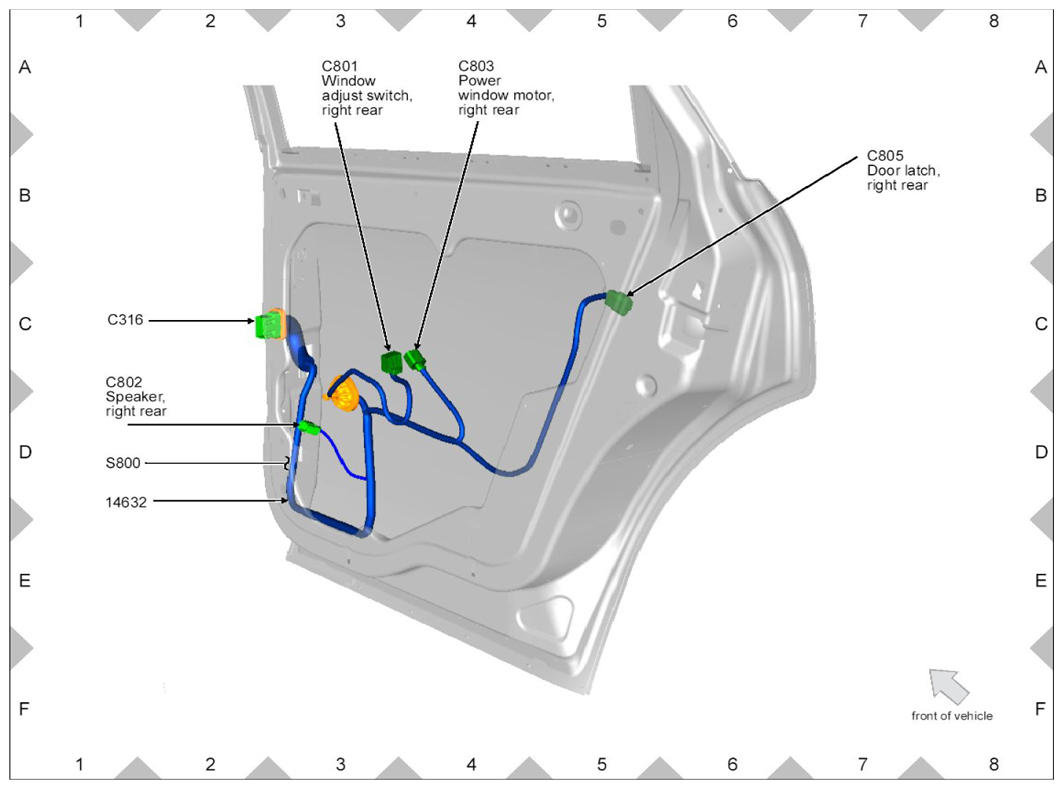

Fig 34: Rear Door Wiring Harness Connectors Location - RH

G07905081

Courtesy of FORD MOTOR CO.

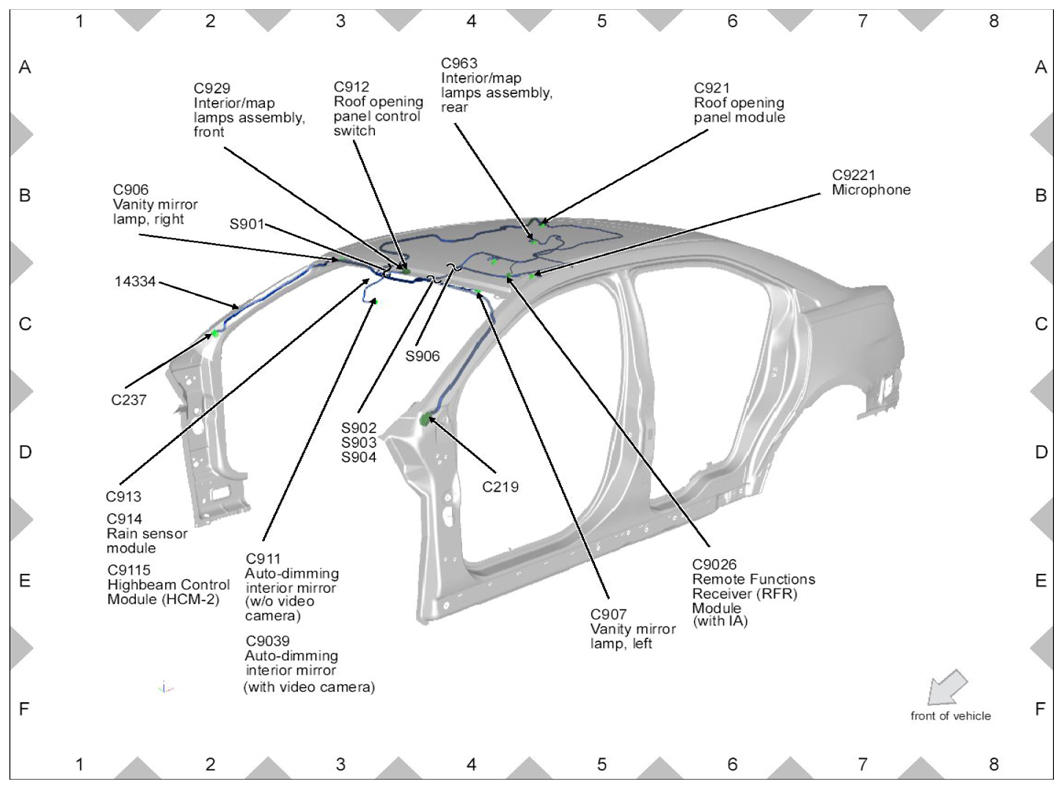

Fig 35: Roof Wiring Harness Connectors Location

G07905082

Courtesy of FORD MOTOR CO.
