Valve Spring Installed Length

NOTE: Refer to ENGINE MECHANICAL - 3.5L or ENGINE MECHANICAL - 3.5L-GTDI for the specification.
  1. Measure the installed length of each valve spring.

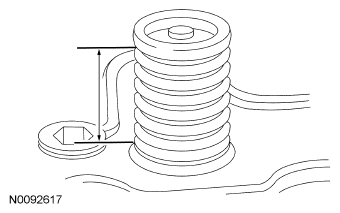

    Fig 1: Identifying Length Of Each Valve Spring
    G06094748Courtesy of FORD MOTOR CO.
