Variable Camshaft Timing (VCT) Oil Control Solenoid: Notes

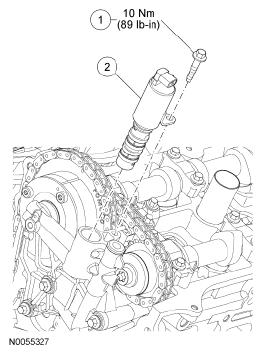

Fig 1: Variable Camshaft Timing (VCT) Oil Control Solenoid Replacement Components With Torque Specifications
G06064206Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W500215 Variable Camshaft Timing (VCT) oil control solenoid bolt
2 6B297 VCT oil control solenoid
