3.5L 4V Fusion/MKZ

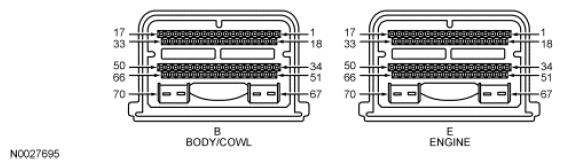

Fig 1: Identifying 140-Pin PCM Harness Connectors (3.5L 4V Fusion/MKZ)
G06054073Courtesy of FORD MOTOR CO.
SENSORS/INPUTS - 3.5L 4V FUSION/MKZ

Sensors/Inputs PCM Pin/PID only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
APP1 B25 4.06 4.06 3.8 3.67 VOLTS
APP2 B26 1.48 1.47 1.69 1.78 VOLTS
APP3 B27 0.92 0.92 1.14 1.23 VOLTS
FPM B30 OFF ON ON ON ON/OFF
MAF B41 0 0.65 1.26 1.6 VOLTS
IAT B43 1.44/57.77 (136) 1.54/53 (127.4) 2.28/37 (98.6) 2.45/34 (93.2) VOLTS/DEG C (DEG F)
FTP B44 2.61/0.61 2.56/0.61 2.54/0.61 2.56/0.61 VOLTS/PSI
BOO B46 OFF ON (E) OFF OFF ON/OFF
BPA B47 OFF ON (E) OFF OFF ON/OFF
O2S12 E3 (I) (D) (D) (D) VOLTS
O2S22 E4 (I) (D) (D) (D) VOLTS
HTRCM12 E23 727 (mA) 727 (mA) 1.29 (A) 570 (mA) mA/A
HTRCM22 E24 758 (mA) 758 (mA) 1.25 (A) 602 (mA) mA/A
O2S11 E28 (I) switching (C) switching (C) switching (C) VOLTS/RICH-LEAN
O2S21 E29 (I) switching (C) switching (C) switching (C) VOLTS/RICH-LEAN
KNOCK_2 E31 250 249 287 422 N/A
CHT E41 3.29/103 (217.4) 3.39/100 (212) 3.39/100 (212) 3.53/96 (204.8) VOLTS/DEG C (DEG F)
KNOCK_1 E49 310 345 379 562 N/A
PSP E65 LOW HIGH LOW LOW HIGH/LOW
HTRCM11 E69 1.58 1.58 2.13 1.54 AMPS
HTRCM21 E70 1.65 1.65 2.08 1.52 AMPS
APP PID 0 0 10 16.5 %
BARO PID 14.3/156.2 14.3/156.2 14.3/156.2 14.24/155.8 PSI/Hz
B+ PID 12.56 13-14 13-14 13-14 VOLTS
CPP/PNP PID NEUTRAL NEUTRAL DRIVE DRIVE NEUTRAL/DRIVE
DECHOKE PID NO NO NO NO YES/NO
FLI PID 30.96 (H) 31.11 (H) 27.59 (H) 24.09 (H) %
LOAD PID 50.15 (I) 16.01 30.54 35.63 %
MISFIRE PID NO NO NO NO YES/NO
MP_LRN PID NO NO NO NO YES/NO
O2BANK1 PID VARIES VARIES VARIES VARIES RICH/LEAN
O2BANK2 PID VARIES VARIES VARIES VARIES RICH/LEAN
RPM PID 0 774.5 1216 1621 RPM
SYNC PID NO YES YES YES YES/NO
VCT1_F PID NO FAULT NO FAULT NO FAULT NO FAULT FAULT/NO FAULT
VCT2_F PID NO FAULT NO FAULT NO FAULT NO FAULT FAULT/NO FAULT
VSS PID 0 0 48 km/h (30 MPH) 89 km/h (55 MPH) km/h / MPH
ACTUATORS/OUTPUTS - 3.5L 4V FUSION/MKZ

Actuators/Outputs PCM Pin/PID only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
EVMV B4 0/OFF 588/VARYING 661/OFF 589/ON mA/OFF-VARYING
EVAPCV B61 0/OFF 0/OFF 0/OFF 0/OFF %/ON/OFF
FP B62 OFF ON ON ON ON/OFF
SPKDUR_6 E10 0 2.25 1.56 1.0 ms
SPKDUR_5 E11 0 2.06 1.56 1.62 ms
SPKDUR_4 E12 0 2.21 1.62 1.81 ms
SPKDUR_3 E15 0 2.21 1.87 1.53 ms
SPKDUR_2 E16 0 2.15 1.71 1.34 ms
SPKDUR_1 E17 0 2.15 1.68 1.75 ms
HTR12 E23 OFF ON ON ON ON/OFF
HTR22 E24 OFF ON ON ON ON/OFF
VCTADV E67 0 -0.06 -30.56 -29.63 DEG
VCTADV2 E68 0 0 -31.31 -30.13 DEG
HTR11 E69 OFF ON ON ON ON/OFF
HTR21 E70 OFF ON ON ON ON/OFF
EGR_EVAL PID YES YES YES YES YES/NO
EVAP020C PID NO NO NO NO YES/NO
EVAP020D PID ALLOW ALLOW ALLOW ALLOW ALLOW/DISALLOW
EVAP020R PID NOT READY NOT READY NOT READY NOT READY READY/NOT READY
EVAPSOAK PID YES YES YES YES YES/NO
EVAP_EVAL PID NO NO NO YES YES/NO
FANDC PID 4.99 4.99 4.99 4.99 %
FANVAR PID 0 0 0 0 %
FUELSYS PID OPEN LOOP CLOSED LOOP CLOSED LOOP CLOSED LOOP OPEN/CLOSED LOOP
LONGFT1 PID (I) -20 TO +20 -20 TO +20 -20 TO +20 %
LONGFT2 PID (I) -20 TO +20 -20 TO +20 -20 TO +20 %
MIL PID OFF OFF OFF OFF ON/OFF
SHRTFT1 PID (I) -10 TO +10 -10 TO +10 -10 TO +10 %
SHRTFT2 PID (I) -10 TO +10 -10 TO +10 -10 TO +10 %
SPARKADV PID 10 13.5 37.25 41.5 DEG
STRT_RLY PID DISABLED DISABLED DISABLED DISABLED ENABLED/DISABLED
VCTADVERR PID 0 0.06 1.18 0.25 DEG
VCTADVERR2 PID 0 0 1.43 0.68 DEG
VCTDC PID 0 0 42.01 48.56 %
VCTDC2 PID 0 0 41.67 49.78 %
OTHER - 3.5L 4V FUSION/MKZ

Other PCM Pin/PID only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
VPWR B51/52 12.31 13-14 13-14 13-14 VOLTS
VREF B33 5 5 5 5 VOLTS
