Mass Air Flow (MAF) Sensor: Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

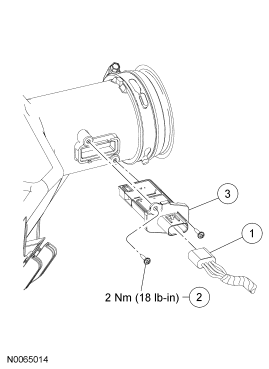

Fig 1: Exploded View Of Mass Air Flow MAF Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Mass air flow (MAF) sensor electrical connector
2	W709287	MAF sensor screw (2 required)
3	12B579	MAF sensor
