Climate Control Module - MKX: Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

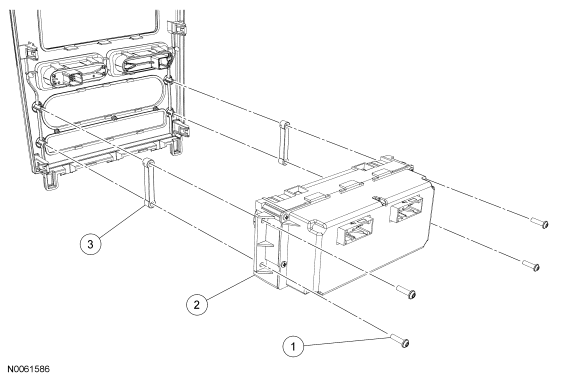

Fig 1: Exploded View Of Climate Control Module - MKX

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W505945	Climate control module screw (4 required)
2	19980	Climate control module
3	78042K50	Climate control module spacer (2 required)
