Front Brake Caliper Anchor Plate: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

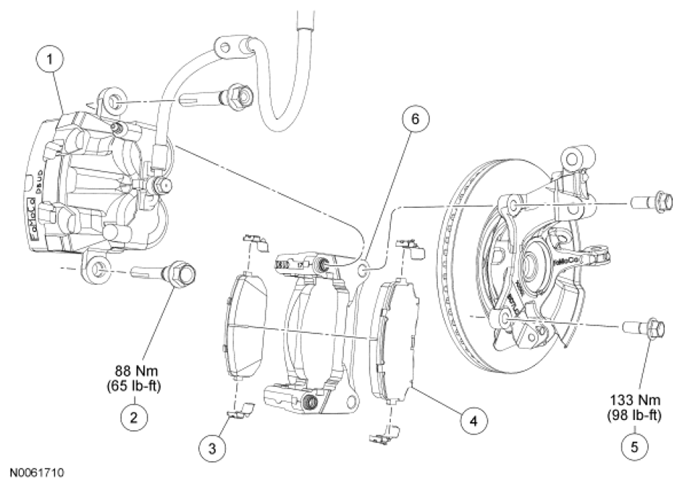

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 2B120 RH/2B121 LH | Brake caliper |
| 2 | 2C150 | Brake caliper guide pin bolt (2 required) |
| 3 | - | Brake pad slide (4 required) (part of 2001) |
| 4 | 2001 | Brake pad (2 required) |
| 5 | 2248 | Brake caliper anchor plate bolt (2 required) |
| 6 | 2B292 RH/2B293 LH | Brake caliper anchor plate |
