Pinpoint Tests AF: Glow Plug System: Introduction

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The wait-to-start indicator ON time is independent from the glow plug control module (GPCM).

NOTE: Make sure that the vehicle batteries are fully charged prior to carrying out the glow plug monitor self-test.

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics. This pinpoint test is intended to diagnose the following:

harness circuits: glow plug, CAN2+, CAN2-, PWRGND, VBATT, and VPWR
glow plugs
GPCM

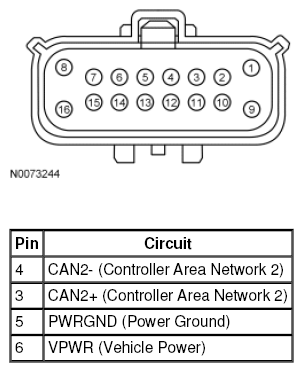

Fig 1: Identifying Glow Plug Control Module-A (GPCM-A) Connector
Courtesy of FORD MOTOR CO.

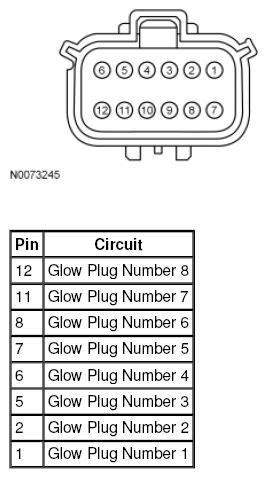

Fig 2: Identifying Glow Plug Control Module-B (GPCM-B) Connector
Courtesy of FORD MOTOR CO.

Fig 3: Identifying Glow Plug Control Module-C (GPCM-C) Connector
Courtesy of FORD MOTOR CO.

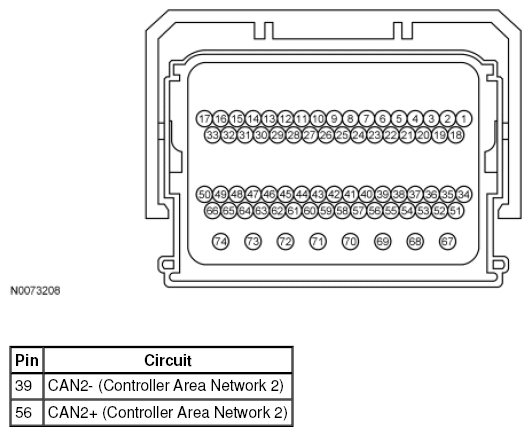

Fig 4: Identifying Powertrain Control Module-B (PCM-B) Connector
Courtesy of FORD MOTOR CO.
