Pinpoint Tests AG: Accelerator Pedal Position (APP) Sensor: Introduction
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
After clearing an APP sensor diagnostic trouble code (DTC) to verify a repair or an intermittent concern, apply the accelerator pedal before carrying out the self-test. Take 10 seconds to carry out a full sweep of the accelerator pedal from fully released to fully applied and back to fully released.
NOTE:
Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.
This pinpoint test is intended to diagnose the following:

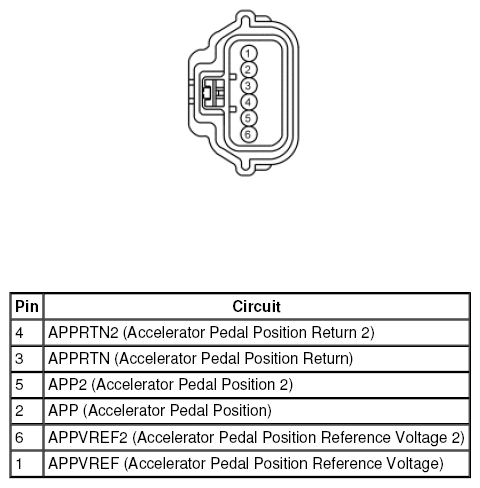

- APP sensor (9F836)
- harness circuits: APP, APP2, APPRTN, APPRTN2, APPVREF, and APPVREF2

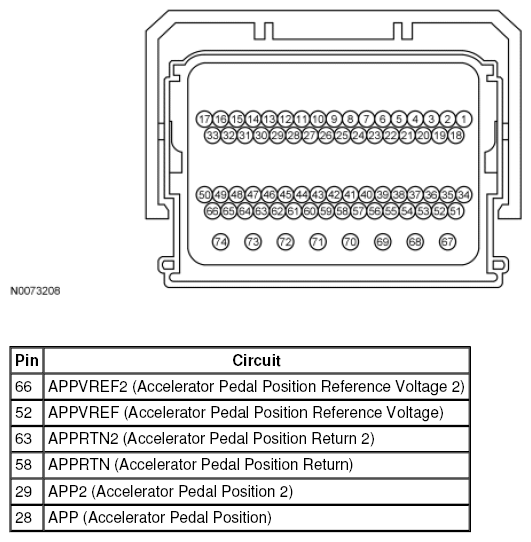

- powertrain control module (PCM) (12A650)
