Pinpoint Tests F: Intake Air Temperature (IAT) Sensor: Introduction

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

harness circuits: IAT, and SIGRTN
mass air flow/intake air temperature (MAF/IAT) sensor (12B579)
powertrain control module (PCM) (12A650)

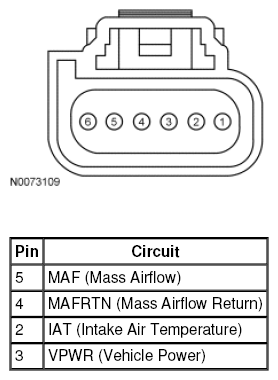

Fig 1: Identifying Mass Airflow/Intake Air Temperature (MAF/IAT) Sensor Connector
Courtesy of FORD MOTOR CO.

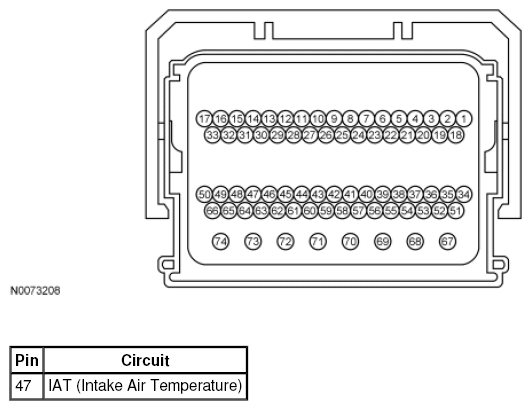

Fig 2: Identifying Powertrain Control Module-B (PCM-B) Connector
Courtesy of FORD MOTOR CO.
