4 Piston Caliper
WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

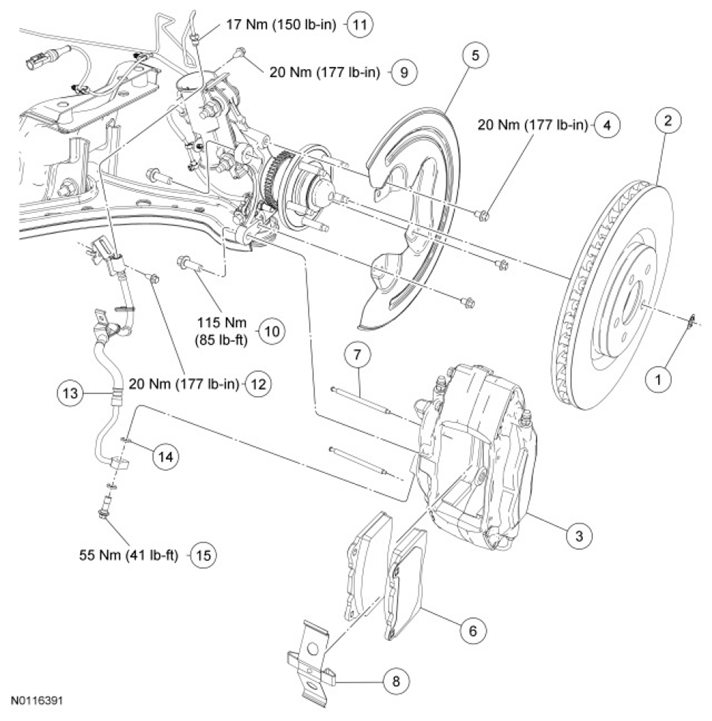

RH shown in illustration, LH similar
| Item | Part Number | Description |
|---|---|---|
| 1 | 383609 | Retaining nut |
| 2 | 1125 | Brake disc |
| 3 | 2B120 RH/ 2B121 LH | Brake caliper |
| 4 | W500020 | Brake disc shield bolt (3 required) |
| 5 | 2K004 | Brake disc shield |
| 6 | 2001 | Brake pad (2 required) |
| 7 | - | Brake pad mounting pin (2 required) (part of 2B164) |
| 8 | - | Spring retainer clip (part of 2B164) |
| 9 | N802191 | Brake hose-to-strut bolt |
| 10 | W710233 | Brake caliper bolt (2 required) |
| 11 | - | Brake tube fitting (part of 2C296) |
| 12 | N802191 | Brake flexible hose bracket bolt |
| 13 | 2078 | Brake flexible hose |
| 14 | 2149 | Copper washer (2 required) |
| 15 | W712275 | Brake caliper flow bolt |
- Refer to the appropriate procedures and/or the exploded views in this service information for any Warnings, Notices, Notes, Materials, Specifications and Special Tools. Items in the exploded view may not be listed in the order of removal.
NOTE:
A revised part, with the same base part number, has been released for the RH brake hose. When installing a new RH brake hose, position the anti-rotation tab on the mounting bracket toward the front of the vehicle and install the bolt with the head toward the rear of the vehicle.
