In-Vehicle Temperature and Humidity Sensor: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

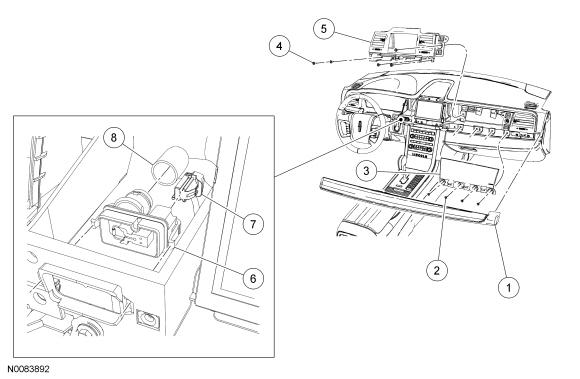

| Item | Part Number | Description |
|---|---|---|
| 1 | 5404388 | RH instrument panel finish moulding |
| 2 | W707628 | Instrument panel finish panel screw (4 required) |
| 3 | 54046A62 | Instrument panel finish panel |
| 4 | W707628 | Center instrument panel finish panel screw (5 required) |
| 5 | 5404302 | Center instrument panel finish panel |
| 6 | 19C734 | In-vehicle temperature sensor |
| 7 | - | In-vehicle temperature sensor electrical connector (part of 14401) |
| 8 | 19D888 | In-vehicle temperature sensor aspirator hose |
