Register - Center: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

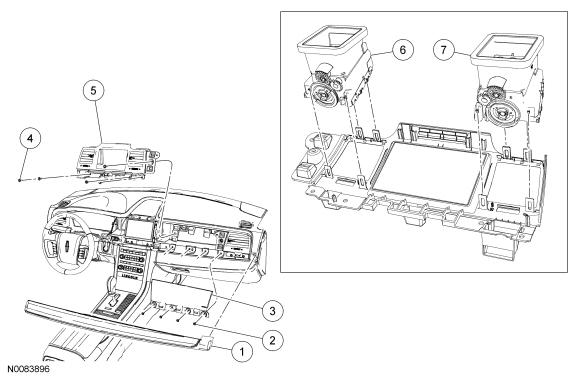

| Item | Part Number | Description |
|---|---|---|
| 1 | 5404388 | RH instrument panel finish moulding |
| 2 | W707628 | Instrument panel finish panel screw (4 required) |
| 3 | 54046A62 | Instrument panel finish panel |
| 4 | W707628 | Center instrument panel finish panel screw (5 required) |
| 5 | 5404302 | Center instrument panel finish panel |
| 6 | 19893 | RH center register |
| 7 | 19893 | LH center register |
