Compressor to Condenser Discharge Line - 3.7L Ti-VCT: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Material
| Item | Specification |
| Motorcraft ® PAG Refrigerant Compressor Oil YN-12-D | WSH-M1C231-B |

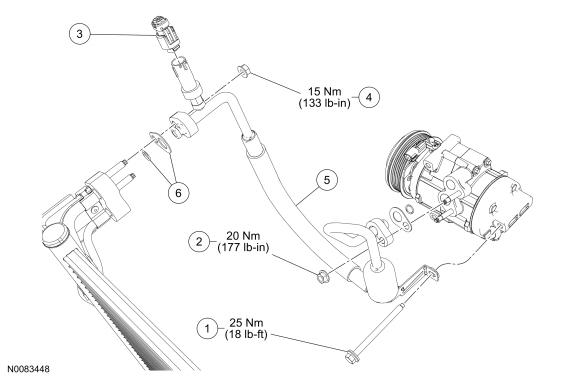

| Item | Part Number | Description |
|---|---|---|
| 1 | W712611 | Rear A/C compressor bolt |
| 2 | W520413 | A/C compressor discharge fitting nut |
| 3 | - | A/C pressure transducer electrical connector (part of 14290) |
| 4 | W520413 | Condenser inlet fitting nut |
| 5 | 19972 | Compressor-to-condenser discharge line |
| 6 | 19B596 | O-ring seal and gasket seal kit (1 required) |
