Register - Passenger Side: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

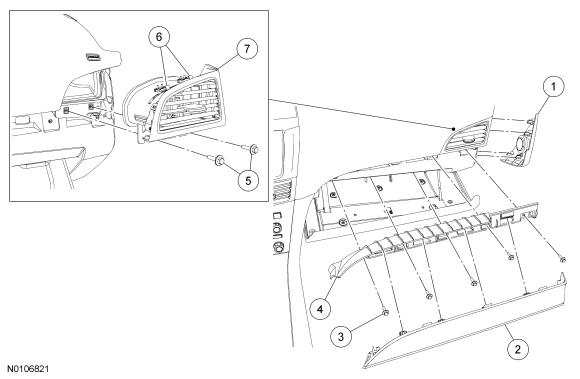

| Item | Part Number | Description |
|---|---|---|
| 1 | 7404480 | RH instrument panel side trim panel |
| 2 | 7404388 | RH instrument panel finish applique |
| 3 | W707628 | RH instrument panel finish moulding screw (5 required) |
| 4 | 74044A59 | RH instrument panel finish moulding |
| 5 | W707628 | Passenger side register screws (2 required) |
| 6 | - | Passenger side register clips (part of 19893) |
| 7 | 19893 | Passenger side register |
