Seat Backrest Front: Disassembly

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

Seat Backrest - Trim Parts

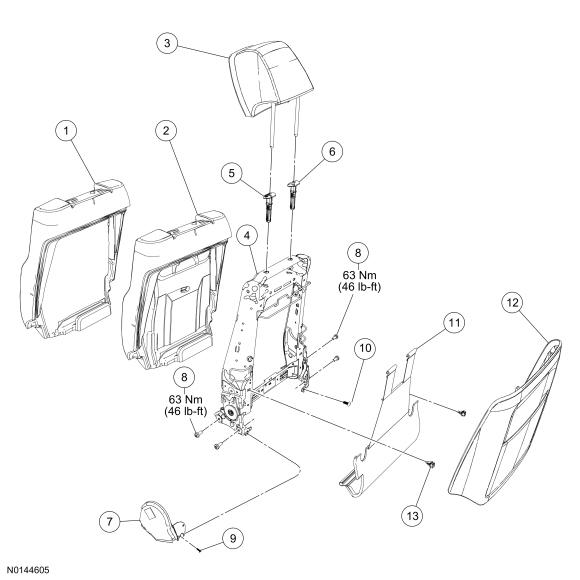

Fig 1: Seat Backrest - Trim Parts With Torque Specifications
GFD95673Courtesy of FORD MOTOR CO.
Item Part Number Description
1 64416 RH/ 64417 LH RH/ 64417 LH Backrest cover
2 64810 RH/ 64811 LH RH/ 64811 LH Backrest foam pad
3 610A62 Head restraint
4 61018 Backrest frame
5 610A16 Head restraint guide sleeve, master
6 610A18 Head restraint guide sleeve, slave
7 62186 RH/ 62187 LH RH/ 62187 LH Recliner cover
8 W702016 Recliner-to-seat track bolts (4 required)
9 W710752 Scrivet
10 N811404 Pin-type retainer (1 required)
11 644K64 Carpet flap toe-kick
12 60770 Backrest panel
13 W714417 Backrest panel clip (2 required)

Seat Backrest - Frame Parts

GFD95503Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 19N550 Backrest Thermo-Electric Device (TED) (if equipped)
2 W790133 Power lumbar clip (2 required)
3 65500 Power lumbar adjust assembly (if equipped)
4 611D10 Side air bag module
5 14D232 Backrest wire harness
6 61018 Backrest frame
7 W520111 Side air bag module-to-backrest frame nut (2 required)
8 14547 Power recline motor
9 61479 Recliner shaft E-clip
10 613A68 Long recliner shaft (if equipped)
11 613A68 Sleeve (if equipped)
12 613A68 Short recliner shaft (if equipped)
13 W701242 Power recline motor bolt
14 W702016 Recliner-to-seat track bolts (4 required)
15 65500 Limo or livery power lumbar adjust assembly (if equipped)
WARNING: Always carry a live airbag with the deployment door, trim cover or tear seam pointed away from the body. Do not place a live airbag down with the deployment door, trim cover or tear seam facing down. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.
WARNING: Front seat backrest trim covers installed on seats equipped with seat side airbags cannot be repaired. A new trim cover must be installed. Cleaning is permissible. Failure to follow these instructions may result in the seat side airbag deploying incorrectly and increase the risk of serious personal injury or death in a crash.
NOTE: If a side air bag deployment took place, a new seat backrest foam pad, backrest cover, deployment chute and side air bag module and nuts must be installed. The seat backrest frame should be replaced if necessary.

All seats

  1. 1.

    Remove the seat backrest. Refer to Seat Backrest - Front .

  1. 2.

    Remove the 2 head restraint guide sleeves. Refer to Head Restraint Guide Sleeve .

  1. 3.

    Remove the backrest panel.

    1. 1.

      Pull out at the bottom on each side, quickly and firmly, releasing the retainers.

    1. 2.

      NOTE: The clips in the middle of the backrest panel can be damaged if the bottom of the backrest panel is not pivoted away from the seat.

      Pivot the bottom of the backrest panel out as far as it will go and slide the backrest panel down, disengaging the upper hooks.

      • Remove the backrest panel.

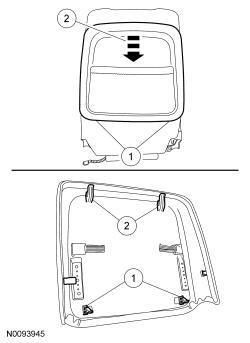

GFD95537Courtesy of FORD MOTOR COMPANY

  1. 4.

    Disengage the 2 J-clips from the backrest wires and remove the carpet flap toe-kick.
GFD95674Courtesy of FORD MOTOR COMPANY

  1. 5.

    Release the backrest cover hook-and-loop strips near the bottom and at the sides.
GFD95539Courtesy of FORD MOTOR COMPANY

  1. 6.

    Release the backrest cover hook-and-loop strips and J-clip attached to the recliner.
    • Repeat for the other side.
GFD95540Courtesy of FORD MOTOR COMPANY

  1. 7.

    Disengage all accessible backrest cover J-clips.

All seats except limo or livery

  1. 8.

    Remove the backrest Thermo-Electric Device (TED).

    1. 1.

      Disconnect the electrical connector and separate the pin-type retainer from the backrest frame.

    1. 2.

      Disengage the backrest TED from the backrest foam pad wire.

    1. 3.

      Disengage the backrest TED from the backrest frame wire and remove the backrest TED.

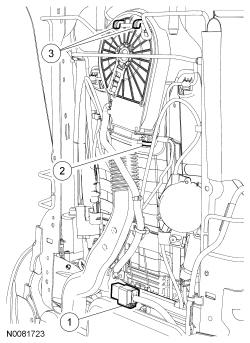

GFD95544Courtesy of FORD MOTOR COMPANY

All Seats

  1. 9.

    Release all remaining backrest cover J-clips attached to the backrest frame.

  1. 10.

    Disengage the retainer and open the deployment chute.

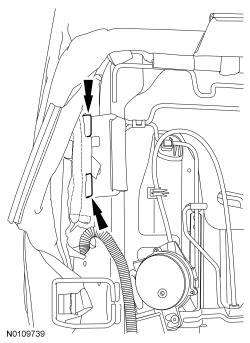

GFD95541Courtesy of FORD MOTOR COMPANY

  1. 11.

    Remove the backrest frame from the backrest foam pad and backrest cover assembly.

All seats except limo or livery

  1. 12.

    Separate the side air bag module wire harness retainers from the backrest frame.
GFD95675Courtesy of FORD MOTOR COMPANY

  1. 13.

    Remove the nuts and the side air bag module with wire harness.

  1. 14.

    Remove the power lumbar assembly in the following sequence.

    1. 1.

      Disconnect the 2 power lumbar motor electrical connectors.

    1. 2.

      Remove and discard the 2 clips at the top of the power lumbar assembly retaining it to the backrest frame wire.

    1. 3.

      Release the 2 retainers at the bottom of the power lumbar assembly.

    1. 4.

      Remove the power lumbar assembly.

Limo or livery seats

  1. 15.

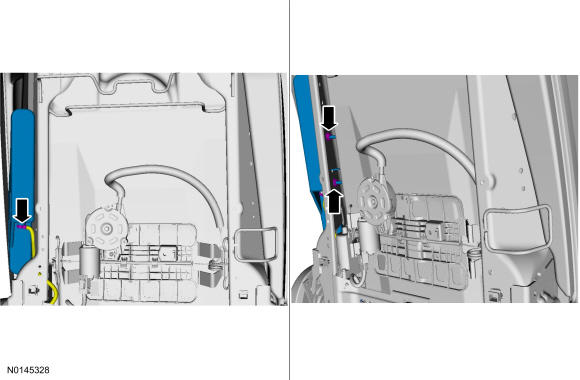

GFD95676Courtesy of FORD MOTOR COMPANY

  1. 16.

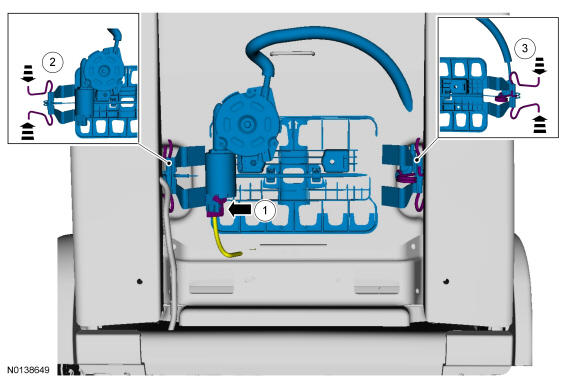

GFD95546Courtesy of FORD MOTOR COMPANY

All seats

  1. 17.

    NOTE: Do not rotate the recliner motor or recliner motor shafts until the long shaft is connected to the short shaft and sleeve. Failure to do so will cause the inboard and outboard recliners to become out of synchronization.

    Remove the E-clip on the recliner shaft and the recline motor bolt.

GFD95549Courtesy of FORD MOTOR COMPANY

  1. 18.

    Release the 2 clips (one shown) and slide the sleeve back on the recliner shaft.
GFD95550Courtesy of FORD MOTOR COMPANY

  1. 19.

    Remove the power recline motor.

    1. 1.

      Slide the recliner shaft assembly out of the recliner and remove the short recliner shaft.

    1. 2.

      Remove the sleeve from the long recliner shaft.

    1. 3.

      Slide the long recliner shaft out of the recline motor.

    1. 4.

      Disconnect the electrical connector and remove the power recline motor.
      • If necessary, remove the long recliner shaft from the recliner.
GFD95551Courtesy of FORD MOTOR COMPANY

  1. 20.

    NOTE: Note all wire harness routing for correct installation.

    Remove the backrest wire harness(es) from the backrest frame.

  1. 21.

    Remove the backrest cover from the backrest foam pad.
    • Inside out the backrest cover and remove all the hog rings.
