Seat Wire Harness Routing
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
Seat Wire Harness Routing
- 1.
For correct front passenger seat cushion wire harness routing, refer to the following views.- For power passenger seat track, match the numbers in the wire harness view to the numbers in the retainer and connector location views and attach accordingly.
- For manual passenger seat track, match the view to the seat track and wire harness being assembled and attach accordingly.
- Wire harness retainers and electrical connectors are called out in assembly order.
- 2.NOTE: Illustration shows Occupant Classification System(OCS) weight sensor bolts in their installed position with the seat in the vehicle.
Verify the correct passenger seat OCS weight sensor bolt electrical connector positions using the illustration.
- For correct identification and placement of the 2 OCS weight sensor bolt electrical connectors, use the wire colors identified in SUPPLEMENTAL RESTRAINT SYSTEM Connecting the incorrect connector to a sensor causes DTCs to set and results in an unsuccessful OCS Reset.
Power Passenger Seat Track - Limo and Livery Vehicles Only

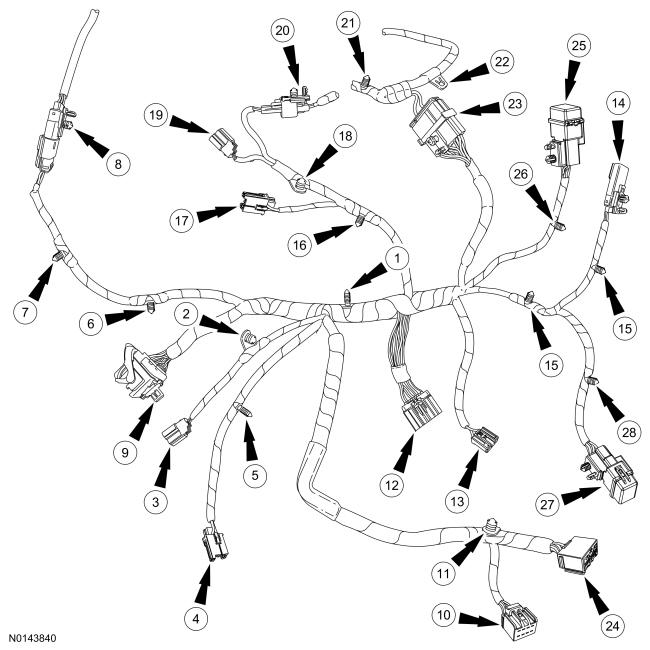

Wire Harness View
| Item | Description | ||
|---|---|---|---|
| 1 | Seat wire harness main retainer | ||
| 2 | OCS weight sensor bolt "D" wire harness retainer | ||
| 3 | OCS weight sensor bolt "D" electrical connector | ||
| 4 | Front height motor electrical connector | ||
| 5 | Front height motor wire harness retainer | ||
| 6 | Safety belt buckle and pretensioner wire harness retainer | ||
| 7 | Safety belt buckle and pretensioner wire harness retainer | ||
| 8 | Safety belt buckle and pretensioner electrical connector and retainer | ||
| 9 | Seat main wire harness electrical connector and retainer | ||
| 10 | Seat control switch electrical connector (1) | ||
| 11 | Seat control switch wire harness retainer | ||
| 12 | OCSM electrical connector | ||
| 13 | Rear height motor electrical connector | ||
| 14 | BTS wire harness electrical connector and retainer | ||
| 15 | BTS wire harness retainer | ||
| 16 | Seat wire harness retainer | ||
| 17 | Horizontal motor electrical connector | ||
| 18 | OCS weight sensor bolt "C" wire harness retainer | ||
| 19 | OCS weight sensor bolt "C" electrical connector | ||
| 20 | Side air bag electrical connector and retainer | ||
| 21 | Backrest wire harness retainer | ||
| 22 | Backrest wire harness retainer | ||
| 23 | Backrest wire harness electrical connector and retainer | ||
| 24 | Seat control switch electrical connector (1) | ||
| 25 | Aft seat relay and retainer (limo and livery vehicles only) | ||
| 26 | Aft seat relay wire harness retainer (limo and livery vehicles only) | ||
| 27 | Forward seat relay and retainer (limo and livery vehicles only) | ||
| 28 | Forward seat relay wire harness retainer (limo and livery vehicles only) | ||
|
|||
() Make sure the wire harness passes on the correct side as shown.

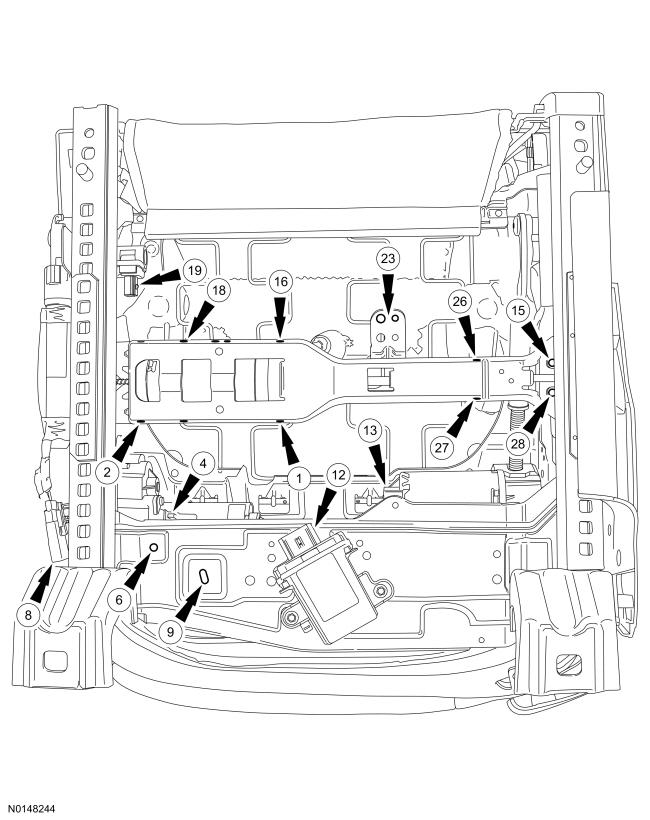

Wire Harness Retainer and Connector Location View
NOTE:
See supporting views for missing numbers.

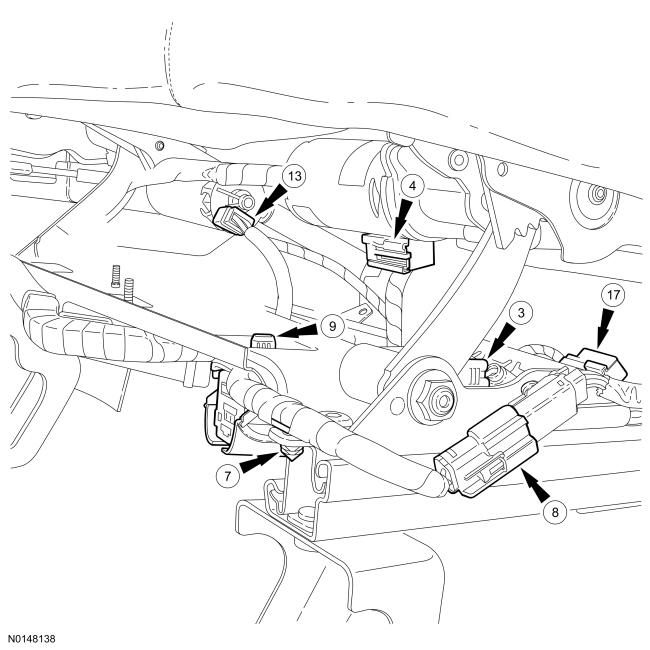

Retainer and Connector Location View, Outboard Side From Underneath

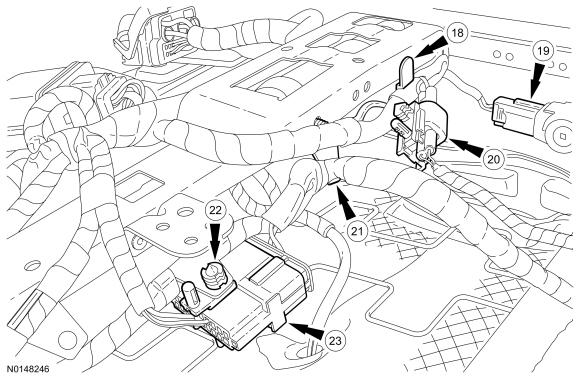

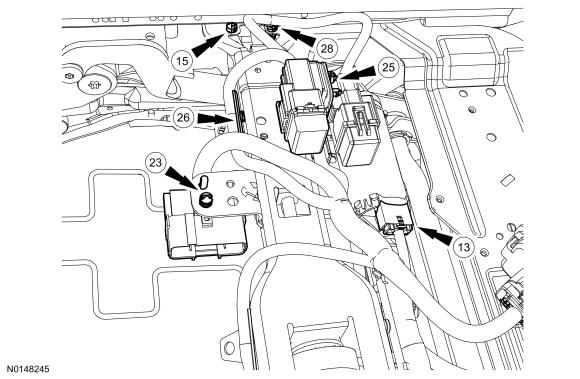

Retainer and Connector Location View, Front Inboard

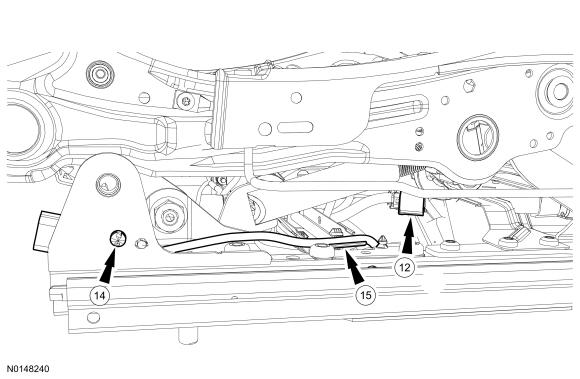

Retainer and Connector Location View, Outboard Side
Retainer and Connector Location View, Backrest

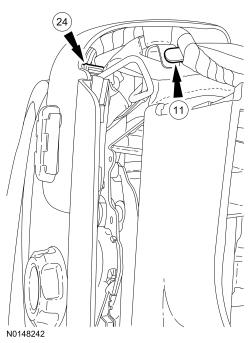

Retainer and Connector Location View, Seat Control Switch

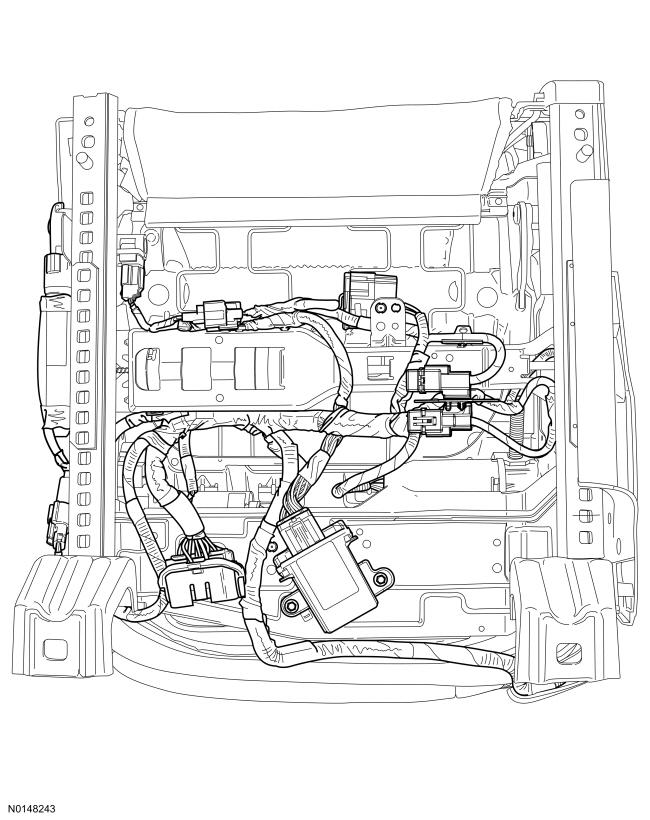

Wire Harness Installed View - Limo and Livery Vehicles
