Seat Second Row: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
Seat - Second Row

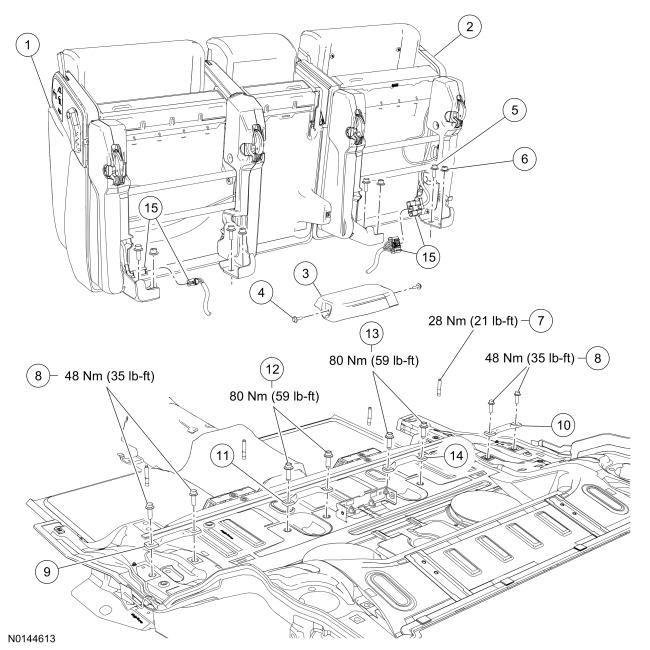

60/40 Bench Seat
| Item | Part Number | Description |
|---|---|---|
| 1 | - | 60 percent seat assembly |
| 2 | - | 40 percent seat assembly |
| 3 | 04752 | Console bracket cover |
| 4 | W706862 | Screw (2 required) |
| 5 | W708175 | Seat-to-floor bolt (4 required) |
| 6 | N802068 | Seat-to-floor nut (4 required) |
| 7 | W708166 | Floor stud (4 required) |
| 8 | W505275 | Outboard striker-to-floor bolts (M10) (4 required) |
| 9 | 62440 | LH outboard striker (1 each required) |
| 10 | 62440 | RH outboard striker (1 each required) |
| 11 | 62441 | LH inboard striker (1 each required) |
| 12 | W714306 | LH inboard striker-to-floor bolts (M14) (2 required) |
| 13 | W505285 | RH inboard striker-to-floor bolts (M12) (2 required) |
| 14 | 62441 | RH inboard striker (1 each required) |
| 15 | - | Electrical connectors (part of 14A005/ 14B686 RH/ 14B687 LH) |

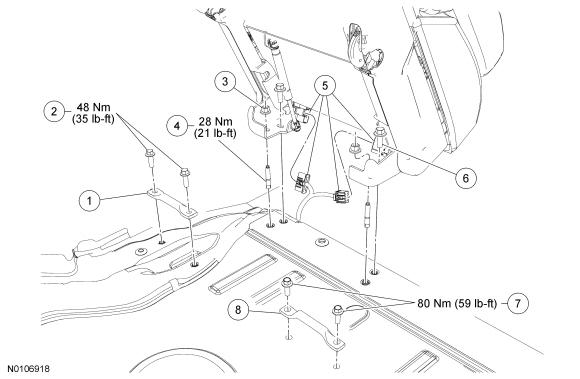

40/40 Seats
NOTE:
LH seat shown, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 62440 | LH outboard striker (1 each required) |
| 2 | W505275 | Outboard striker-to-floor bolts (M10) (4 required) |
| 3 | N802068 | Seat-to-floor nut (4 required) |
| 4 | W708166 | Floor stud (4 required) |
| 5 | - | Electrical connectors (part of 14A005/ 14B687) |
| 6 | W708175 | Seat-to-floor bolt (4 required) |
| 7 | W714306 | LH inboard striker-to-floor bolts (M14) (2 required) |
| 7 | W505285 | RH inboard striker-to-floor bolts (M12) (2 required) |
| 8 | 62441 | RH inboard striker (1 each required) |
