Mass Air Flow (MAF) Sensor: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

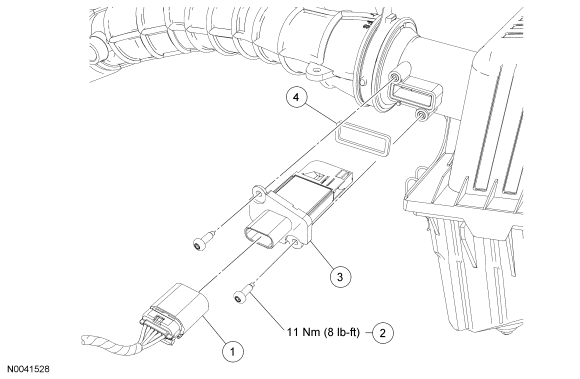

| Item |
Part Number |
Description |
| 1 |
- |
Mass air flow (MAF) sensor electrical connector (part of 14A464) |
| 2 |
W709287 |
MAF sensor bolt (2 required) |
| 3 |
12B605 |
MAF sensor |
| 4 |
- |
MAF sensor gasket |
