Powertrain Control Module (PCM): Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

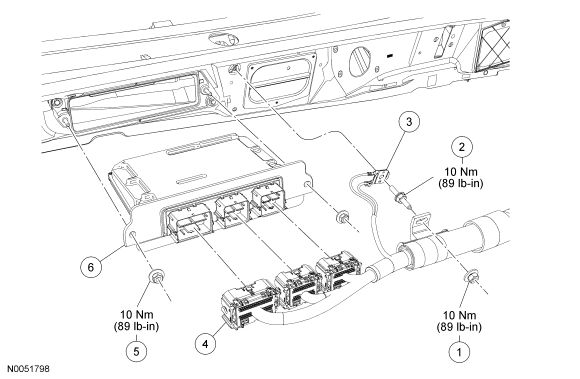

| Item | Part Number | Description |
|---|---|---|
| 1 | N621906 | Powertrain control module (PCM) wiring harness retainer nut |
| 2 | N806925 | Ground wire stud bolt |
| 3 | - | Ground wire terminals (2 required) (part of 12B637) |
| 4 | 14A464 | PCM electrical connectors (3 required) (part of 12B637) |
| 5 | N621906 | PCM nuts |
| 6 | 12A651 | PCM |
