Blower Motor: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

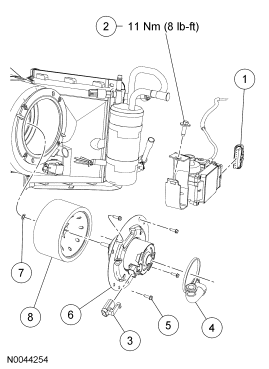

| Item | Part Number | Description |
|---|---|---|
| 1 | 14290 | Speed control actuator electrical connector |
| 2 | - | Speed control actuator bolt |
| 3 | 14290 | Blower motor electrical connector |
| 4 | 19A786 | Blower motor vent tube |
| 5 | W701696 | Blower motor screw (4 required) |
| 6 | 19805 | Blower motor |
| 7 | 18A287 | Blower motor wheel clip |
| 8 | 19834 | Blower motor wheel |
