Compressor Manifold and Tube Assembly - 2.3L: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

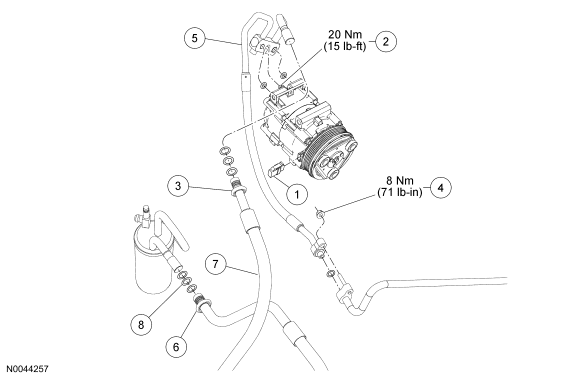

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A280 | Clutch field coil electrical connector |
| 2 | W704692 | A/C compressor manifold bolt |
| 3 | - | Compressor suction fitting (part of 19867) |
| 4 | W520413 | Compressor-to-condenser line fitting nut |
| 5 | 19D734 | Compressor manifold and tube assembly |
| 6 | - | Suction accumulator outlet fitting (part of 19867) |
| 7 | 19867 | Suction accumulator-to-compressor line |
| 8 | 19E889 | O-ring seal (9 required) |
