Tie Rod - Inner: Notes
SPECIAL TOOLS
| Installer, Constant Velocity Joint Boot Clamp 205-343 (T95P-3514-A) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |
NOTE:

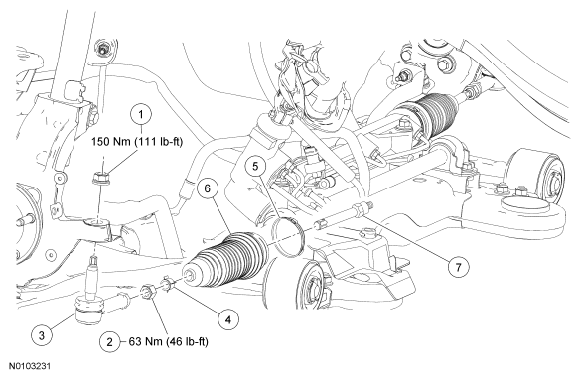

Hydraulic Power Assist Steering (HPAS) gear shown in illustration, Electronic Power Assist Steering (EPAS) gear similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W710015 | Outer tie-rod end nut |
| 2 | 14094 | Tie-rod jam nut (also part of 3280) |
| 3 | 3A130 | Outer tie-rod end |
| 4 | 3C650 | Hydraulic Power Assist Steering (HPAS) outer bellows boot clamp |
| 4 | - | Electronic Power Assist Steering (EPAS) outer bellows boot clamp (part of 3332 bellows boot kit) |
| 5 | 3K745 | HPAS inner bellows boot clamp |
| 5 | - | EPAS inner bellows boot clamp (part of 3332 bellows boot kit) |
| 6 | 3K661 | HPAS inner tie-rod bellows boot |
| 6 | - | EPAS inner tie-rod bellows boot (part of 3332 bellows boot kit) |
| 7 | 3280 | Inner tie rod |
