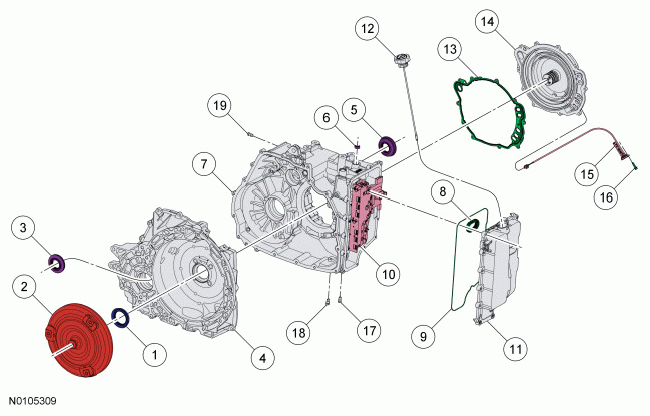

| 1 |
7F401 |
Torque converter hub seal |
| 2 |
7902 |
Torque converter |
| 3 |
1177 |
RH halfshaft seal (Front Wheel Drive (FWD) only) |
| 4 |
7005 |
Torque converter housing |
| 5 |
1177 |
LH halfshaft seal |
| 6 |
7F337 |
Manual lever shaft seal |
| 7 |
7005 |
Transaxle case |
| 8 |
7B329 |
Main control cover-to-solenoid body seal |
| 9 |
7F396 |
Main control cover gasket |
| 10 |
7Z369 |
Solenoid body assembly |
| 11 |
7G004 |
Main control cover |
| 12 |
7A020 |
Transmission fluid level indicator |
| 13 |
7223 |
Transaxle case-to-transaxle cover gasket |
| 14 |
7222 |
Transaxle cover |
| 15 |
7M101 |
Turbine Shaft Speed (TSS) sensor |
| 16 |
7J356 |
TSS bolt |
| 17 |
7A010 |
Line pressure tap plug |
| 18 |
7A010 |
Transmission fluid drain plug |
| 19 |
7A010 |
Lubrication circuit tap plug |
