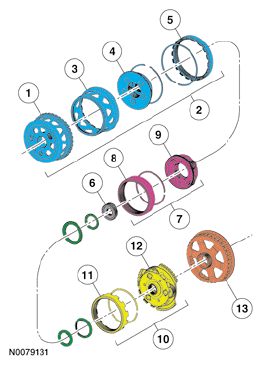

| 1 |
7D064 |
Gear and shell assembly - front sun |
| 2 |
7D491 |
Front planetary carrier/rear planetary ring gear assembly |
| 3 |
7M022 |
Planetary carrier shell - front |
| 4 |
7N470 |
Carrier - front planetary |
| 5 |
7L487 |
Ring gear - rear planetary |
| 6 |
7D063 |
Gear - center planetary sun |
| 7 |
7D491 |
Center planetary carrier/front ring gear assembly |
| 8 |
7A153 |
Ring gear - front planetary |
| 9 |
7D055 |
Planetary carrier assembly - center |
| 10 |
7D491 |
Rear planetary carrier/center ring gear assembly |
| 11 |
7D392 |
Gear - center ring |
| 12 |
7G226 |
Carrier - rear planetary |
| 13 |
7A091 |
Gear - rear planetary sun |
