Exploded View: Assembly

Select a new differential or transfer shaft shim. For additional information, refer to DIFFERENTIAL SHIM SELECTION .
Assemble the Handle 205-153 and the Oil Dam Seal Installer 307-583 and install a new transfer shaft fluid dam on the Oil Dam Seal Installer 307-583.

Fig 1: Installing Transfer Shaft Fluid Dam On Oil Dam Seal Installer 307-583
Courtesy of FORD MOTOR CO.

NOTE: Support the torque converter housing using blocks of wood, or damage to the torque converter housing may occur.

Fig 2: Installing Fluid Dam In Torque Converter Housing Using Handle 205-153

Courtesy of FORD MOTOR CO.

Using the Handle 205-153 and the Oil Dam Seal Installer 307-583, install the fluid dam in the torque converter housing.
Inspect the transfer shaft fluid dam to be sure it is seated evenly into the torque converter housing.

Fig 3: Locating Transfer Shaft Fluid Dam
Courtesy of FORD MOTOR CO.
Install the transfer shaft preload shim in the torque converter housing.

Fig 4: Installing Transfer Shaft Preload Shim In Torque Converter Housing
Courtesy of FORD MOTOR CO.
Using the Bearing Cup Installer 307-576, press the transfer shaft bearing cup in the torque converter housing.

Fig 5: Pressing Transfer Shaft Bearing Cup In Torque Converter Housing Using Bearing Cup Installer 307-576
Courtesy of FORD MOTOR CO.
Install the differential bearing preload shim in the torque converter housing.

Fig 6: Installing Differential Bearing Preload Shim In Torque Converter Housing
Courtesy of FORD MOTOR CO.
Install a new differential bearing race on the Bearing Cup Installer 307-576.

Fig 7: Installing Differential Bearing Race On Bearing Cup Installer 307-576
Courtesy of FORD MOTOR CO.

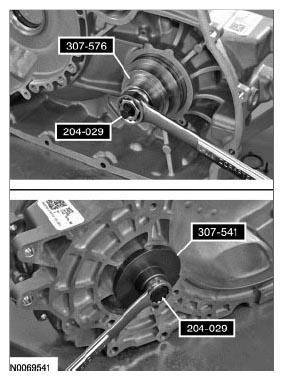

Using the Bearing Cup Installer 307-576, Transfer Gear Bearing Installer 307-541 and the Drawbar 204-029, press the differential bearing cup in the torque converter housing.

Fig 8: Pressing Differential Bearing Cup In Torque Converter Housing
