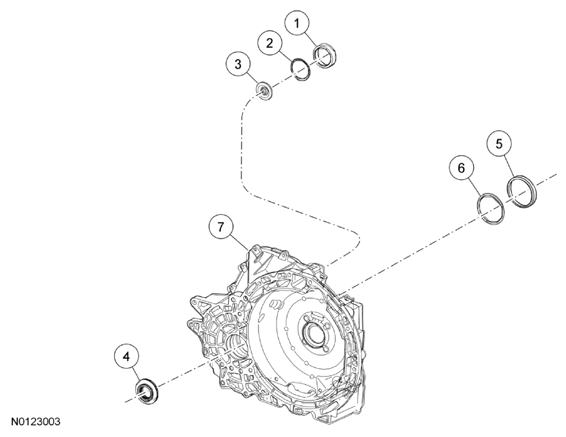

Exploded View: Notes
| Item | Part Number | Description |
|---|---|---|
| 1 | 7H344 | Transfer shaft roller bearing cup |
| 2 | 7H367 | Transfer shaft roller bearing shim |
| 3 | 7L276 | Transfer shaft tube fluid dam |
| 4 | 1177 | Halfshaft seal (Front Wheel Drive (FWD) only) |
| 5 | 4222 | Differential bearing cup |
| 6 | 4222 | Differential roller bearing shim |
| 7 | 7005 | Torque converter housing |
