Exploded View: Disassembly

  1. Inspect the transfer shaft bearings for damage or excessive wear. Install new if necessary.
    Fig 1: Locating Transfer Shaft Bearings
    G06068424Courtesy of FORD MOTOR CO.
  2. Install the Bearing Puller 205-D064 on the bearing.

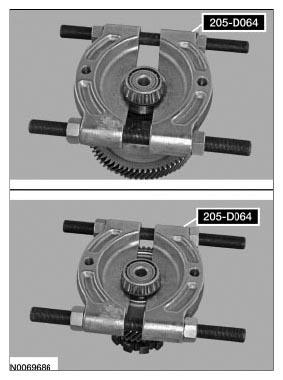

    Fig 2: Installing Bearing Puller 205-D064 On Bearing
    G06068425Courtesy of FORD MOTOR CO.
  3. Using a press, remove bearings from the transfer shaft assembly.

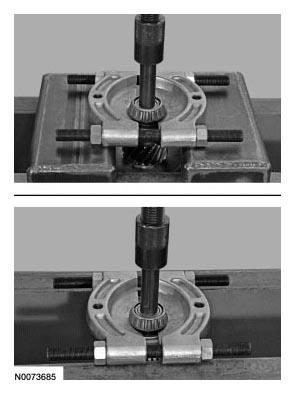

    Fig 3: Removing Bearings From Transfer Shaft Assembly Using Suitable Press
    G06076271Courtesy of FORD MOTOR CO.
  4. Inspect the transfer shaft assembly for damage.
    1. Inspect the park pawl wheel for damage and install new, if necessary.
    2. Inspect the transfer shaft and transfer shaft input gear for damage and install new, if necessary.

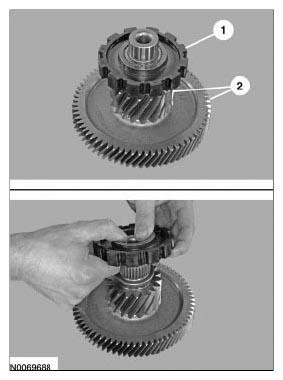

      Fig 4: Identifying Park Pawl Wheel And Transfer Shaft Input Gear
      G06068427Courtesy of FORD MOTOR CO.
